SLU16CH036-24-G4-M16-1024
Specifications:
- 0.630 in Frame Size
- 0.353 A Rated Current
- 2.8322 oz-in Rated Torque
- 24 VDC Nominal Voltage
- 2.030 in Length
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Specifications
Motor Specifications
Frame Size | 0.630 in |
Motor Type | Motor + Encoder + Gearhead |
Weight | 0.15 lbs |
Number of pole | 2 |
Number of Phases | 3 |
Certification | RoHS |
Motor Values (At Nominal Speed)
Nominal Voltage | 24 VDC |
No Load Speed | 3848 RPM |
No Load Current | 115 mA |
Nominal Speed | 3165 RPM |
Nominal Torque (Max Cont. Torque) | 5.098 oz-in |
Nominal Current (Max Cont. Current) | 0.76 A |
Rated Speed | 3340 RPM |
Rated Torque | 2.8322 oz-in |
Rated Current | 0.353 A |
Stall Torque | 30.5882 oz-in |
Stall Current | 3.81 A |
Max. Efficiency | 72% |
Motor Characteristics
Terminal Resistance | 6.3 ohm |
Terminal Inductance | 0.41 mH |
Speed/Torque Gradient | 35.9694 RPM/oz-in |
Speed Constant | 620 RPM/V |
Mechanical Time Constant | 1.49 ms |
Rotor Inertia | 0.003 oz-in² |
Motor Mechanical Data
Radial play | 0.004 |
Max. Radial Load | 11.24 lbf |
Distance From Flange For Radial Load | 5 in |
Max Force For Press Fit | 8.992 lbf |
Max Speed (Mechanical) | 7500 RPM |
Motor Thermal Data
Ambient Temperature | -40 °F to 185.00 °F |
Insulation Class | F |
Thermal time constant motor | 525 s |
Thermal time constant winding | 0.72 s |
Gearhead Specifications
Type Of Gearhead | Planetary Gearhead |
Gearhead Reduction Ratio | 4 |
Nominal Reduction Ratio | 3.95 |
Absolute Reduction Ratio | 75/19 |
Number Of Stages | 1 |
Average Backlash (No Load) | 1.5 |
Encoder Specifications
Counts Per Turn | 1024 |
Dimensions

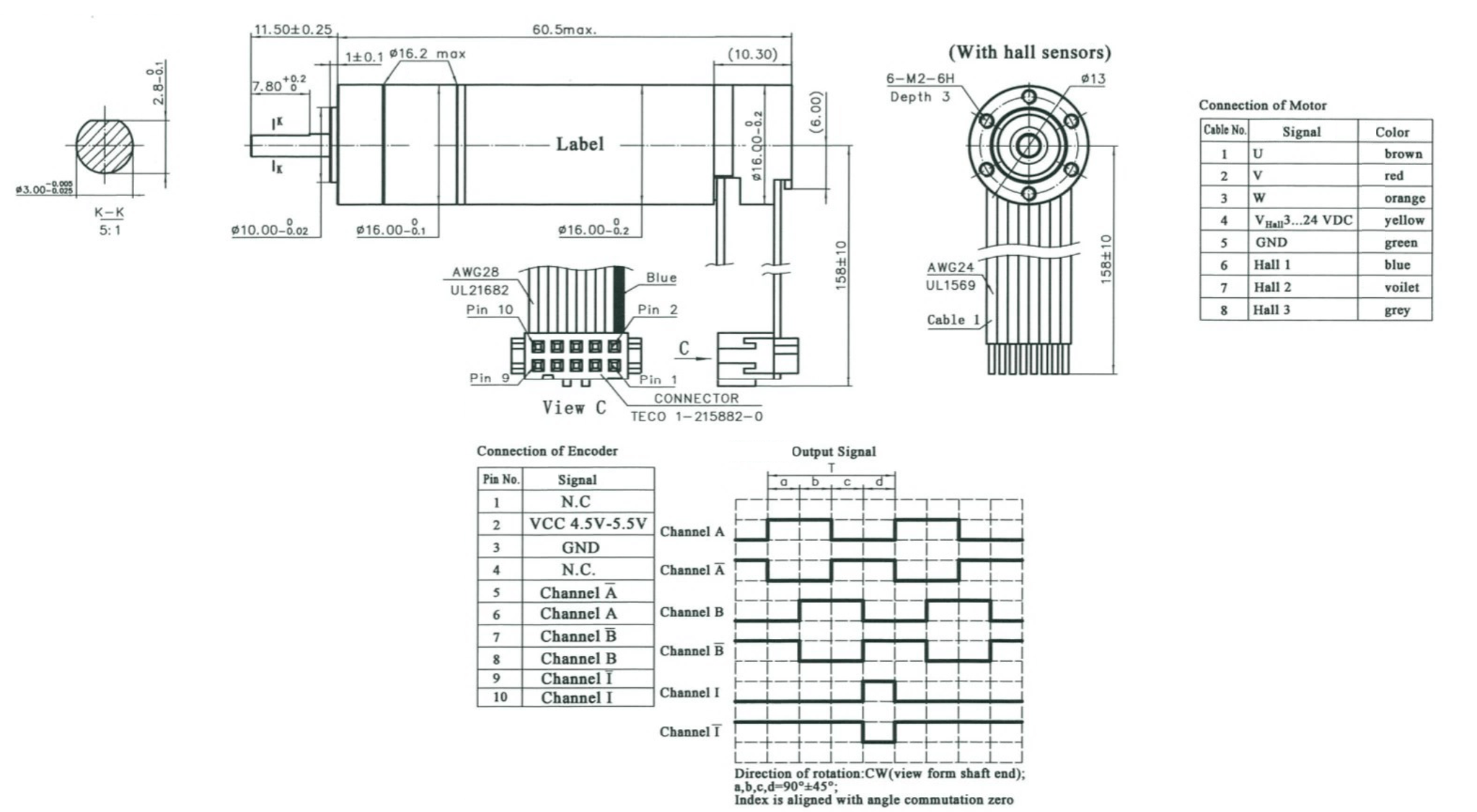

Model | DIM. A (length) in |
---|---|
SLU16CH036-24-G4-M16-1024 | 2.030 in |
Performance Curve
SLU16CH036 Series
