SLU16CH036 SeriesSLU16CH036-24-G138-M16-1024Slotless BLDC Motor
Specifications:
- 0.630 in Frame Size
- 0.32 A Rated Current
- 73.6382 oz-in Rated Torque
- 24 VDC Nominal Voltage
- 2.770 in Length
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Unit Price:
$354.00
Inventory:
0 Available
Part Number:
SLU16CH036-24-G138-M16-1024
Looking For Higher Volume?
Specifications
Motor Specifications
| Frame Size | 0.630 in |
| Motor Type | Motor + Encoder + Gearhead |
| Weight | 0.181 lbs |
| Number of pole | 2 |
| Number of Phases | 3 |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 24 VDC |
| No Load Speed | 112.4 RPM |
| No Load Current | 93 mA |
| Nominal Speed | 92 RPM |
| Nominal Torque (Max Cont. Torque) | 73.6382 oz-in |
| Nominal Current (Max Cont. Current) | 0.76 A |
| Rated Speed | 99 RPM |
| Rated Torque | 73.6382 oz-in |
| Rated Current | 0.32 A |
| Stall Torque | 919.0614 oz-in |
| Stall Current | 3.81 A |
| Max. Efficiency | 64% |
Motor Characteristics
| Terminal Resistance | 6.3 ohm |
| Terminal Inductance | 0.41 mH |
| Speed/Torque Gradient | 35.9694 RPM/oz-in |
| Speed Constant | 620 RPM/V |
| Mechanical Time Constant | 1.49 ms |
| Rotor Inertia | 0.003 oz-in² |
Motor Mechanical Data
| Radial play | 0.004 |
| Max. Radial Load | 11.24 lbf |
| Distance From Flange For Radial Load | 5 in |
| Max Force For Press Fit | 8.992 lbf |
| Max Speed (Mechanical) | 217 RPM |
Motor Thermal Data
| Ambient Temperature | -40 °F to 185.00 °F |
| Insulation Class | F |
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal resistance (Housing-Ambient) | 68.90 °F/W |
| Thermal resistance (Winding-Housing) | 37.94 °F/W |
| Thermal time constant motor | 525 s |
| Thermal time constant winding | 0.72 s |
Gearhead Specifications
| Type Of Gearhead | Planetary Gearhead |
| Gearhead Reduction Ratio | 138 |
| Nominal Reduction Ratio | 138.28 |
| Number Of Stages | 3 |
| Average Backlash (No Load) | 1.5 |
Encoder Specifications
| Counts Per Turn | 1024 |

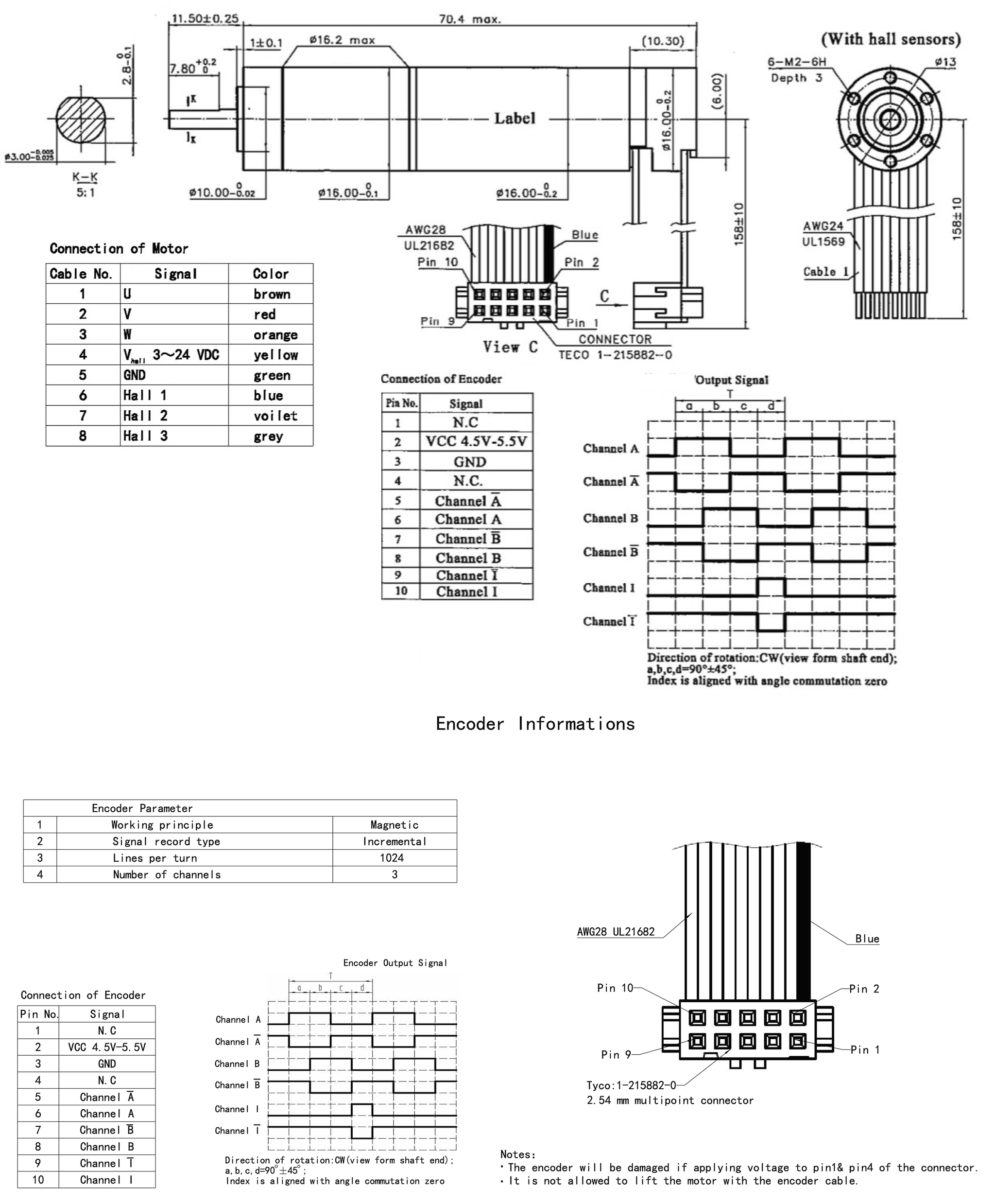

Dimensions
| Model | DIM. A (length) in |
|---|---|
| SLU16CH036-24-G138-M16-1024 | 2.770 in |
Performance Curve
SLU16CH036 Series
Downloads
SLU16CH036-24-G138-M16-1024 Configured Datasheet (PDF)
DownloadGet the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
