SLU16CH036 Series
SLU16CH036-12-G83
Slotless BLDC Motor

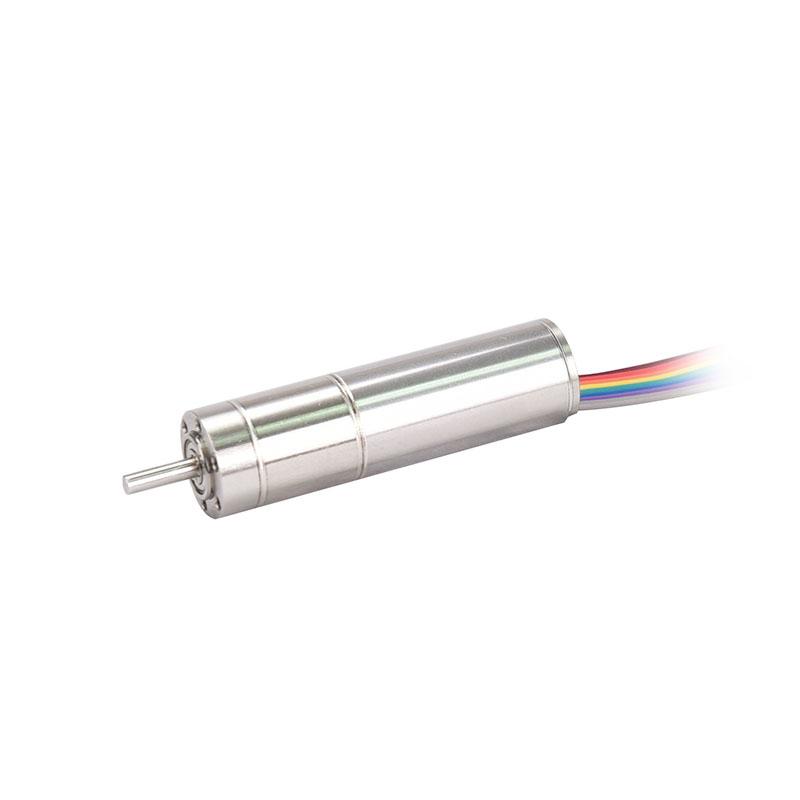

Featured product media

Quick Facts

SLU16CH036-12-G83 Slotless BLDC Motors

Specifications:
  • 0.630 in Frame Size
  • 0.97 A Rated Current
  • 73.0718 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 2.420 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.630 in
Motor TypeMotor + Gearhead
Weight0.168 lbs
Number of pole2
Number of Phases3
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 181.5 RPM
No Load Current200 mA
Nominal Speed148 RPM
Nominal Torque (Max Cont. Torque)73.6382 oz-in
Nominal Current (Max Cont. Current)1.49 A
Rated Speed133 RPM
Rated Torque73.0718 oz-in
Rated Current0.97 A
Stall Torque523.9641 oz-in
Stall Current7.27 A
Max. Efficiency64.8%

Motor Characteristics

Terminal Resistance1.65 ohm
Terminal Inductance0.102 mH
Speed/Torque Gradient 37.6688 RPM/oz-in
Speed Constant1240 RPM/V
Mechanical Time Constant1.56 ms
Rotor Inertia0.003 oz-in²

Motor Mechanical Data

Radial play0.004
Max. Radial Load11.24 lbf
Distance From Flange For Radial Load5 in
Max Force For Press Fit8.992 lbf
Max Speed (Mechanical)362 RPM

Motor Thermal Data

Ambient Temperature-40 °F to 185.00 °F
Insulation ClassF
Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal resistance (Housing-Ambient)68.90 °F/W
Thermal resistance (Winding-Housing)37.94 °F/W
Thermal time constant motor525 s
Thermal time constant winding0.72 s

Gearhead Specifications

Type Of GearheadPlanetary Gearhead
Gearhead Reduction Ratio83
Nominal Reduction Ratio82.7
Number Of Stages3

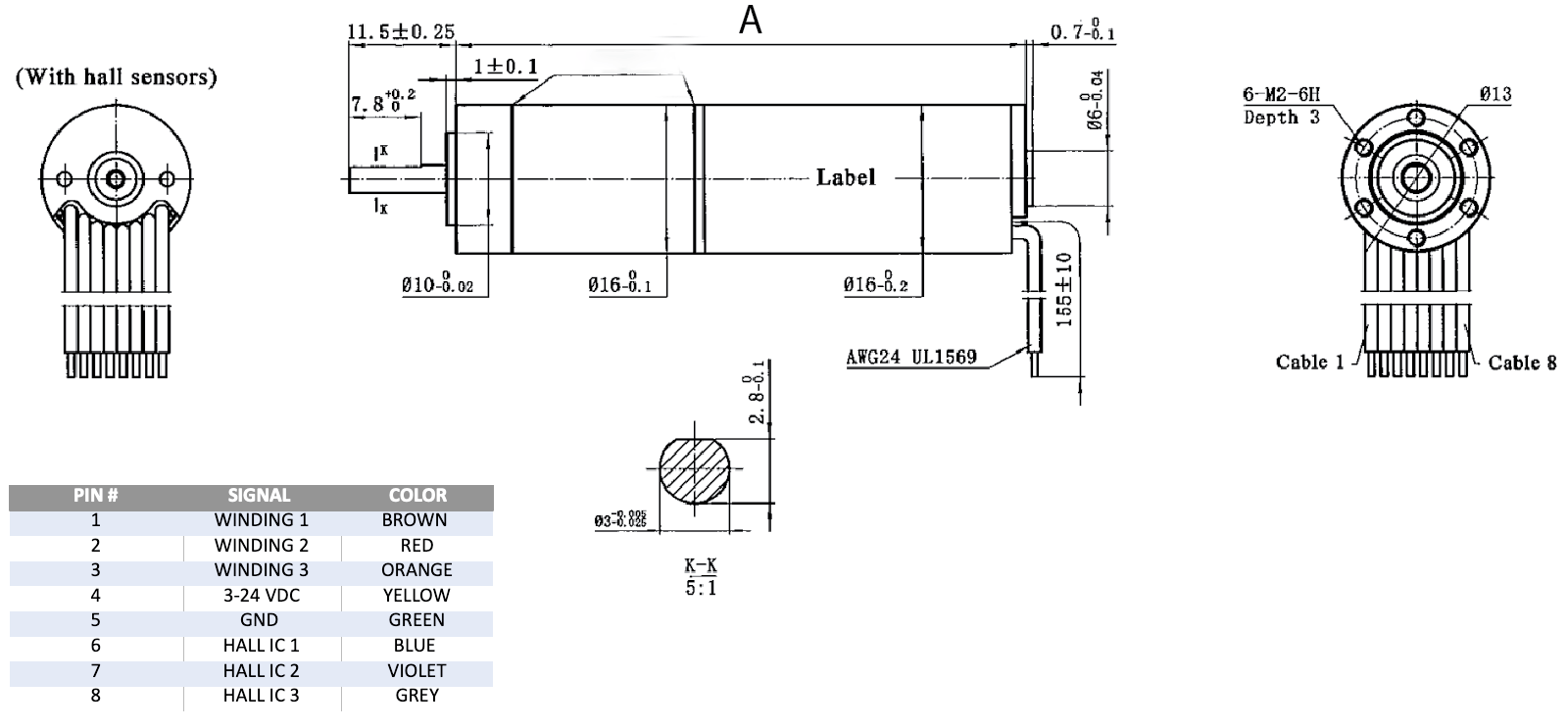

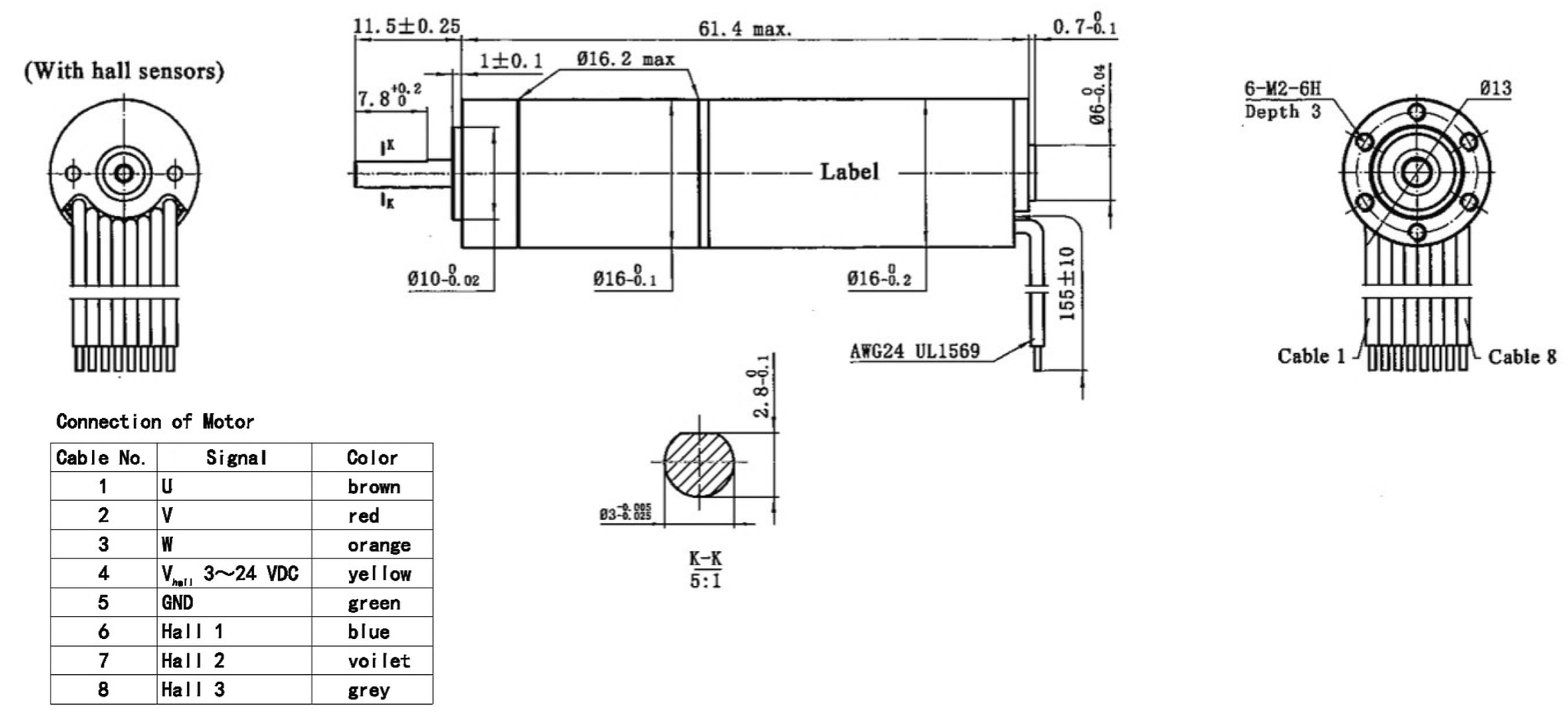

Dimensions

ModelDIM. A (length) in MAX
SLU16CH036-12-G832.420 in

Performance Curve

SLU16CH036 Series

Downloads

SLU16CH036-12-G83 Configured Datasheet (PDF)
