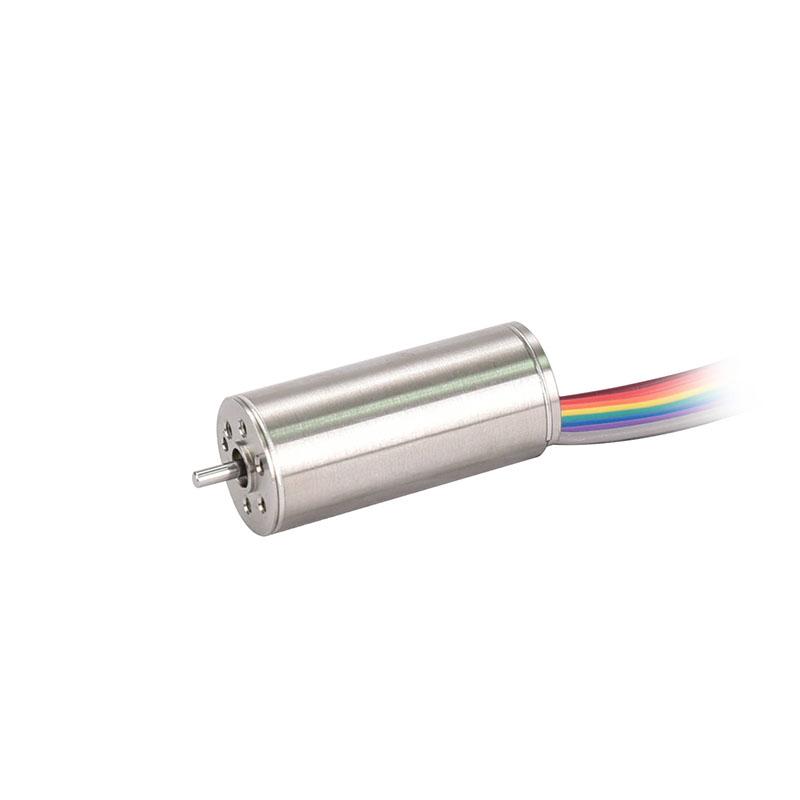

SLU16CH036 SeriesSLU16CH036-12Slotless BLDC Motor
Quick Facts

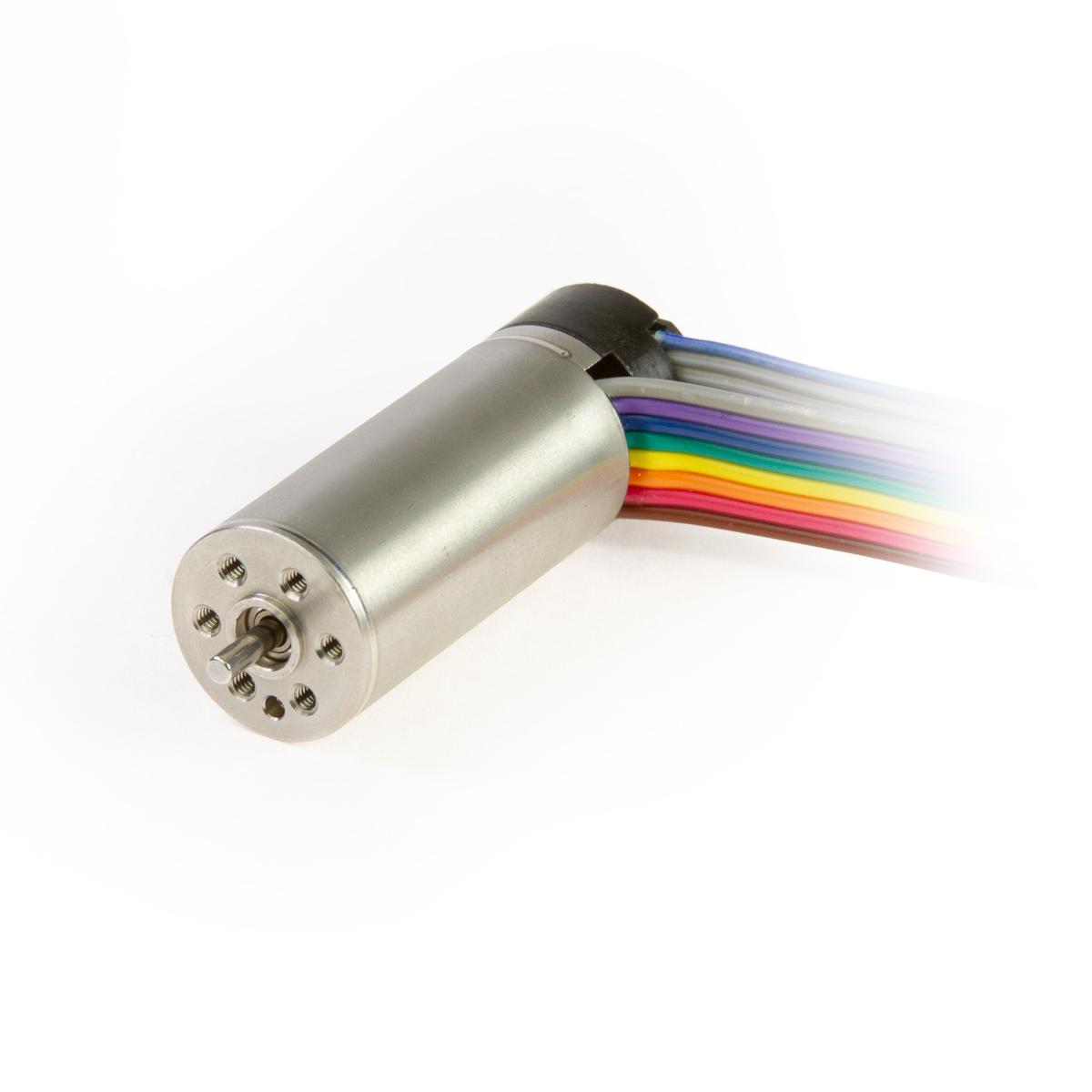

SLU16CH036-12 Series Slotless BLDC Motors
SLU16CH036-12 Series Slotless BLDC Motors
Specifications:
- 0.630 in Frame Size
- 0.97 A Rated Current
- 1.1046 oz-in Rated Torque
- 12 VDC Nominal Voltage
- 1.400 in Length
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Specifications
Motor Specifications
| Frame Size | 0.630 in |
| Motor Type | Motor Only |
| Weight | 0.099 lbs |
| Number of pole | 2 |
| Number of Phases | 3 |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 12 VDC |
| No Load Speed | 15000 RPM |
| No Load Current | 165 mA |
| Nominal Speed | 12280 RPM |
| Nominal Torque (Max Cont. Torque) | 1.4444 oz-in |
| Nominal Current (Max Cont. Current) | 1.49 A |
| Rated Speed | 11000 RPM |
| Rated Torque | 1.1046 oz-in |
| Rated Current | 0.97 A |
| Stall Torque | 7.9303 oz-in |
| Stall Current | 7.27 A |
| Max. Efficiency | 81% |
Motor Characteristics
| Terminal Resistance | 1.65 ohm |
| Terminal Inductance | 0.102 mH |
| Speed/Torque Gradient | 37.6688 RPM/oz-in |
| Speed Constant | 1240 RPM/V |
| Mechanical Time Constant | 1.56 ms |
| Rotor Inertia | 0.003 oz-in² |
Motor Mechanical Data
| Radial play | Preloaded |
| Max. Radial Load | 1.349 lbf |
| Distance From Flange For Radial Load | 5 in |
| Max Force For Press Fit | 4.046 lbf |
| Max Speed (Mechanical) | 30000 RPM |
Motor Thermal Data
| Ambient Temperature | -40 °F to 212.00 °F |
| Insulation Class | F |
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal resistance (Housing-Ambient) | 68.90 °F/W |
| Thermal resistance (Winding-Housing) | 37.94 °F/W |
| Thermal time constant motor | 525 s |
| Thermal time constant winding | 0.72 s |

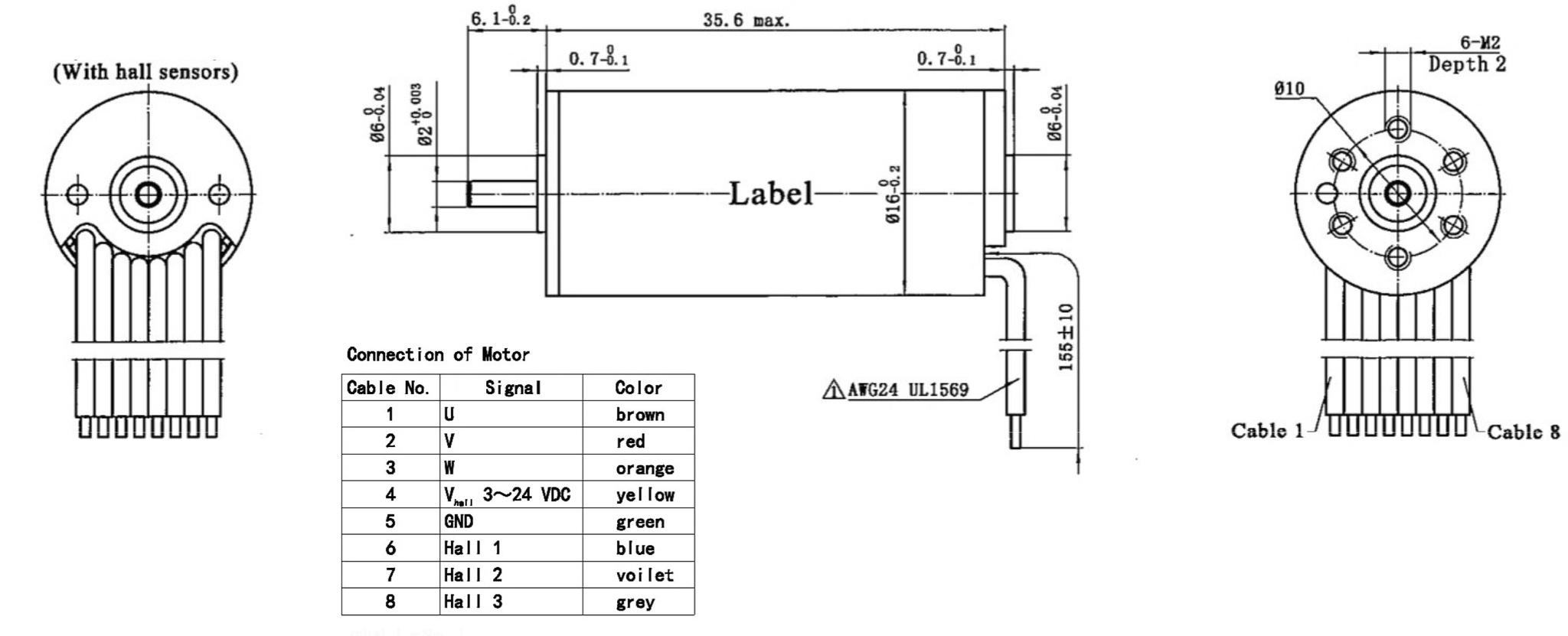

Dimensions

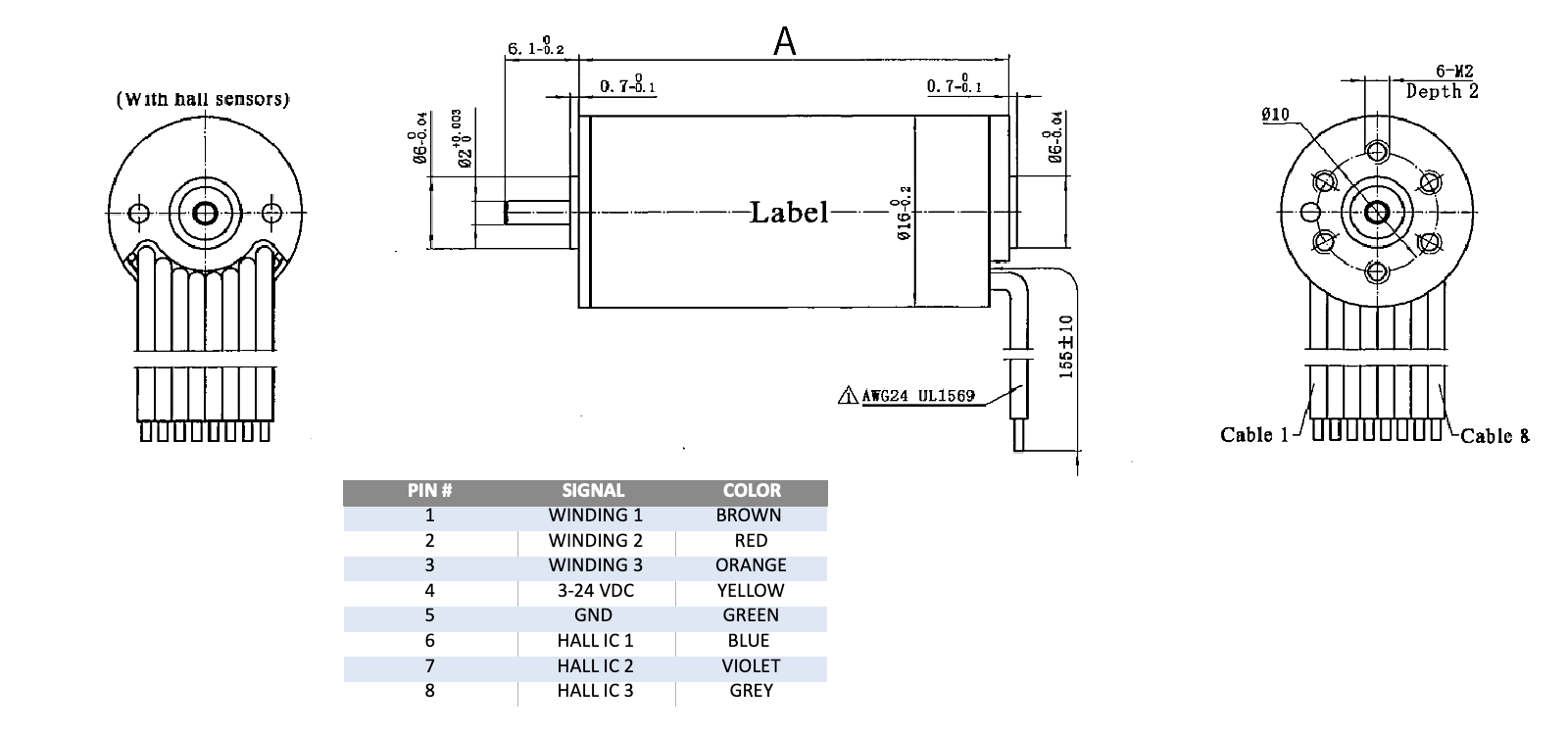

| Model | DIM. A (length) in |
|---|---|
| SLU16CH036-12 | 1.400 in |
Performance Curve
SLU16CH036 Series
Downloads
SLU16CH036-12 Configured Datasheet (PDF)
