SLU16CH024 Series
SLU16CH024-24-M16-1024
Slotless BLDC Motor

Featured product media

Quick Facts

SLU16CH024-24-M16-1024 Slotless BLDC Motors

Specifications:
  • 0.630 in Frame Size
  • 0.154 A Rated Current
  • 0.354 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 1.300 in Length

Specifications

Motor Specifications

Frame Size0.630 in
Motor TypeMotor + Encoder
Weight0.079 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 15079 RPM
No Load Current22 mA
Nominal Speed8800 RPM
Nominal Torque (Max Cont. Torque)0.354 oz-in
Rated Speed9109 RPM
Rated Torque0.354 oz-in
Rated Current0.154 A
Stall Torque1.0904 oz-in
Stall Current0.5 A
Max. Efficiency62.3%

Motor Characteristics

Terminal Resistance48.1 ohm
Terminal Inductance1.22 mH
Speed/Torque Gradient 277.701 RPM/oz-in
Speed Constant624 RPM/V
Mechanical Time Constant6.16 ms

Motor Mechanical Data

Max. Radial Load1.349 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Thermal time constant motor390 s

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

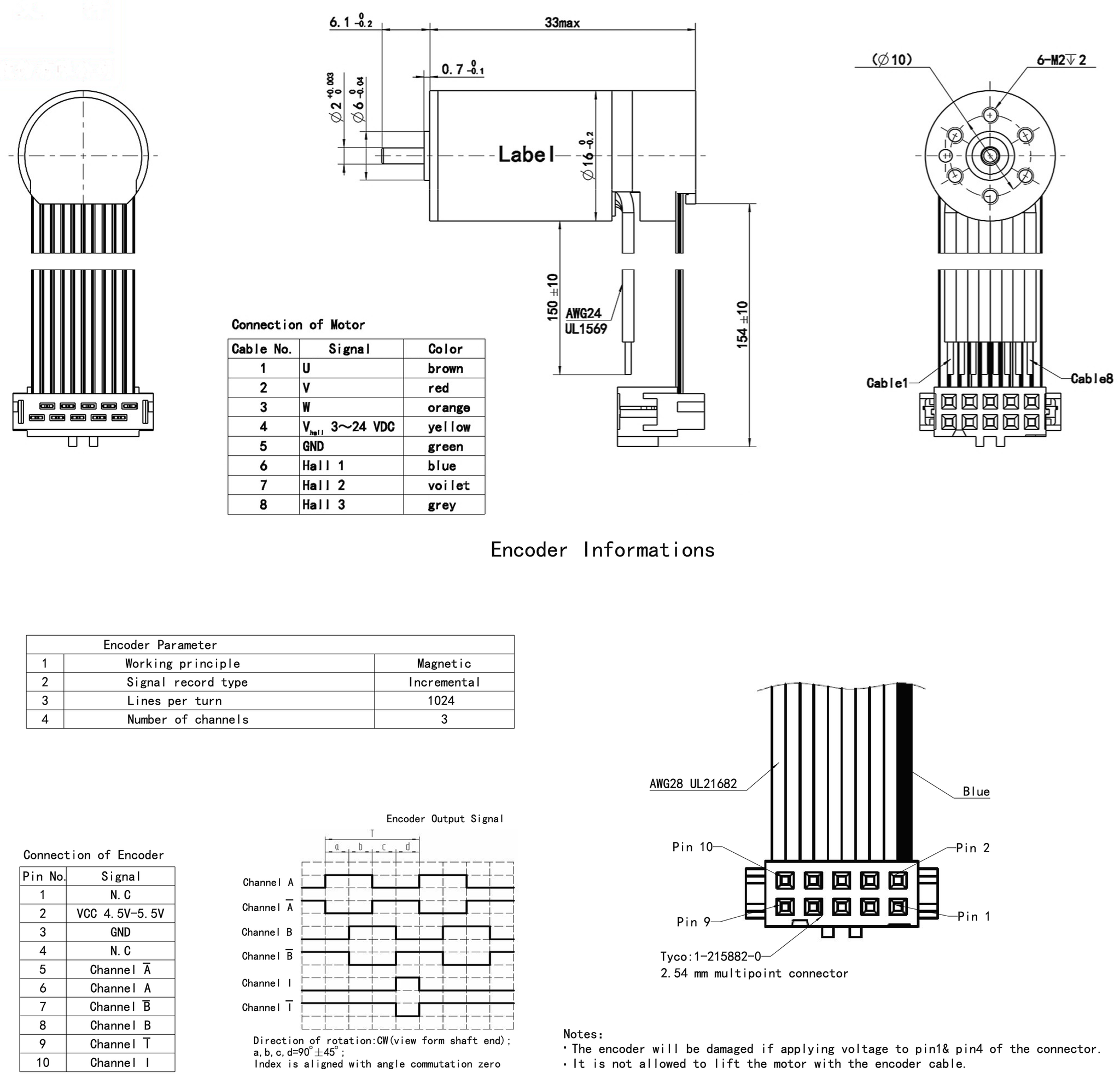

Dimensions

ModelDIM. A (length) in MAX
SLU16CH024-24-M16-10241.300 in

Performance Curve

SLU16CH024-24-M16-1024
@24 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU16CH024 Series

Downloads

SLU16CH024-24-M16-1024 Configured Datasheet (PDF)
SLU16CH024-24-M16-1024 (3D model) (STP)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
