SLU16CH024 Series
SLU16CH024-24-G546-M16-1024
Slotless BLDC Motor

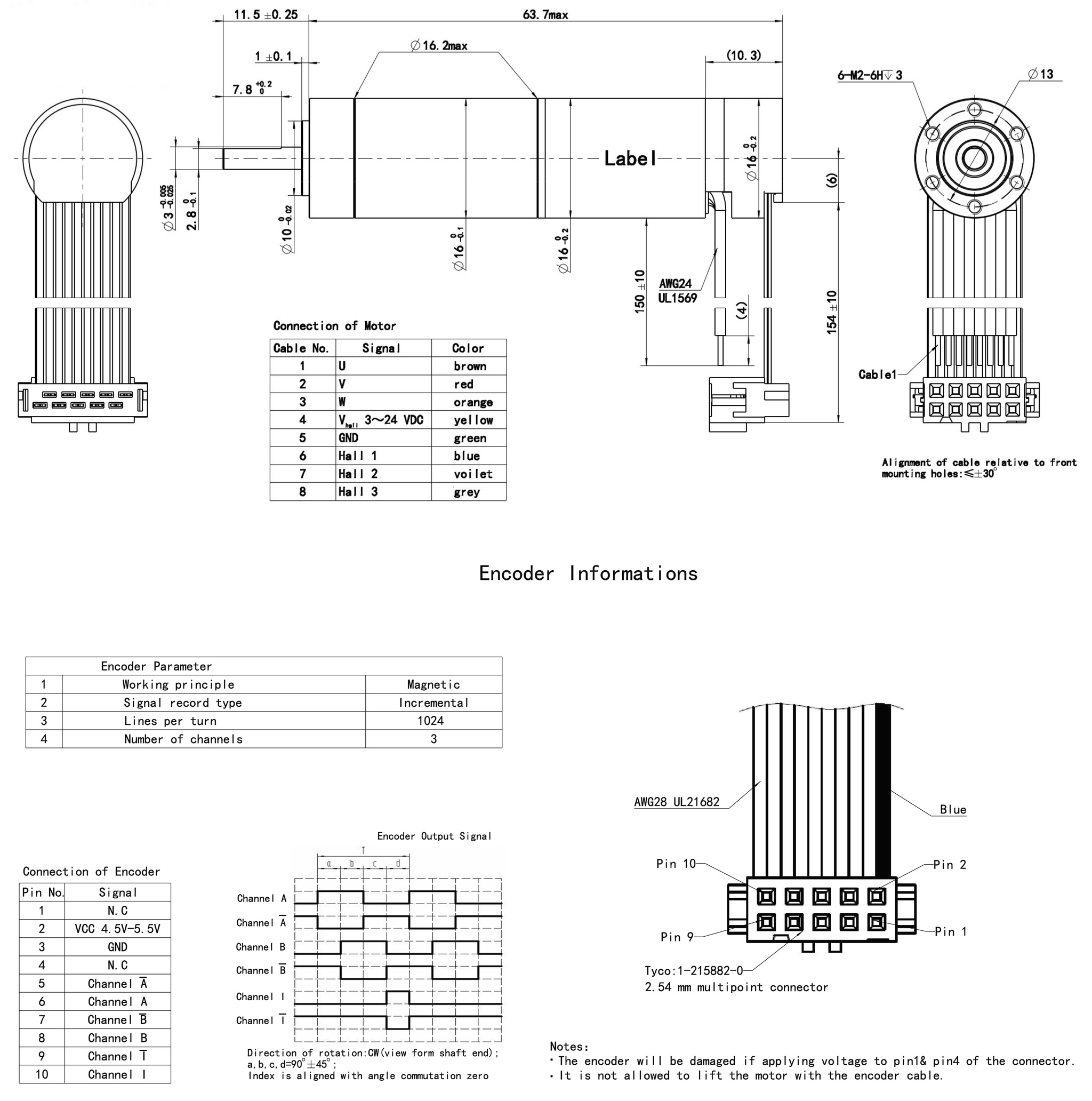

Featured product media

Quick Facts

SLU16CH024-24-G546-M16-1024 Slotless BLDC Motors

Specifications:
  • 0.630 in Frame Size
  • 0.122 A Rated Current
  • 92.0478 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 2.510 in Length

Specifications

Motor Specifications

Frame Size0.630 in
Motor TypeMotor + Encoder + Gearhead
Weight0.161 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 28 RPM
No Load Current34 mA
Nominal Speed16 RPM
Rated Speed19.1 RPM
Rated Torque92.0478 oz-in
Rated Current0.122 A
Stall Torque427.668 oz-in
Stall Current0.5 A
Max. Efficiency44.7%

Motor Characteristics

Terminal Resistance48.1 ohm
Terminal Inductance1.22 mH
Speed/Torque Gradient 277.701 RPM/oz-in
Speed Constant624 RPM/V
Mechanical Time Constant6.16 ms

Motor Mechanical Data

Max. Radial Load11.24 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor390 s

Gearhead Specifications

Gearhead Reduction Ratio546
Nominal Reduction Ratio546

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

Performance Curve

SLU16CH024-24-G546-M16-1024
@24 VDC, 546:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU16CH024 Series

Downloads

SLU16CH024-24-G546-M16-1024 Configured Datasheet (PDF)
