SLU16CH024 SeriesSLU16CH024-12-G83Slotless BLDC Motor
Quick Facts

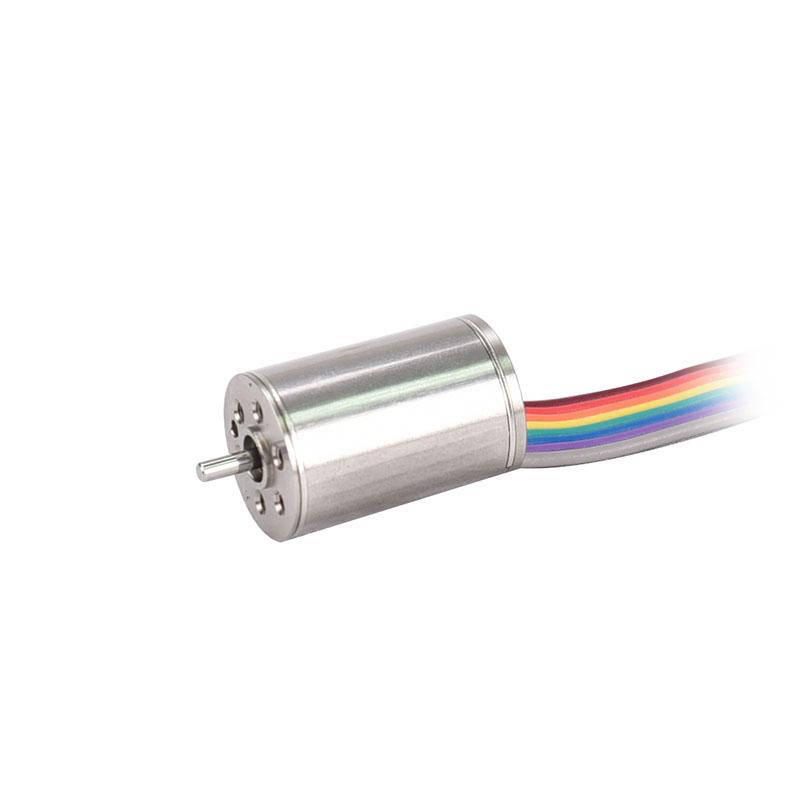

SLU16CH024-12-G83 Slotless BLDC Motors
SLU16CH024-12-G83 Slotless BLDC Motors
Specifications:
- 0.630 in Frame Size
- 0.323 A Rated Current
- 23.4226 oz-in Rated Torque
- 12 VDC Nominal Voltage
- 1.970 in Length
Specifications
Motor Specifications
| Frame Size | 0.630 in |
| Motor Type | Motor + Gearhead |
| Weight | 0.132 lbs |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 12 VDC |
| No Load Speed | 184 RPM |
| No Load Current | 45 mA |
| Nominal Speed | 113 RPM |
| Rated Speed | 107 RPM |
| Rated Torque | 23.4226 oz-in |
| Rated Current | 0.323 A |
| Stall Torque | 82.9846 oz-in |
| Stall Current | 1.16 A |
| Max. Efficiency | 52.8% |
Motor Characteristics
| Terminal Resistance | 10.35 ohm |
| Terminal Inductance | 0.315 mH |
| Speed/Torque Gradient | 239.749 RPM/oz-in |
| Speed Constant | 1250 RPM/V |
| Mechanical Time Constant | 5.32 ms |
Motor Mechanical Data
| Max. Radial Load | 11.24 lbf |
Motor Thermal Data
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal time constant motor | 390 s |
| Thermal time constant winding | 0.75 s |
Gearhead Specifications
| Gearhead Reduction Ratio | 83 |
| Nominal Reduction Ratio | 83 |

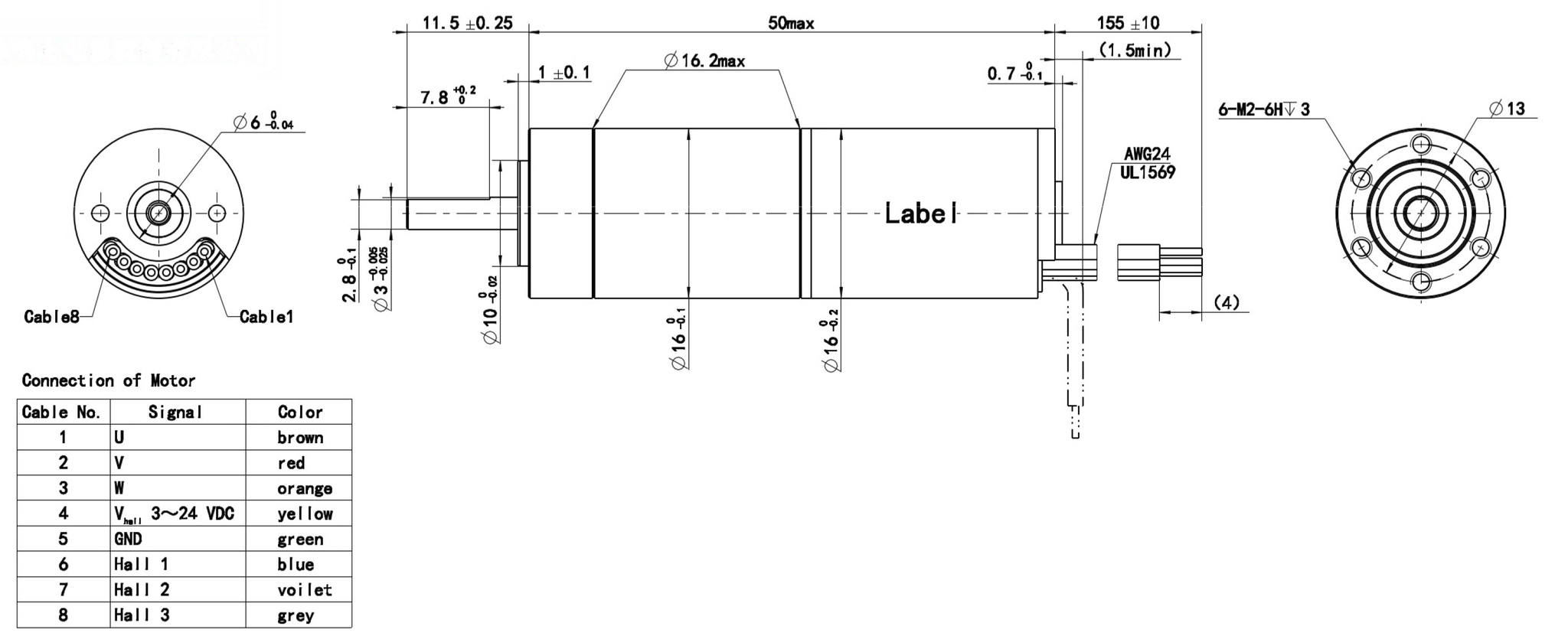

Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| SLU16CH024-12-G83 | 1.970 in |
Performance Curve
SLU16CH024-12-G83
@12 VDC, 83:1 reduction
- Speed
- Current
- Power
- Efficiency
- Operating Area
- Maximum Continuous Torque
Generate new cureve based on different VDC
SLU16CH024 Series
Downloads
SLU16CH024-12-G83 Configured Datasheet (PDF)
