SLU13CH038 Series
SLU13CH038-36-MH13-1024

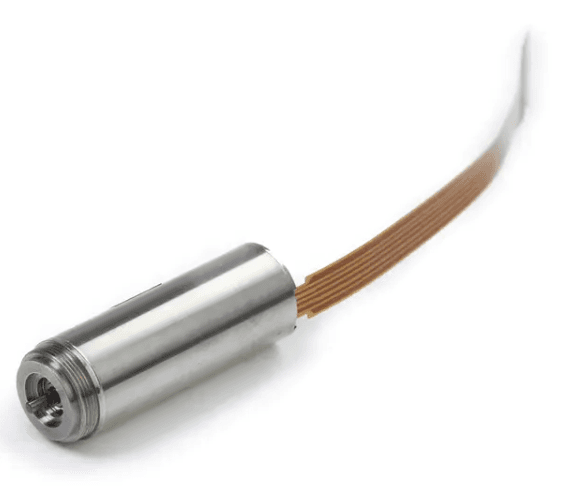

Slotless BLDC Motor

Name: SLU13CH038-36-MH13-1024
Brand: Lin Engineering
SKU: SLU13CH038-36-MH13-1024
Price: 308 USD
Availability: PreOrder

Quick Facts

SLU13CH038-36-MH13-1024 Slotless BLDC Motors

Specifications:

0.510 in Frame Size
0.25 A Rated Current
0.4248 oz-in Rated Torque
36 VDC Nominal Voltage
1.730 in Length

Features and Benefits:

Extremely quick response and high acceleration
Quiet Operation
High power density

Specifications

Motor Specifications

Frame Size	0.510 in
Motor Type	Motor + Encoder
Weight	0.087 lbs
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	36 VDC
No Load Speed	25640 RPM
No Load Current	84 mA
Nominal Speed	21420 RPM
Rated Speed	23100 RPM
Rated Torque	0.4248 oz-in
Rated Current	0.25 A
Stall Torque	0.0047 oz-in
Stall Current	2.46 A
Max. Efficiency	66%

Motor Characteristics

Terminal Resistance	14.17 ohm
Terminal Inductance	0.267 mH
Speed/Torque Gradient	106.2089 RPM/oz-in
Speed Constant	702 RPM/V
Mechanical Time Constant	2.57 ms
Rotor Inertia	0.002 oz-in²

Motor Mechanical Data

Max. Radial Load

0.899 lbf

Motor Thermal Data

Max winding temperature	311.00 °F
Max winding temperature	311.00 °F
Thermal time constant motor	350 s
Thermal time constant winding	0.9 s

Encoder Specifications

Encoder Type

1024-line incremental magnetic encoder

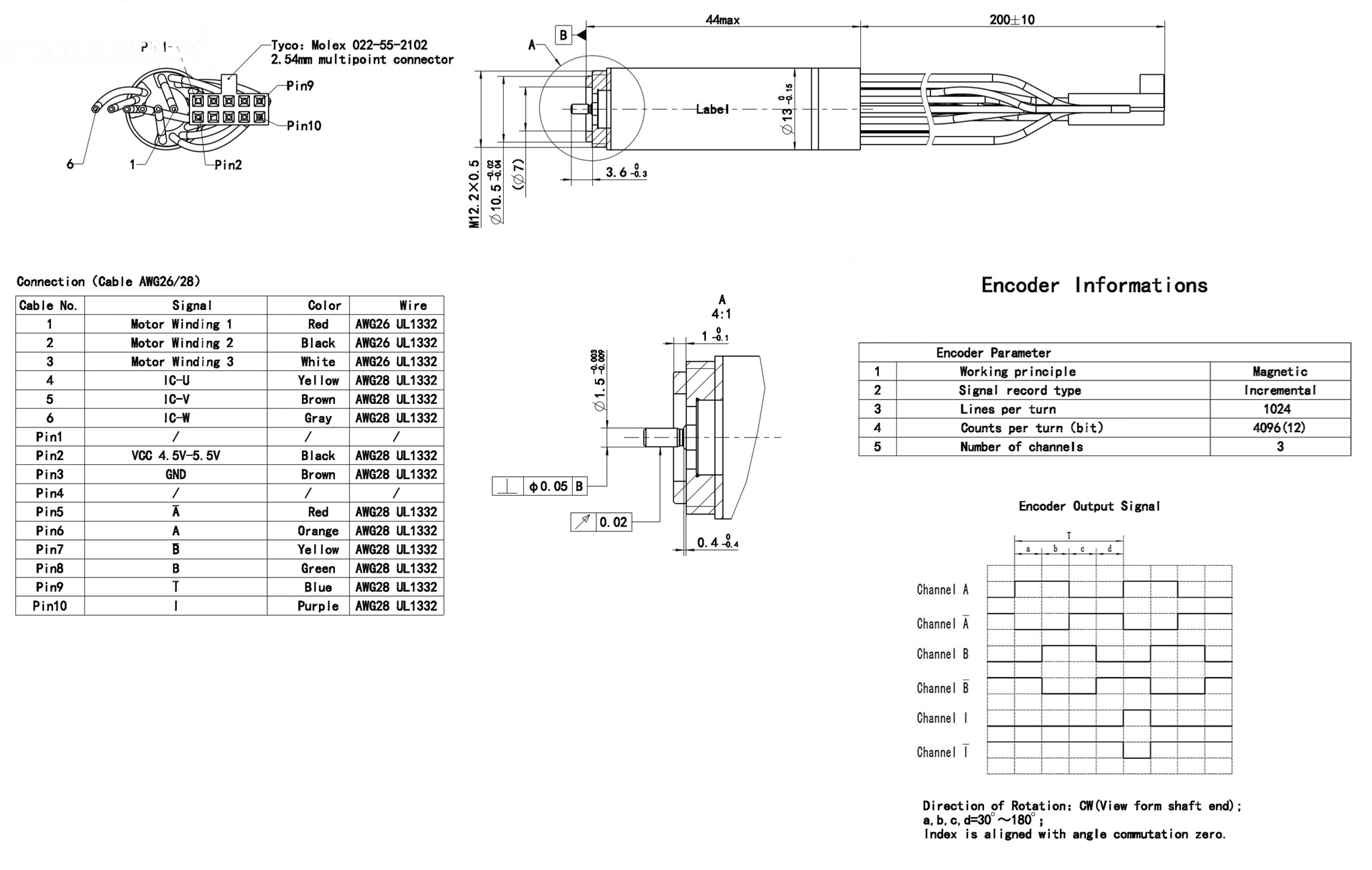

Dimensions

Model	DIM. A (length) in MAX
SLU13CH038-36-MH13-1024	1.730 in

Performance Curve

SLU13CH038-36-MH13-1024
^{@36 VDC}

Speed
Current
Power
Efficiency
Operating Area
Maximum Continuous Torque

Generate new cureve based on different VDC

SLU13CH038 Series

Downloads

SLU13CH038-36-MH13-1024 Configured Datasheet (PDF)
