SLU13CH038 Series
SLU13CH038-36-G94
Slotless BLDC Motor

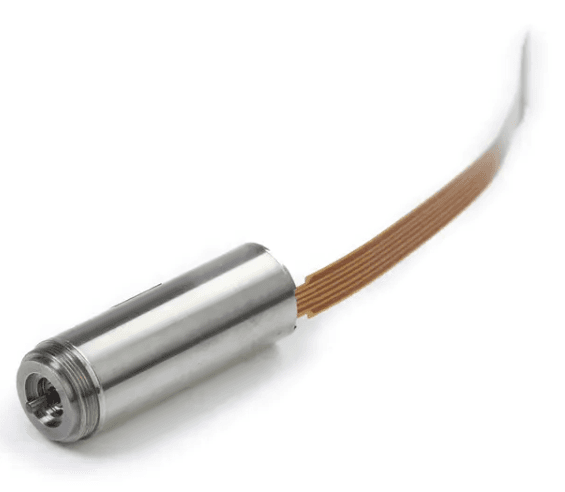

Featured product media

Quick Facts

SLU13CH038-36-G94 Slotless BLDC Motors

Specifications:
  • 0.510 in Frame Size
  • 0.25 A Rated Current
  • 32.5707 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 2.240 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.510 in
Motor TypeMotor + Gearhead
Weight0.1 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 172 RPM
No Load Current67.5 mA
Nominal Speed287 RPM
Rated Speed146 RPM
Rated Torque32.5707 oz-in
Rated Current0.25 A
Stall Torque0.2393 oz-in
Stall Current1.64 A
Max. Efficiency52.8%

Motor Characteristics

Terminal Resistance13.86 ohm
Terminal Inductance0.267 mH
Speed/Torque Gradient 106.2089 RPM/oz-in
Speed Constant702 RPM/V
Mechanical Time Constant2.55 ms

Motor Mechanical Data

Max. Radial Load8.992 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor350 s
Thermal time constant winding0.9 s

Gearhead Specifications

Gearhead Reduction Ratio94

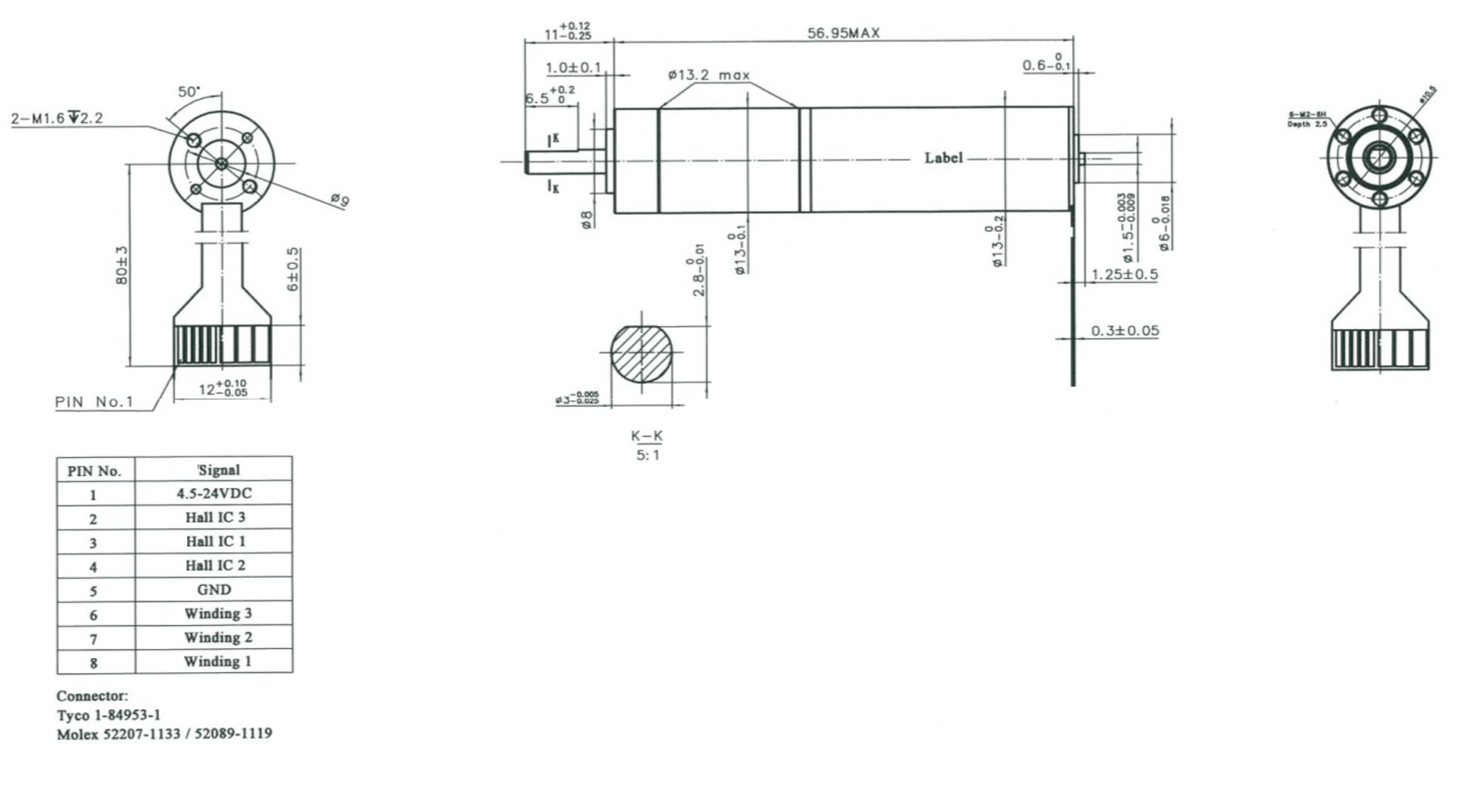

Dimensions

ModelDIM. A (length) in MAX
SLU13CH038-36-G942.240 in

Performance Curve

SLU13CH038-36-G94
@24 VDC, 94:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU13CH038 Series

Downloads

SLU13CH038-36-G94 Configured Datasheet (PDF)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
