SLU13CH038 Series

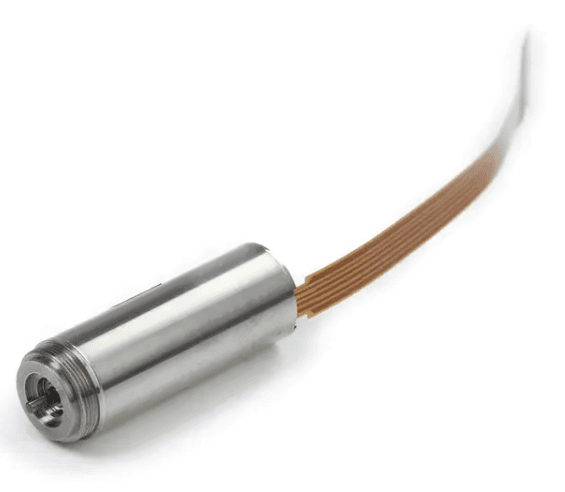

SLU13CH038-36-G19-MH13-1024
Slotless BLDC Motor

Name: SLU13CH038-36-G19-MH13-1024
Brand: Lin Engineering
SKU: SLU13CH038-36-G19-MH13-1024
Price: 430 USD
Availability: PreOrder

Quick Facts

SLU13CH038-36-G19-MH13-1024 Slotless BLDC Motors

Specifications:

0.510 in Frame Size
0.25 A Rated Current
6.5425 oz-in Rated Torque
24 VDC Nominal Voltage
2.380 in Length

Features and Benefits:

Extremely quick response and high acceleration
Quiet Operation
High power density

Specifications

Motor Specifications

Frame Size	0.510 in
Motor Type	Motor + Encoder + Gearhead
Weight	0.118 lbs
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	24 VDC
No Load Speed	888 RPM
No Load Current	67.5 mA
Nominal Speed	1421 RPM
Rated Speed	704.4 RPM
Rated Torque	6.5425 oz-in
Rated Current	0.25 A
Stall Torque	0.0486 oz-in
Stall Current	1.64 A
Max. Efficiency	59.3%

Motor Characteristics

Terminal Resistance	13.82 ohm
Terminal Inductance	0.267 mH
Speed/Torque Gradient	100.9693 RPM/oz-in
Speed Constant	702 RPM/V
Mechanical Time Constant	2.57 ms

Motor Mechanical Data

Max. Radial Load

8.992 lbf

Motor Thermal Data

Max winding temperature	311.00 °F
Max winding temperature	311.00 °F
Thermal time constant motor	350 s
Thermal time constant winding	0.9 s

Gearhead Specifications

Gearhead Reduction Ratio

Encoder Specifications

Encoder Type

1024-line incremental magnetic encoder

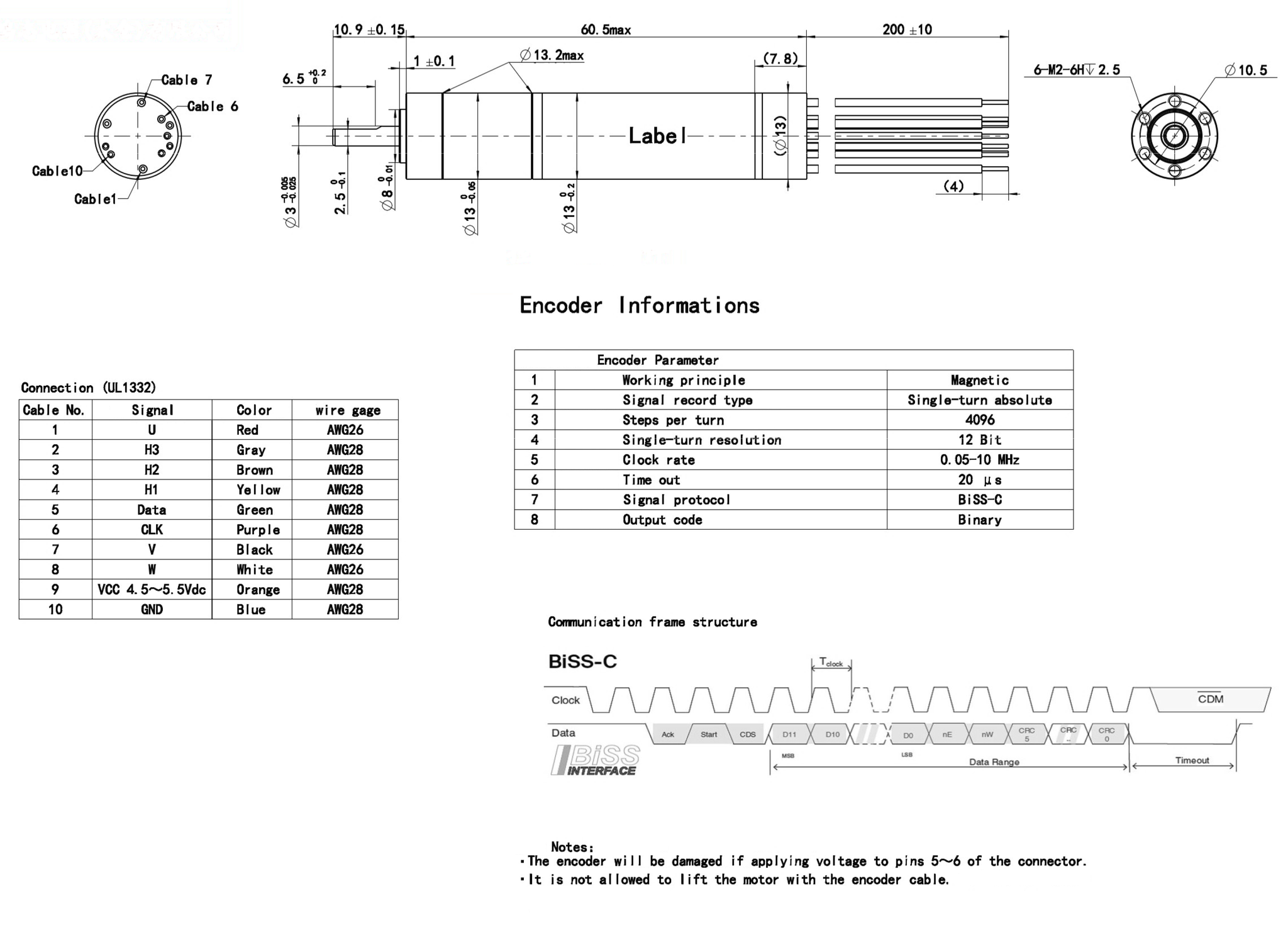

Dimensions

Model	DIM. A (length) in MAX
SLU13CH038-36-G19-MH13-1024	2.380 in

Performance Curve

SLU13CH038-36-G19-MH13-1024
^{@24 VDC, 19:1 reduction}

Speed
Current
Power
Efficiency
Operating Area
Maximum Continuous Torque

Generate new cureve based on different VDC
