SLU13CH038 Series
SLU13CH038-36-G131
Slotless BLDC Motor

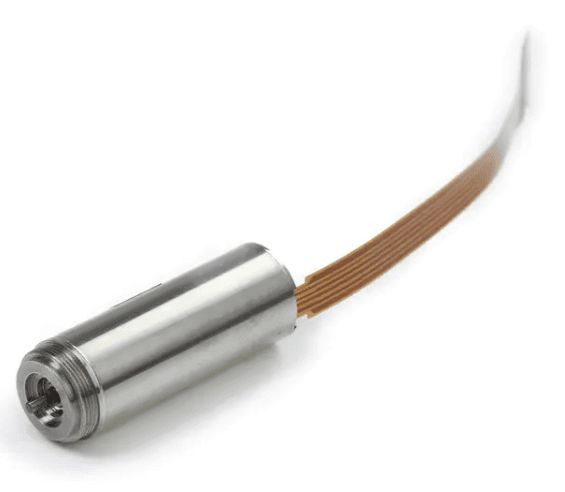

Featured product media

Quick Facts

SLU13CH038-36-G131 Slotless BLDC Motors

Specifications:
  • 0.510 in Frame Size
  • 0.25 A Rated Current
  • 38.915 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 2.260 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.510 in
Motor TypeMotor + Gearhead
Weight0.101 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 130 RPM
No Load Current67.5 mA
Nominal Speed206 RPM
Rated Speed103.5 RPM
Rated Torque38.915 oz-in
Rated Current0.25 A
Stall Torque0.2889 oz-in
Stall Current1.64 A
Max. Efficiency46.2%

Motor Characteristics

Terminal Resistance13.82 ohm
Terminal Inductance0.267 mH
Speed/Torque Gradient 100.9693 RPM/oz-in
Speed Constant702 RPM/V
Mechanical Time Constant2.57 ms

Motor Mechanical Data

Max. Radial Load8.992 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor350 s
Thermal time constant winding0.9 s

Gearhead Specifications

Gearhead Reduction Ratio131

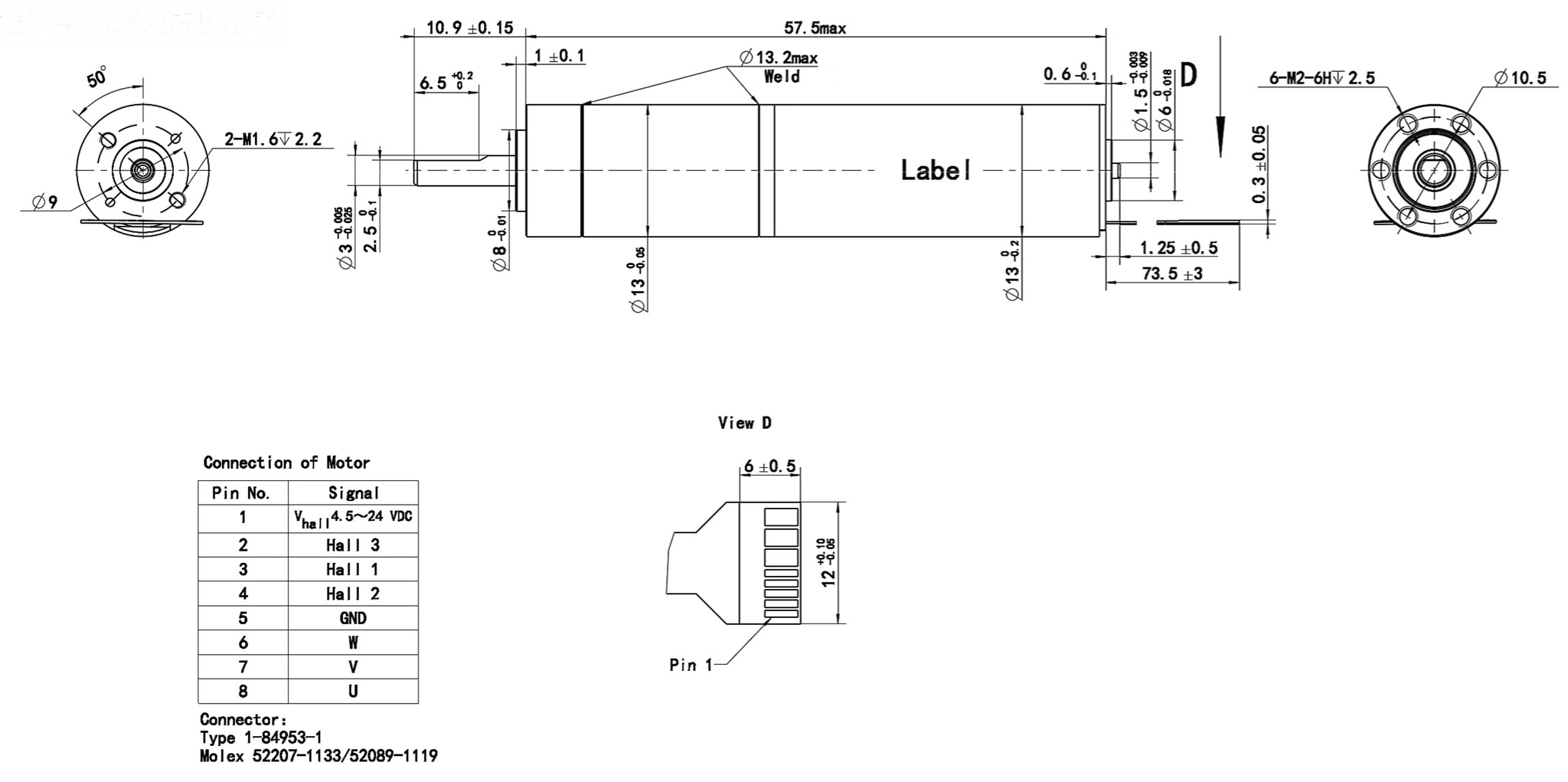

Dimensions

ModelDIM. A (length) in MAX
SLU13CH038-36-G1312.260 in

Performance Curve

SLU13CH038-36-G131
@24 VDC, 131:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU13CH038 Series

Downloads

SLU13CH038-36-G131 Configured Datasheet (PDF)
