SLU13CH038 Series
SLU13CH038-24-G131
Slotless BLDC Motor

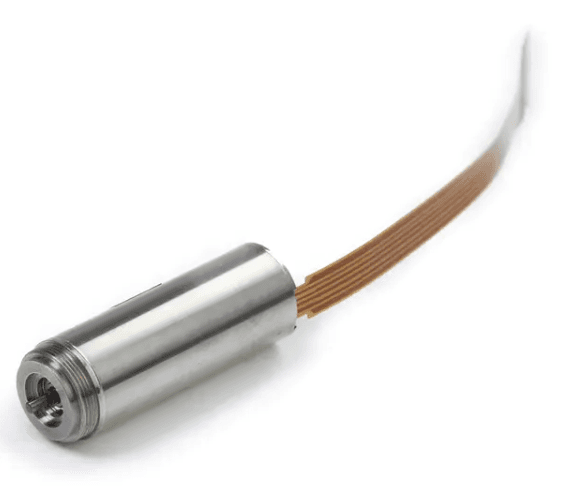

Featured product media

Quick Facts

SLU13CH038-24-G131 Slotless BLDC Motors

Specifications:
  • 0.510 in Frame Size
  • 0.36 A Rated Current
  • 41.1383 oz-in Rated Torque
  • 18 VDC Nominal Voltage
  • 2.260 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.510 in
Motor TypeMotor + Gearhead
Weight0.101 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage18 VDC
No Load Speed 140 RPM
No Load Current90 mA
Nominal Speed152 RPM
Rated Speed110 RPM
Rated Torque41.1383 oz-in
Rated Current0.36 A
Stall Torque271.4701 oz-in
Stall Current2.09 A
Max. Efficiency54.1%

Motor Characteristics

Terminal Resistance8.6 ohm
Terminal Inductance0.13 mH
Speed/Torque Gradient 130.1414 RPM/oz-in
Speed Constant1010 RPM/V

Motor Mechanical Data

Max. Radial Load8.992 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor350 s

Gearhead Specifications

Gearhead Reduction Ratio131

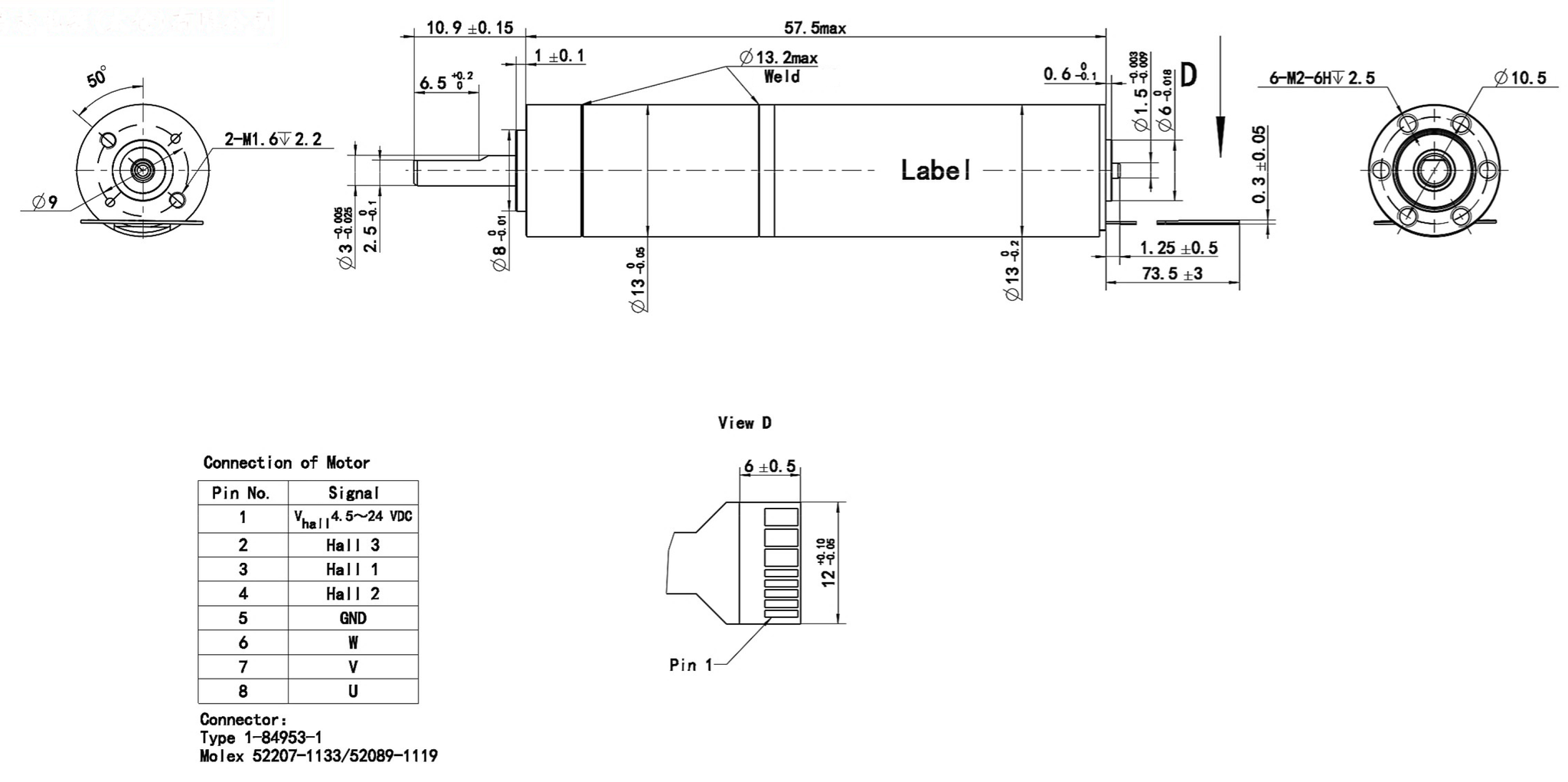

Dimensions

ModelDIM. A (length) in MAX
SLU13CH038-24-G1312.260 in

Performance Curve

SLU13CH038-24-G131
@18 VDC, 131:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU13CH038 Series

Downloads

SLU13CH038-24-G131 Configured Datasheet (PDF)
