SLU13CH038 Series
SLU13CH038-09-G19
Slotless BLDC Motor

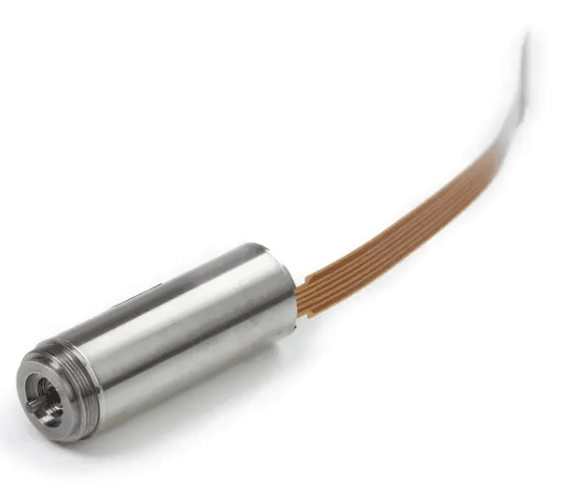

Featured product media

Quick Facts

SLU13CH038-09-G19 Slotless BLDC Motors

Specifications:
  • 0.510 in Frame Size
  • 1.06 A Rated Current
  • 9.049 oz-in Rated Torque
  • 6 VDC Nominal Voltage
  • 2.130 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.510 in
Motor TypeMotor + Gearhead
Weight0.095 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage6 VDC
No Load Speed 800 RPM
No Load Current160 mA
Nominal Speed1000 RPM
Nominal Torque (Max Cont. Torque)9.049 oz-in
Rated Speed512 RPM
Rated Torque9.049 oz-in
Rated Current1.06 A
Stall Torque61.318 oz-in
Stall Current7.38 A
Max. Efficiency58.1%

Motor Characteristics

Terminal Resistance1.22 ohm
Terminal Inductance0.0198 mH
Speed/Torque Gradient 122.3527 RPM/oz-in
Speed Constant2600 RPM/V

Motor Mechanical Data

Max. Radial Load8.992 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Thermal time constant motor350 s

Gearhead Specifications

Gearhead Reduction Ratio19

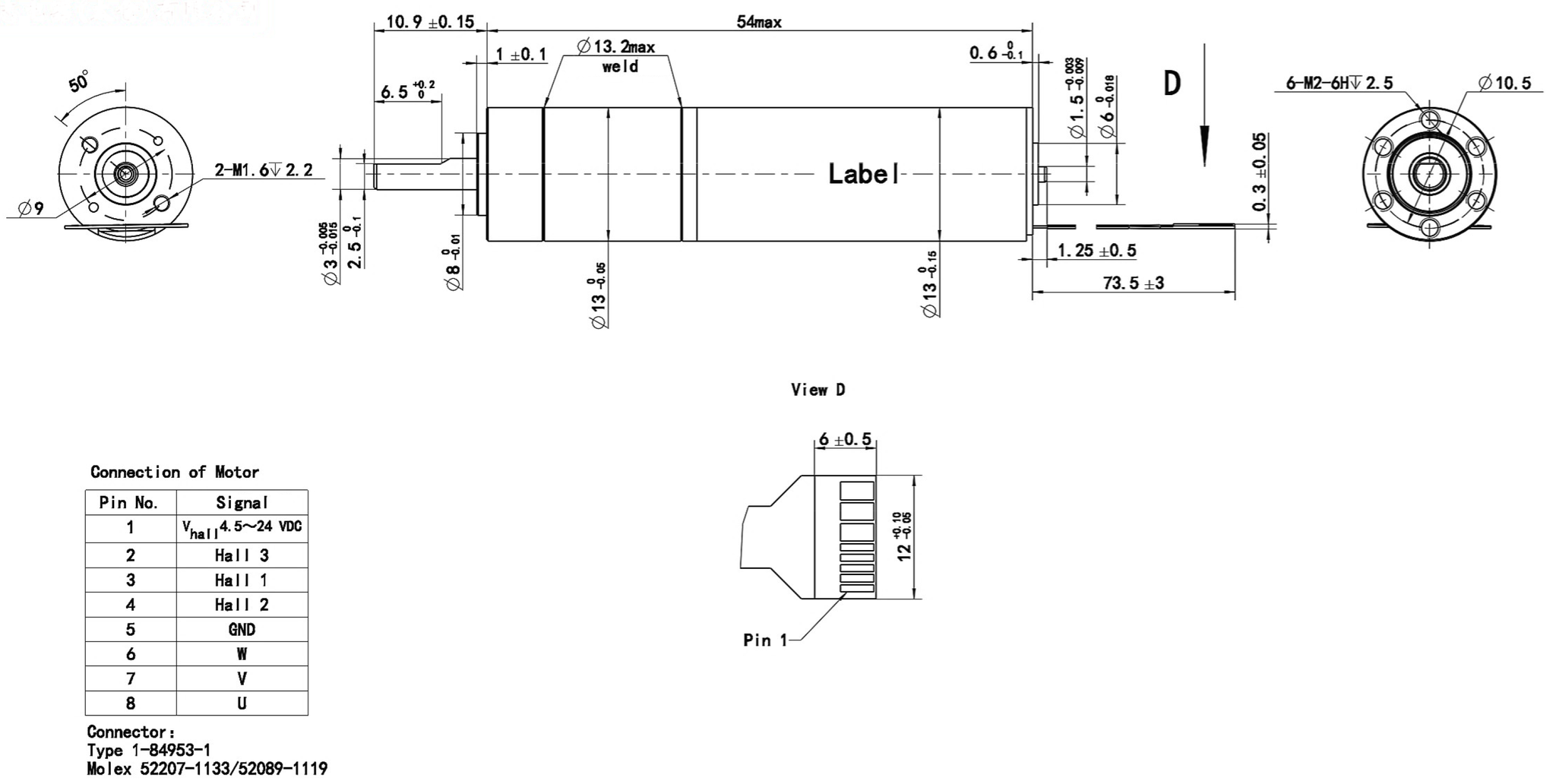

Dimensions

ModelDIM. A (length) in MAX
SLU13CH038-09-G192.130 in

Performance Curve

SLU13CH038-09-G19
@6 VDC, 19:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU13CH038 Series

Downloads

SLU13CH038-09-G19 Configured Datasheet (PDF)
SLU13CH038-09-G19 (3D model) (STP)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
