SLU13CH026 Series
SLU13CH026-24-G94-MH13-1024
Slotless BLDC Motor

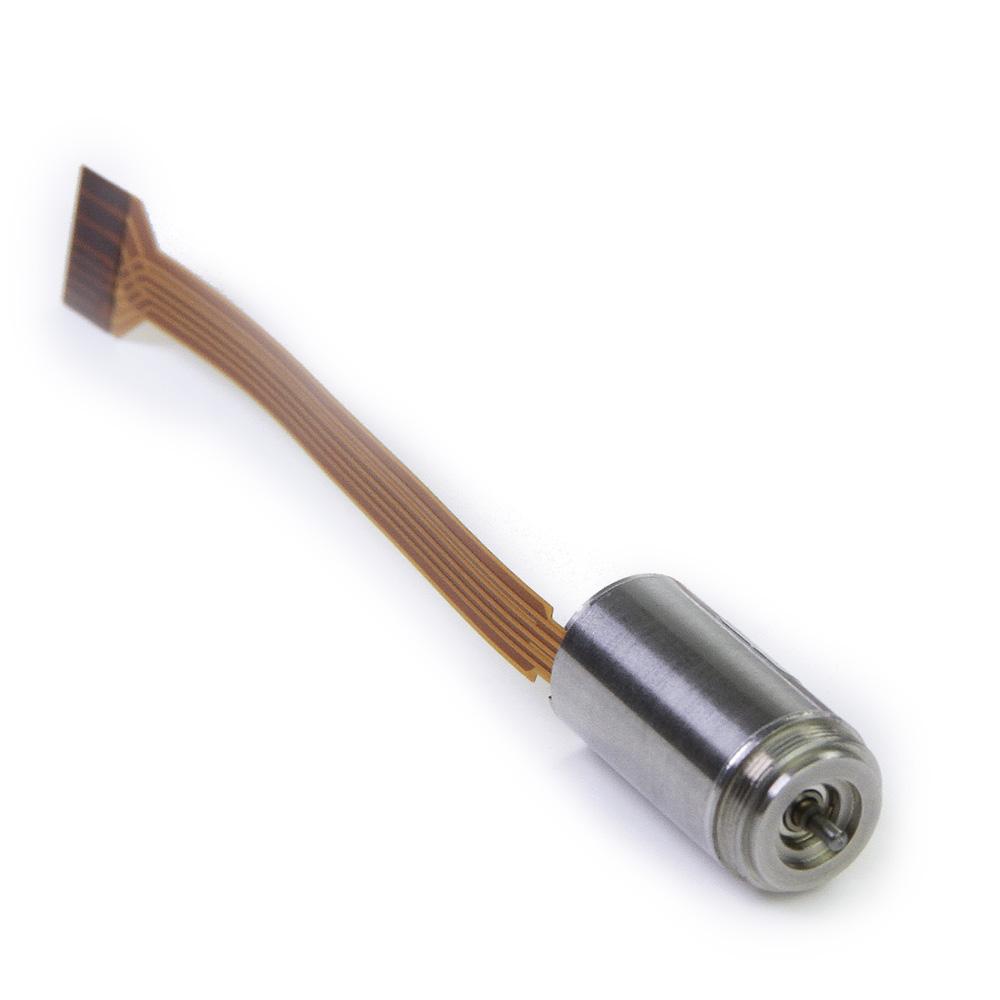

Featured product media

Quick Facts

SLU13CH026-24-G94-MH13-1024 Slotless BLDC Motors

Specifications:
  • 0.510 in Frame Size
  • 0.168 A Rated Current
  • 12.2636 oz-in Rated Torque
  • 18 VDC Nominal Voltage
  • 2.070 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.510 in
Motor TypeMotor + Encoder + Gearhead
Weight0.095 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage18 VDC
No Load Speed 198 RPM
No Load Current51 mA
Nominal Speed205 RPM
Nominal Torque (Max Cont. Torque)12.2636 oz-in
Rated Speed157 RPM
Rated Torque12.2636 oz-in
Rated Current0.168 A
Stall Torque76.4704 oz-in
Stall Current0.89 A
Max. Efficiency49.8%

Motor Characteristics

Terminal Resistance20.6 ohm
Terminal Inductance0.285 mH
Speed/Torque Gradient 365.7836 RPM/oz-in
Speed Constant1105 RPM/V
Mechanical Time Constant5.13 ms
Rotor Inertia0.001 oz-in²

Motor Mechanical Data

Max. Radial Load8.992 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Thermal time constant motor250 s
Thermal time constant winding0.58 s

Gearhead Specifications

Gearhead Reduction Ratio94

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

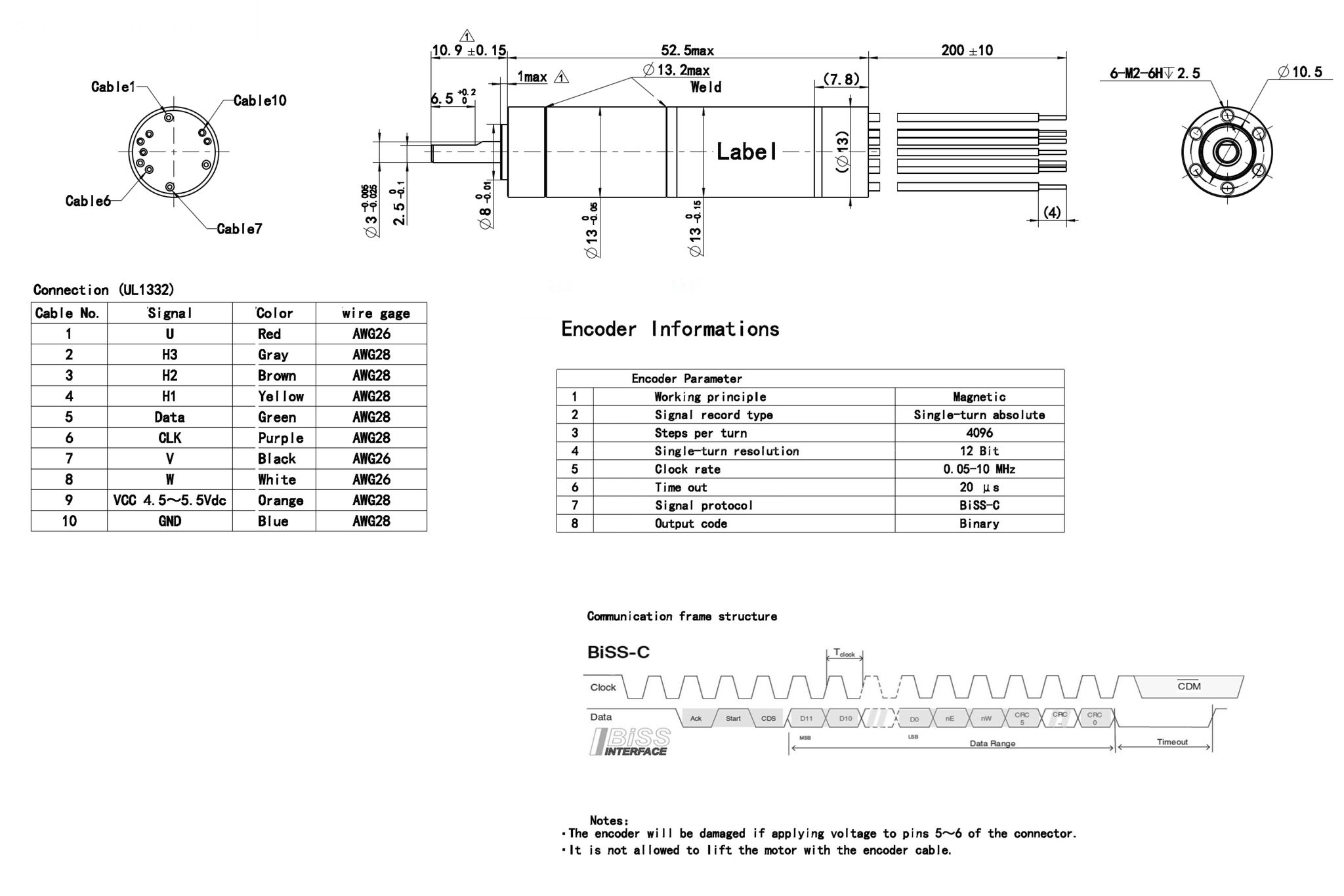

Dimensions

ModelDIM. A (length) in MAX
SLU13CH026-24-G94-MH13-10242.070 in

Performance Curve

SLU13CH026-24-G94-MH13-1024
@18 VDC, 94:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU13CH026 Series

Downloads

SLU13CH026-24-G94-MH13-1024 Configured Datasheet (PDF)
SLU13CH026-24-G94-MH13-1024 (3D model) (STP)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
