SLU13CH026 Series
SLU13CH026-24-G94
Slotless BLDC Motor

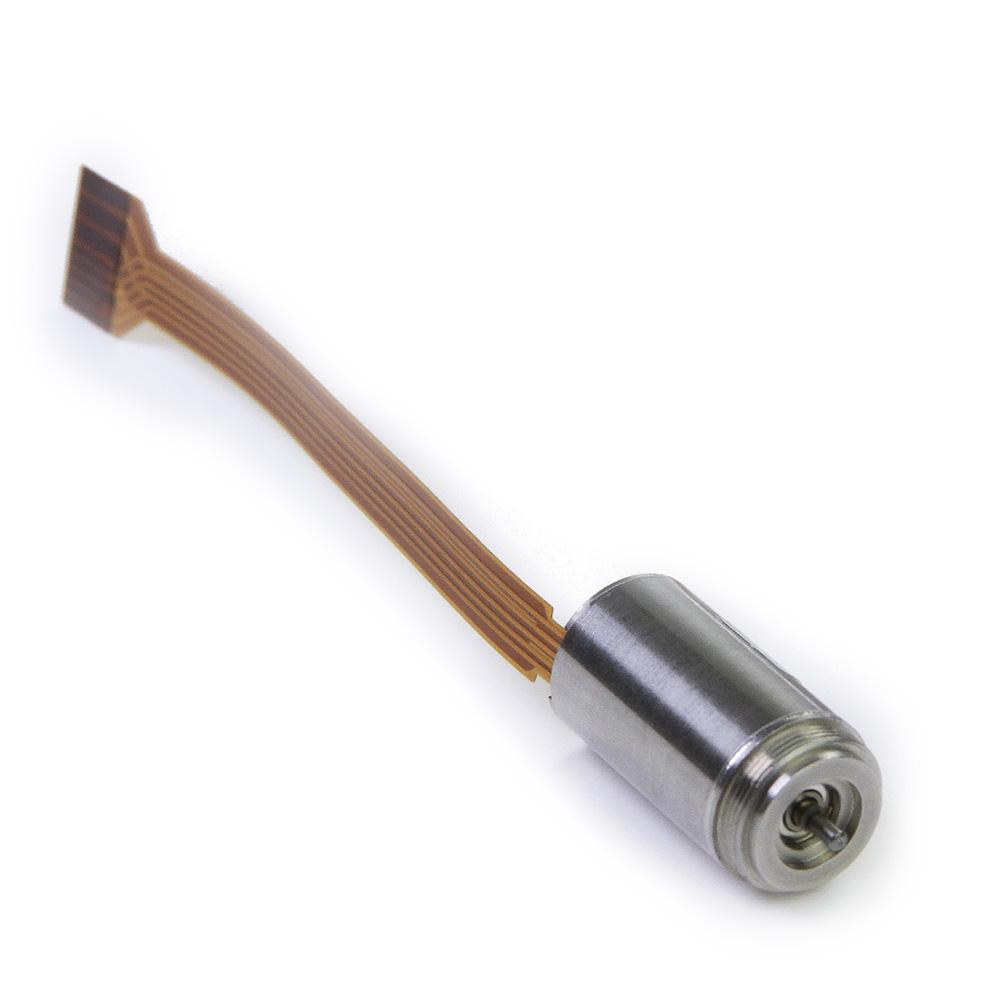

Featured product media

Quick Facts

SLU13CH026-24-G94 Slotless BLDC Motors

Specifications:
  • 0.510 in Frame Size
  • 0.189 A Rated Current
  • 0.1756 oz-in Rated Torque
  • 18 VDC Nominal Voltage
  • 1.770 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.510 in
Motor TypeMotor + Gearhead
Weight0.079 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage18 VDC
No Load Speed 207 RPM
No Load Current40 mA
Nominal Speed205 RPM
Nominal Torque (Max Cont. Torque)0.1756 oz-in
Rated Speed151 RPM
Rated Torque0.1756 oz-in
Rated Current0.189 A
Stall Torque1.0904 oz-in
Stall Current0.89 A
Max. Efficiency50%

Motor Characteristics

Terminal Resistance20.2 ohm
Terminal Inductance0.285 mH
Speed/Torque Gradient 600.1514 RPM/oz-in
Speed Constant1105 RPM/V
Mechanical Time Constant5.13 ms
Rotor Inertia0.001 oz-in²

Motor Mechanical Data

Max. Radial Load8.992 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Thermal time constant motor250 s
Thermal time constant winding0.58 s

Gearhead Specifications

Gearhead Reduction Ratio94

Performance Curve

SLU13CH026-24-G94
@18 VDC, 94:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU13CH026 Series

Downloads

SLU13CH026-24-G94 Configured Datasheet (PDF)
SLU13CH026-24-G94 (3D model) (STP)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
