SLU13CH026 SeriesSLU13CH026-24-G19Slotless BLDC Motor
Quick Facts

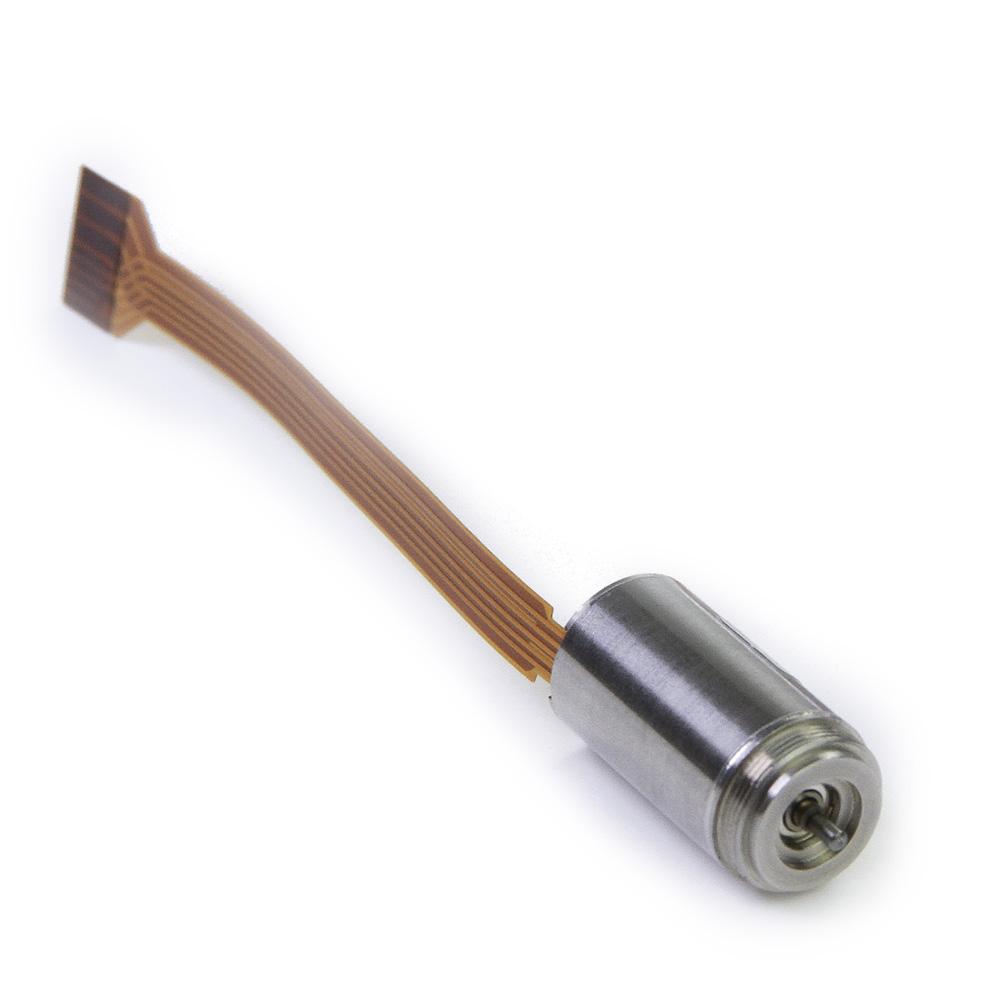

SLU13CH026-24-G19 Slotless BLDC Motors
SLU13CH026-24-G19 Slotless BLDC Motors
Specifications:
- 0.510 in Frame Size
- 0.189 A Rated Current
- 2.8039 oz-in Rated Torque
- 18 VDC Nominal Voltage
- 1.610 in Length
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Specifications
Motor Specifications
| Frame Size | 0.510 in |
| Motor Type | Motor + Gearhead |
| Weight | 0.071 lbs |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 18 VDC |
| No Load Speed | 995 RPM |
| No Load Current | 51 mA |
| Nominal Speed | 1016 RPM |
| Rated Speed | 714 RPM |
| Rated Torque | 2.8039 oz-in |
| Rated Current | 0.189 A |
| Stall Torque | 17.4183 oz-in |
| Stall Current | 0.89 A |
| Max. Efficiency | 55.9% |
Motor Characteristics
| Terminal Resistance | 20.2 ohm |
| Terminal Inductance | 0.285 mH |
| Speed/Torque Gradient | 365.7836 RPM/oz-in |
| Speed Constant | 1105 RPM/V |
| Mechanical Time Constant | 5.13 ms |
| Rotor Inertia | 0.001 oz-in² |
Motor Mechanical Data
| Max. Radial Load | 8.992 lbf |
Motor Thermal Data
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal time constant motor | 250 s |
| Thermal time constant winding | 0.58 s |
Gearhead Specifications
| Gearhead Reduction Ratio | 19 |

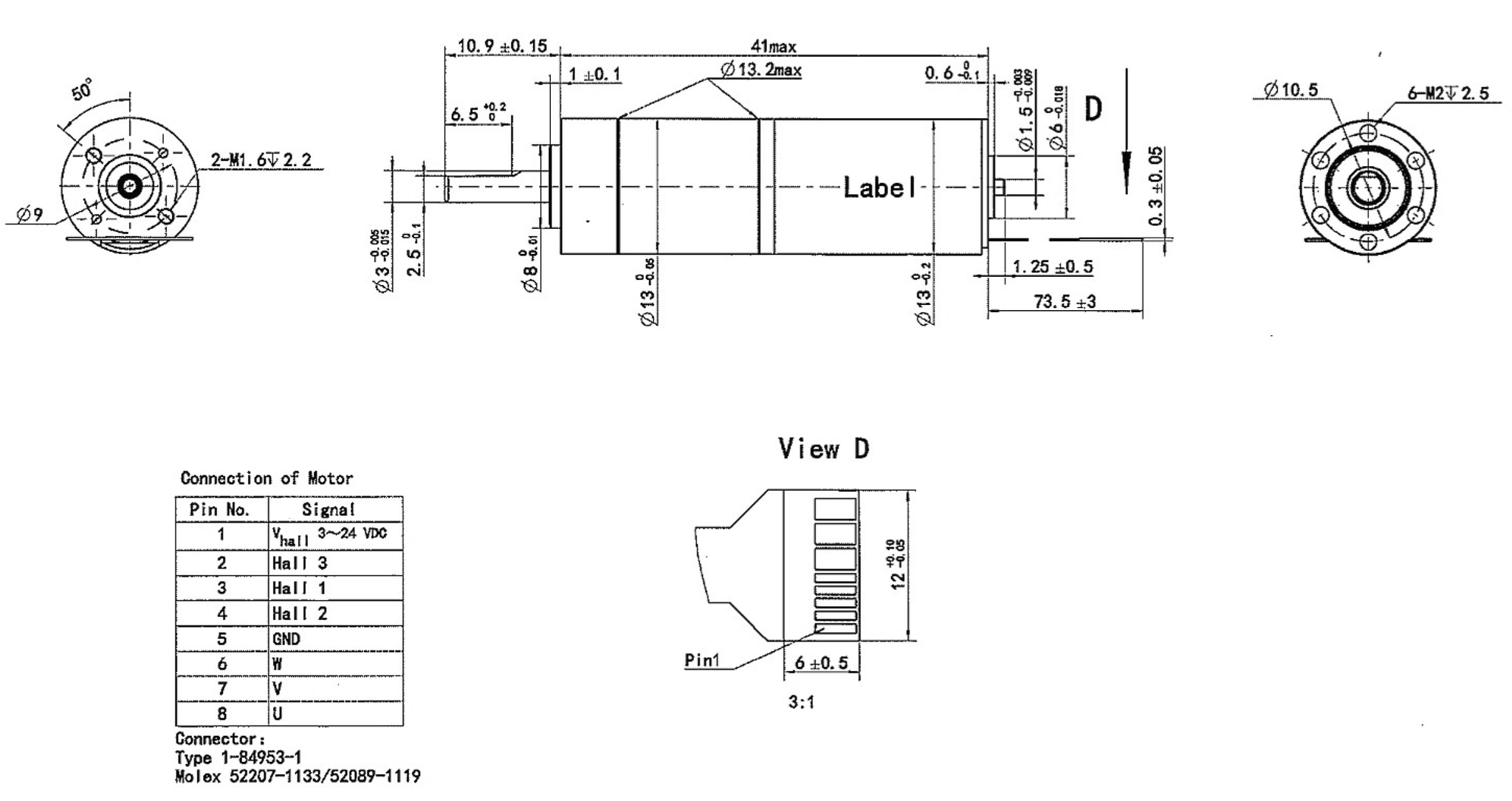

Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| SLU13CH026-24-G19 | 1.610 in |
Performance Curve
SLU13CH026-24-G19
@18 VDC, 19:1 reduction
- Speed
- Current
- Power
- Efficiency
- Operating Area
- Maximum Continuous Torque
Generate new cureve based on different VDC
SLU13CH026 Series
Downloads
SLU13CH026-24-G19 Configured Datasheet (PDF)
