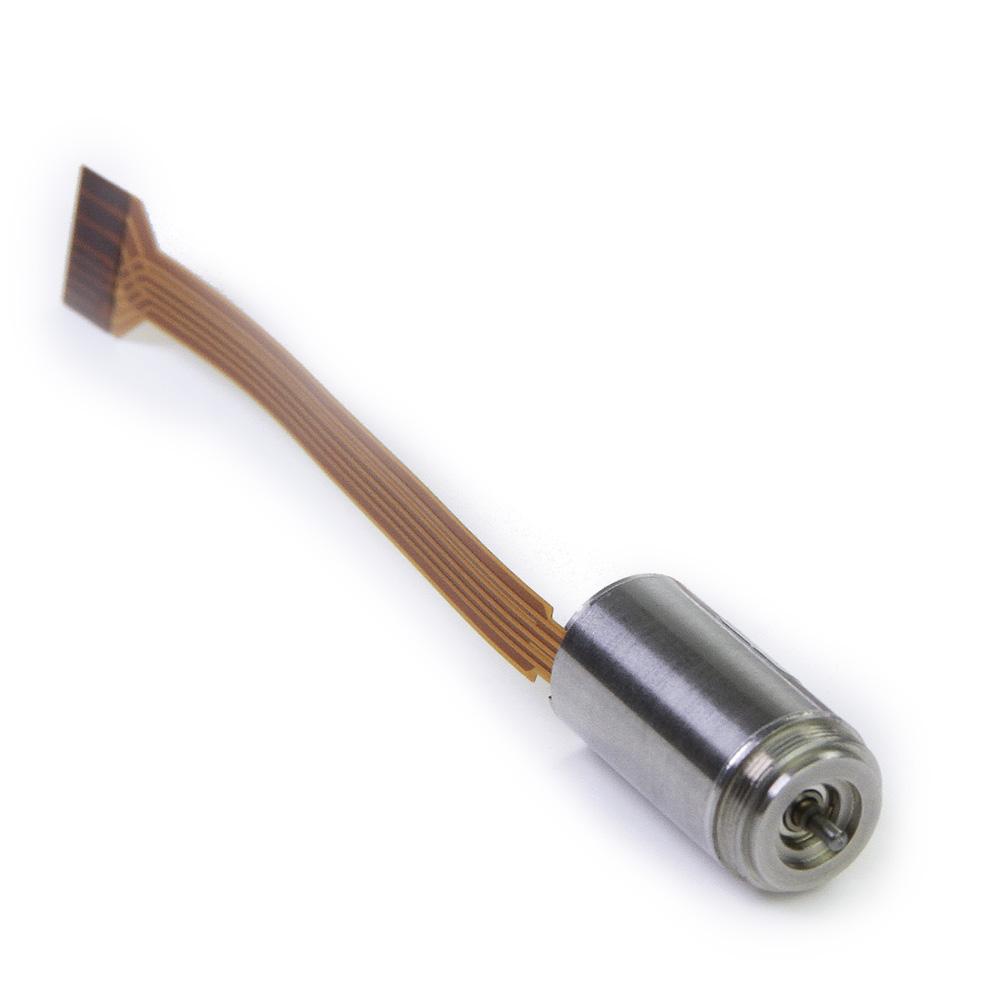

SLU13CH026 SeriesSLU13CH026-24Slotless BLDC Motor
Specifications:
- 0.510 in Frame Size
- 0.32 A Rated Current
- 0.33 oz-in Rated Torque
- 24 VDC Nominal Voltage
- 0.990 in Length
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Unit Price:
$127.60
Inventory:
7 Available in 10 Business Days
Ships:
10 Business Days
Part Number:
SLU13CH026-24
Looking For Higher Volume?
Specifications
Motor Specifications
| Frame Size | 0.510 in |
| Motor Type | Motor Only |
| Weight | 0.042 lbs |
| Number of pole | 2 |
| Number of Phases | 3 |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 24 VDC |
| No Load Speed | 26100 RPM |
| No Load Current | 42 mA |
| Nominal Speed | 19300 RPM |
| Nominal Torque (Max Cont. Torque) | 0.33 oz-in |
| Nominal Current (Max Cont. Current) | 0.32 A |
| Rated Speed | 19300 RPM |
| Rated Torque | 0.33 oz-in |
| Rated Current | 0.32 A |
| Stall Torque | 1.1088 oz-in |
| Stall Current | 0.96 A |
| Max. Efficiency | 63.5% |
Motor Characteristics
| Terminal Resistance | 25.1 ohm |
| Terminal Inductance | 0.377 mH |
| Speed/Torque Gradient | 499.0404 RPM/oz-in |
| Speed Constant | 1150 RPM/V |
| Mechanical Time Constant | 7.62 ms |
| Rotor Inertia | 0.001 oz-in² |
Motor Mechanical Data
| Axial play | 0.002 in |
| Radial play | Preloaded |
| Max. Radial Load | 0.899 lbf |
| Distance From Flange For Radial Load | 5 in |
| Max Force For Press Fit | 2.248 lbf |
| Max Speed (Mechanical) | 40000 RPM |
Motor Thermal Data
| Ambient Temperature | -40 °F to 212.00 °F |
| Insulation Class | F |
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal resistance (Housing-Ambient) | 89.60 °F/W |
| Thermal resistance (Winding-Housing) | 38.64 °F/W |
| Thermal time constant motor | 250 s |
| Thermal time constant winding | 0.58 s |

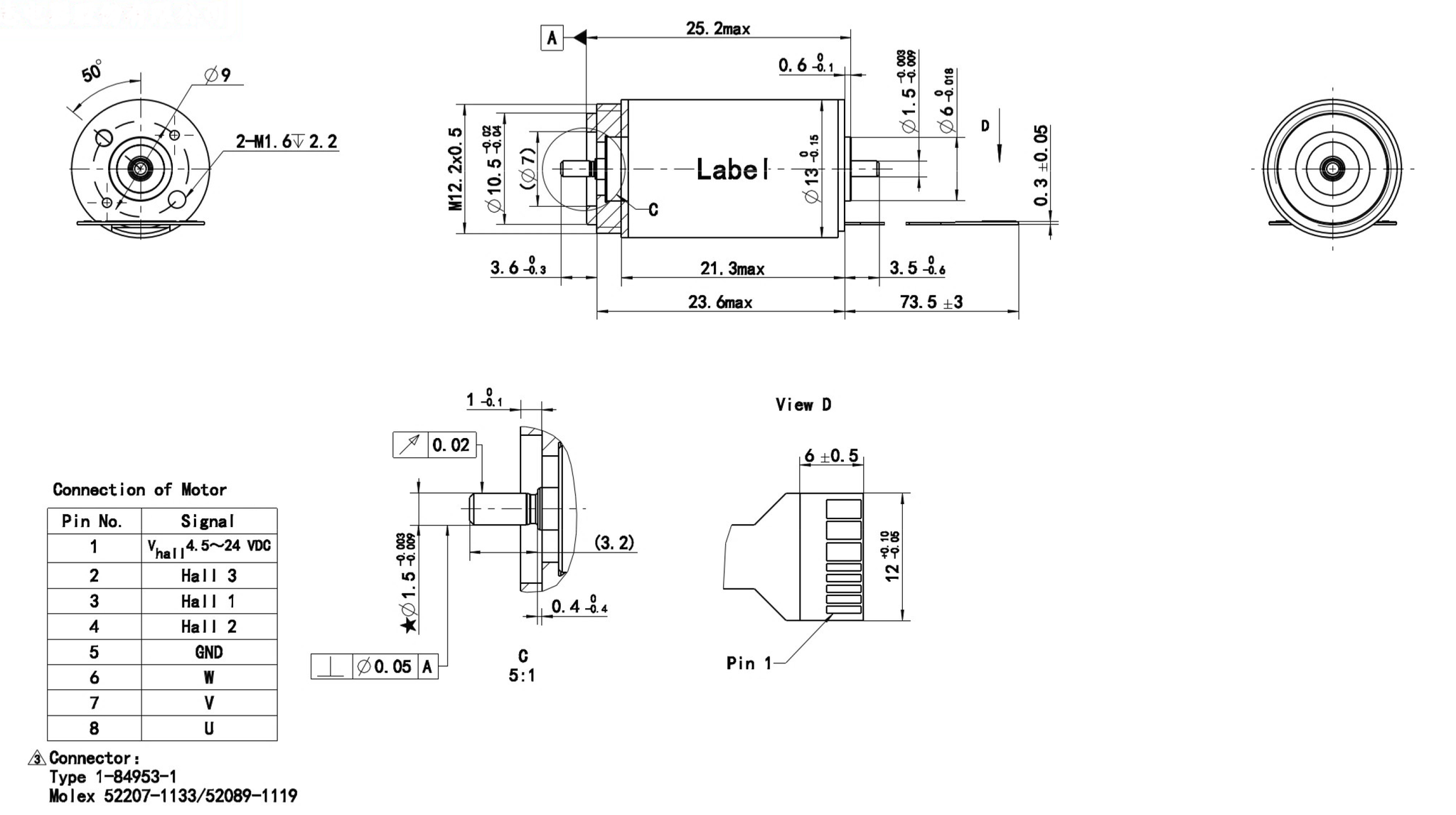

Dimensions
| Model | DIM. A (length) in |
|---|---|
| SLU13CH026-24 | 0.990 in |
