SLU13CH026 Series
SLU13CH026-18-G4
Slotless BLDC Motor

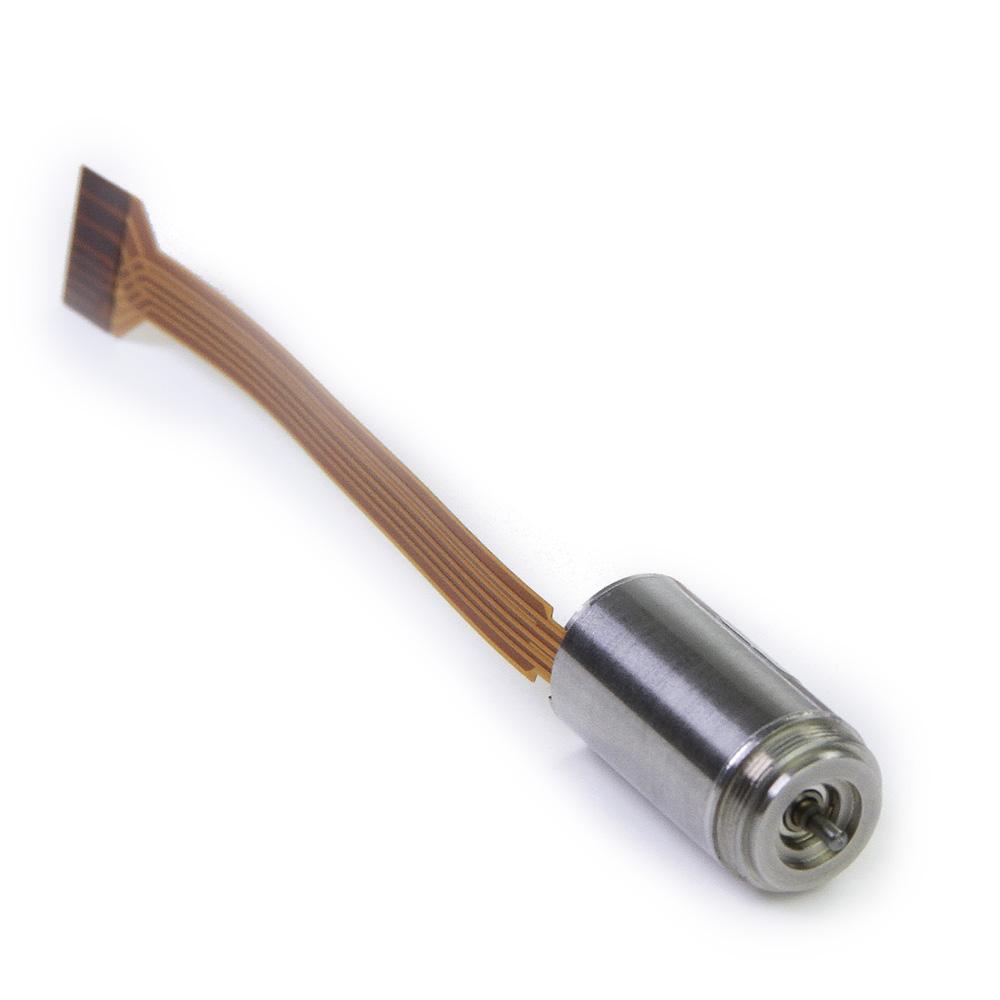

Featured product media

Quick Facts

SLU13CH026-18-G4 Slotless BLDC Motors

Specifications:
  • 0.510 in Frame Size
  • 0.24 A Rated Current
  • 0.6373 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 1.460 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.510 in
Motor TypeMotor + Gearhead
Weight0.067 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 4186 RPM
No Load Current43.5 mA
Nominal Speed4825 RPM
Rated Speed3071 RPM
Rated Torque0.6373 oz-in
Rated Current0.24 A
Stall Torque3.2571 oz-in
Stall Current0.94 A
Max. Efficiency58.2%

Motor Characteristics

Terminal Resistance12.8 ohm
Terminal Inductance0.174 mH
Speed/Torque Gradient 368.8991 RPM/oz-in
Speed Constant1394 RPM/V
Mechanical Time Constant5.13 ms
Rotor Inertia0.001 oz-in²

Motor Mechanical Data

Max. Radial Load8.992 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor250 s
Thermal time constant winding0.58 s

Gearhead Specifications

Gearhead Reduction Ratio4

Performance Curve

SLU13CH026-18-G4
@12 VDC, 4:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU13CH026 Series

Downloads

SLU13CH026-18-G4 Configured Datasheet (PDF)
