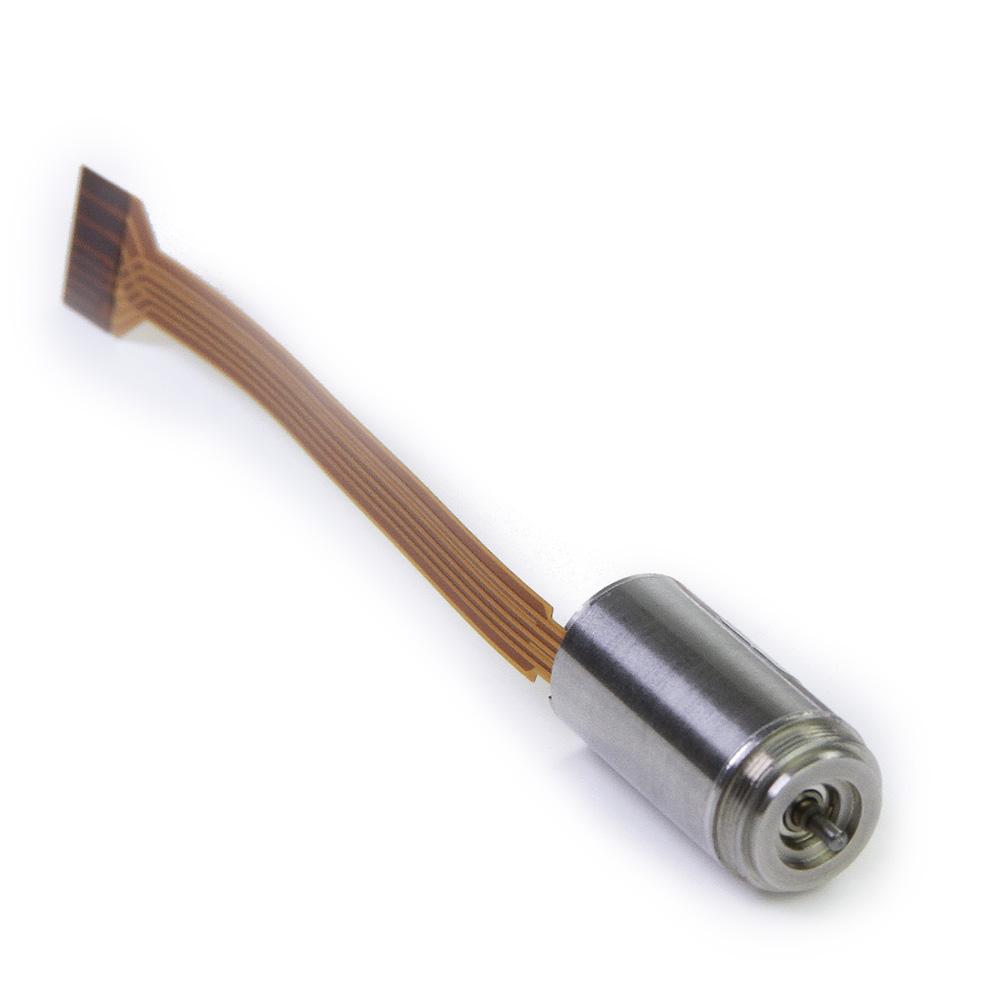

SLU13CH026 Series
SLU13CH026-18
Slotless BLDC Motor

Name: SLU13CH026-18
Brand: Lin Engineering
SKU: SLU13CH026-18
Price: 127.6 USD
Availability: PreOrder

Quick Facts

SLU13CH026-18 Slotless BLDC Motors

Specifications:

0.510 in Frame Size
0.44 A Rated Current
0.3413 oz-in Rated Torque
18 VDC Nominal Voltage
0.990 in Length

Features and Benefits:

Extremely quick response and high acceleration
Quiet Operation
High power density

Specifications

Motor Specifications

Frame Size	0.510 in
Motor Type	Motor Only
Weight	0.042 lbs
Number of pole	2
Number of Phases	3
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	18 VDC
No Load Speed	28400 RPM
No Load Current	56 mA
Nominal Speed	19300 RPM
Nominal Torque (Max Cont. Torque)	0.3413 oz-in
Nominal Current (Max Cont. Current)	0.44 A
Rated Speed	19300 RPM
Rated Torque	0.3413 oz-in
Rated Current	0.44 A
Stall Torque	1.2108 oz-in
Stall Current	1.4 A
Max. Efficiency	63.9%

Motor Characteristics

Terminal Resistance	13.4 ohm
Terminal Inductance	0.209 mH
Speed/Torque Gradient	470.1516 RPM/oz-in
Speed Constant	1578 RPM/V
Mechanical Time Constant	7.45 ms
Rotor Inertia	0.001 oz-in²

Motor Mechanical Data

Axial play	0.002 in
Radial play	Preloaded
Max. Radial Load	0.899 lbf
Distance From Flange For Radial Load	5 in
Max Force For Press Fit	2.248 lbf
Max Speed (Mechanical)	40000 RPM

Motor Thermal Data

Ambient Temperature	-40 °F to 212.00 °F
Insulation Class	F
Max winding temperature	311.00 °F
Max winding temperature	311.00 °F
Thermal resistance (Housing-Ambient)	89.60 °F/W
Thermal resistance (Winding-Housing)	38.64 °F/W
Thermal time constant motor	250 s
Thermal time constant winding	0.58 s

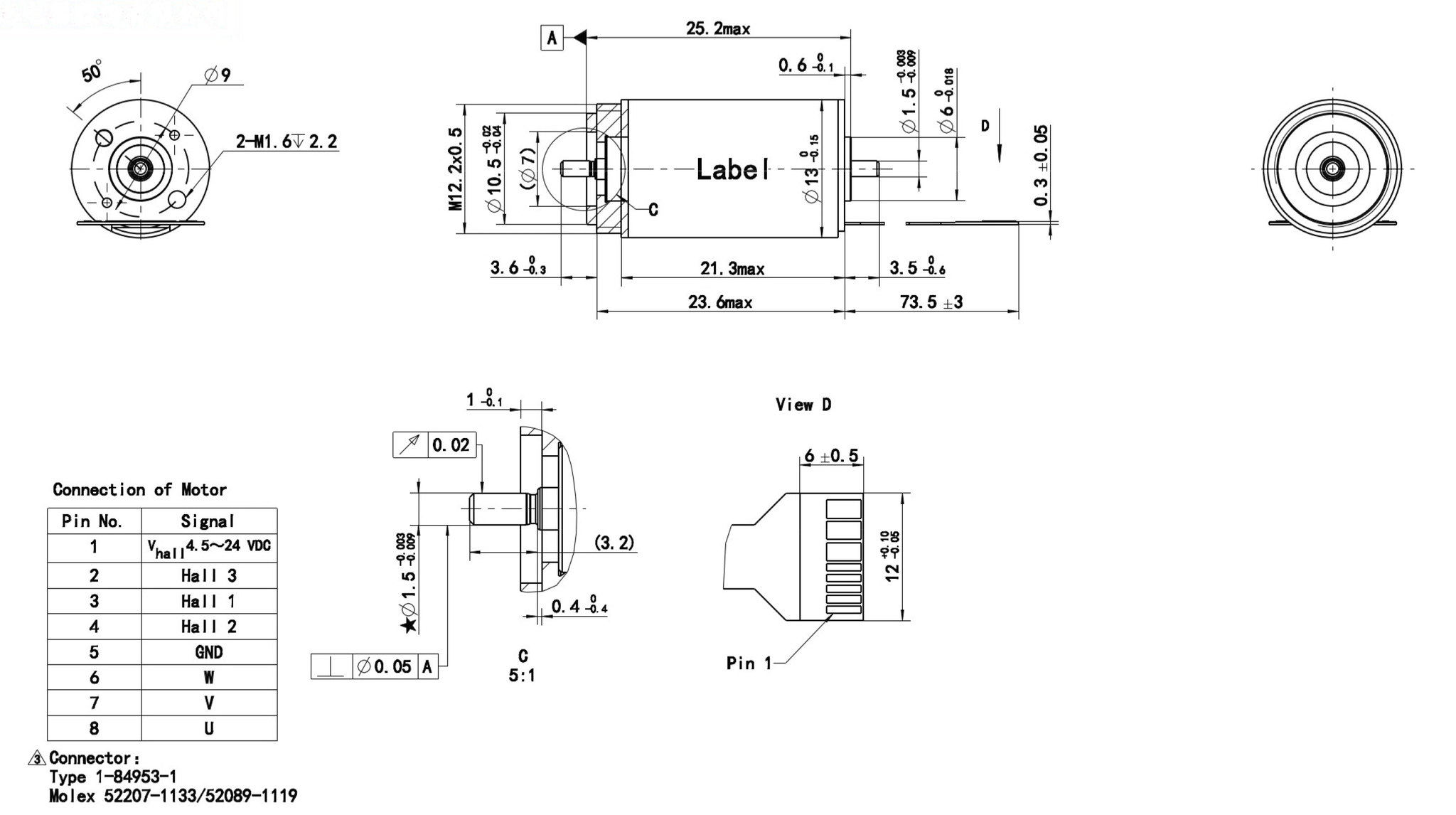

Dimensions

Model	DIM. A (length) in MAX
SLU13CH026-18	0.990 in

Performance Curve

SLU13CH026 Series

Downloads

SLU13CH026-18 Configured Datasheet (PDF)
