SLU13CH026 Series
SLU13CH026-12-G4-MH13-1024
Slotless BLDC Motor

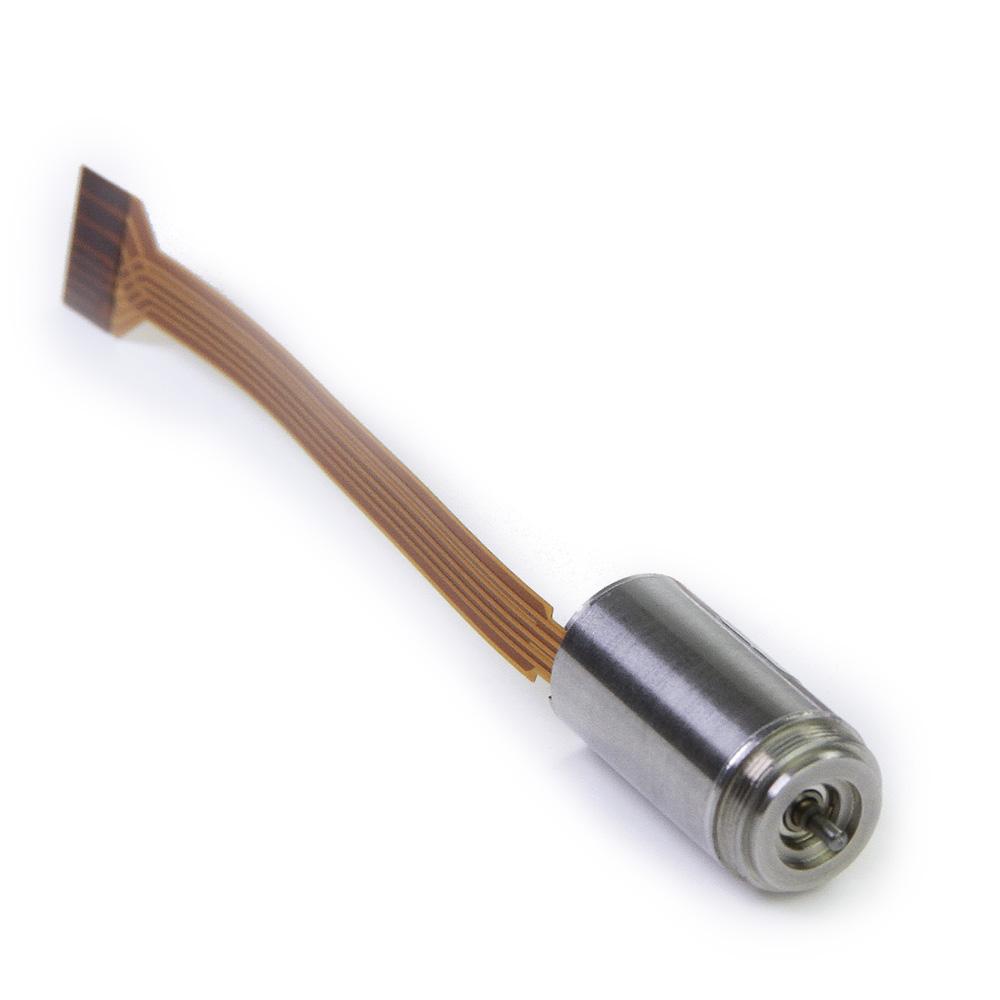

Featured product media

Quick Facts

SLU13CH026-12-G4-MH13-1024 Slotless BLDC Motors

Specifications:
  • 0.510 in Frame Size
  • 0.34 A Rated Current
  • 0.7222 oz-in Rated Torque
  • 9 VDC Nominal Voltage
  • 1.750 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.510 in
Motor TypeMotor + Encoder + Gearhead
Weight0.088 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage9 VDC
No Load Speed 4569 RPM
No Load Current87.7 mA
Nominal Speed4825 RPM
Rated Speed3300 RPM
Rated Torque0.7222 oz-in
Rated Current0.34 A
Stall Torque3.6819 oz-in
Stall Current1.57 A
Max. Efficiency60.2%

Motor Characteristics

Terminal Resistance5.5 ohm
Terminal Inductance0.0807 mH
Speed/Torque Gradient 357.7117 RPM/oz-in
Speed Constant2050 RPM/V
Mechanical Time Constant5.13 ms
Rotor Inertia0.001 oz-in²

Motor Mechanical Data

Max. Radial Load8.992 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor250 s
Thermal time constant winding0.58 s

Gearhead Specifications

Gearhead Reduction Ratio4

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

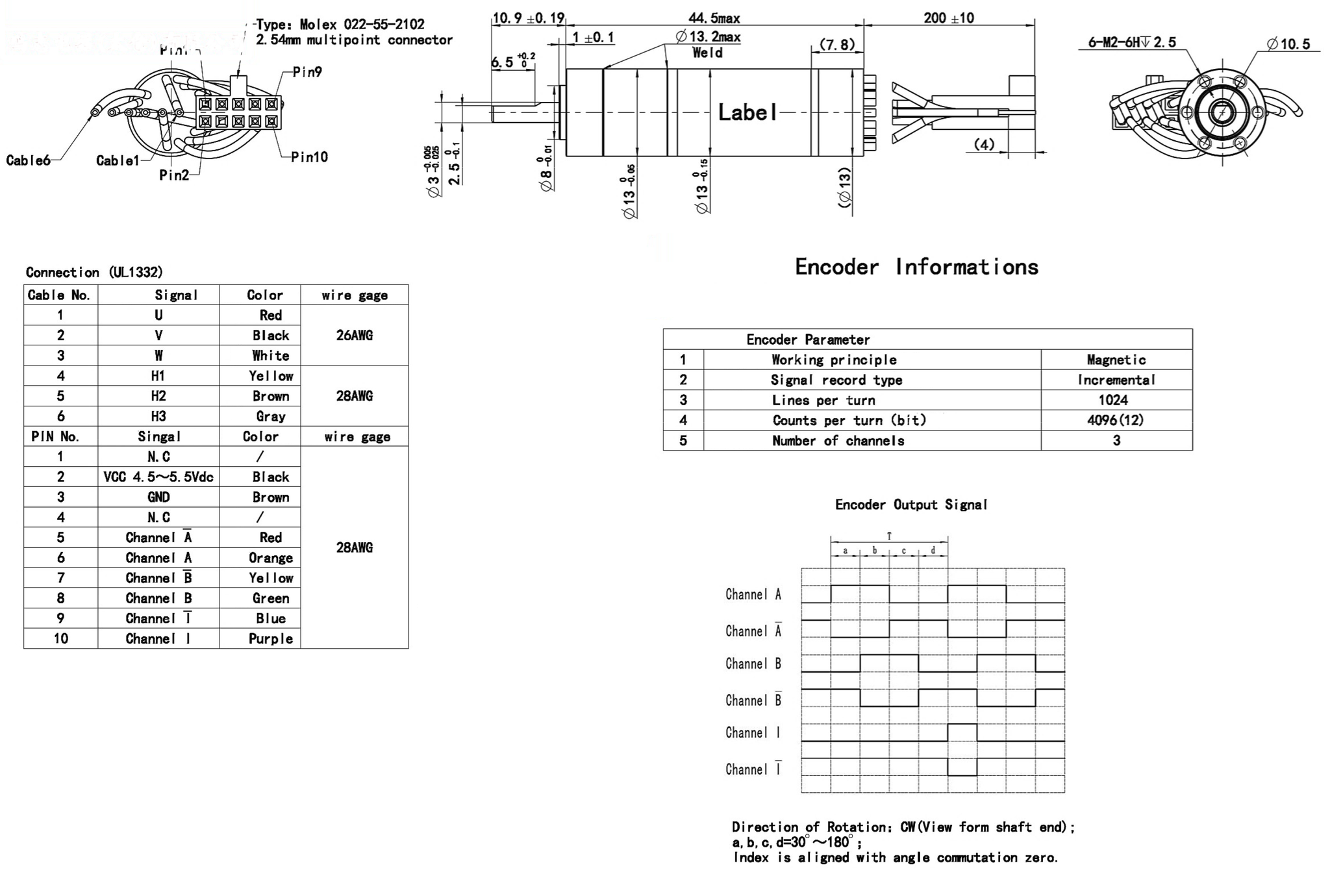

Dimensions

ModelDIM. A (length) in MAX
SLU13CH026-12-G4-MH13-10241.750 in

Performance Curve

SLU13CH026-12-G4-MH13-1024
@9 VDC, 4:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU13CH026 Series

Downloads

SLU13CH026-12-G4-MH13-1024 Configured Datasheet (PDF)
