SLU13CH026 SeriesSLU13CH026-12-G276Slotless BLDC Motor
Quick Facts

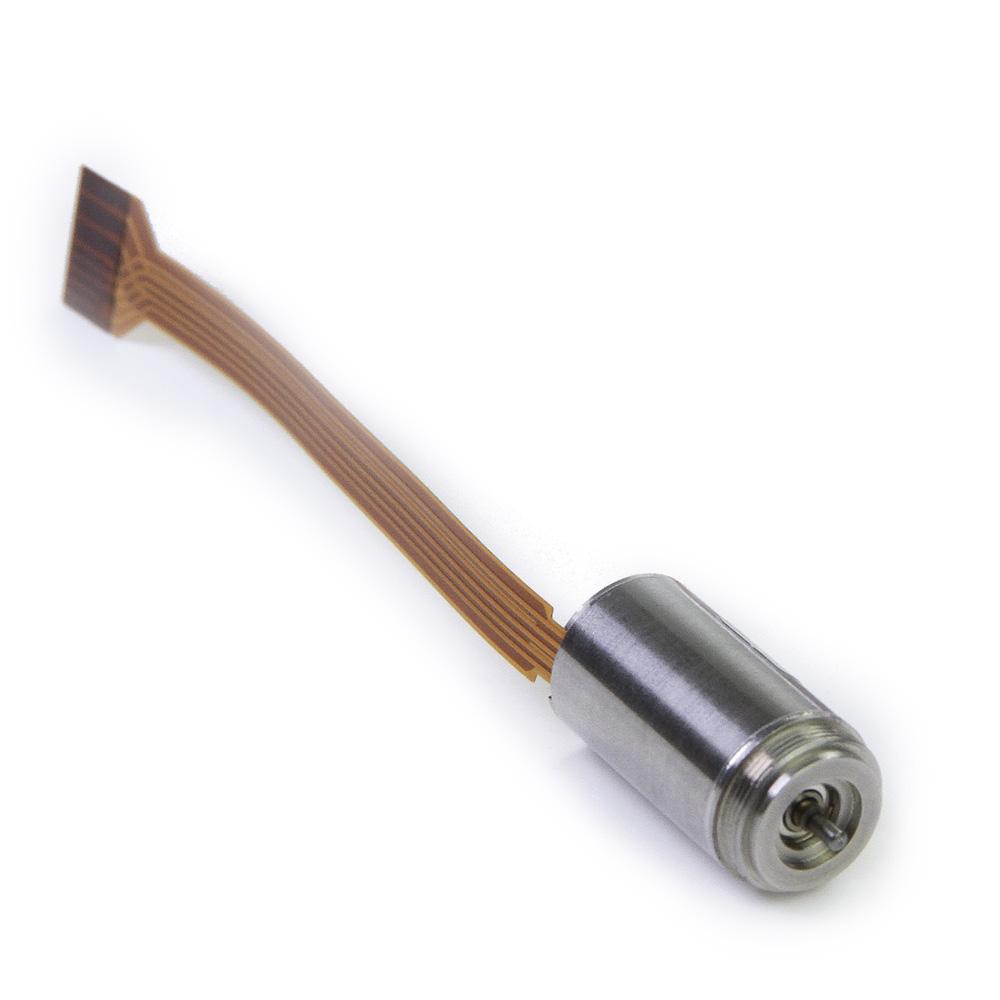

SLU13CH026-12-G276 Slotless BLDC Motors
SLU13CH026-12-G276 Slotless BLDC Motors
Specifications:
- 0.510 in Frame Size
- 0.38 A Rated Current
- 37.4422 oz-in Rated Torque
- 9 VDC Nominal Voltage
- 1.940 in Length
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Specifications
Motor Specifications
| Frame Size | 0.510 in |
| Motor Type | Motor + Gearhead |
| Weight | 0.086 lbs |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 9 VDC |
| No Load Speed | 62 RPM |
| No Load Current | 87.8 mA |
| Nominal Speed | 70 RPM |
| Nominal Torque (Max Cont. Torque) | 37.4422 oz-in |
| Rated Speed | 45 RPM |
| Rated Torque | 37.4422 oz-in |
| Rated Current | 0.38 A |
| Stall Torque | 188.3439 oz-in |
| Stall Current | 1.57 A |
| Max. Efficiency | 43.2% |
Motor Characteristics
| Terminal Resistance | 5.74 ohm |
| Terminal Inductance | 0.0807 mH |
| Speed/Torque Gradient | 357.7117 RPM/oz-in |
| Speed Constant | 2050 RPM/V |
| Mechanical Time Constant | 5.13 ms |
| Rotor Inertia | 0.001 oz-in² |
Motor Mechanical Data
| Max. Radial Load | 8.992 lbf |
Motor Thermal Data
| Max winding temperature | 311.00 °F |
| Thermal time constant motor | 250 s |
| Thermal time constant winding | 0.58 s |
Gearhead Specifications
| Gearhead Reduction Ratio | 276 |

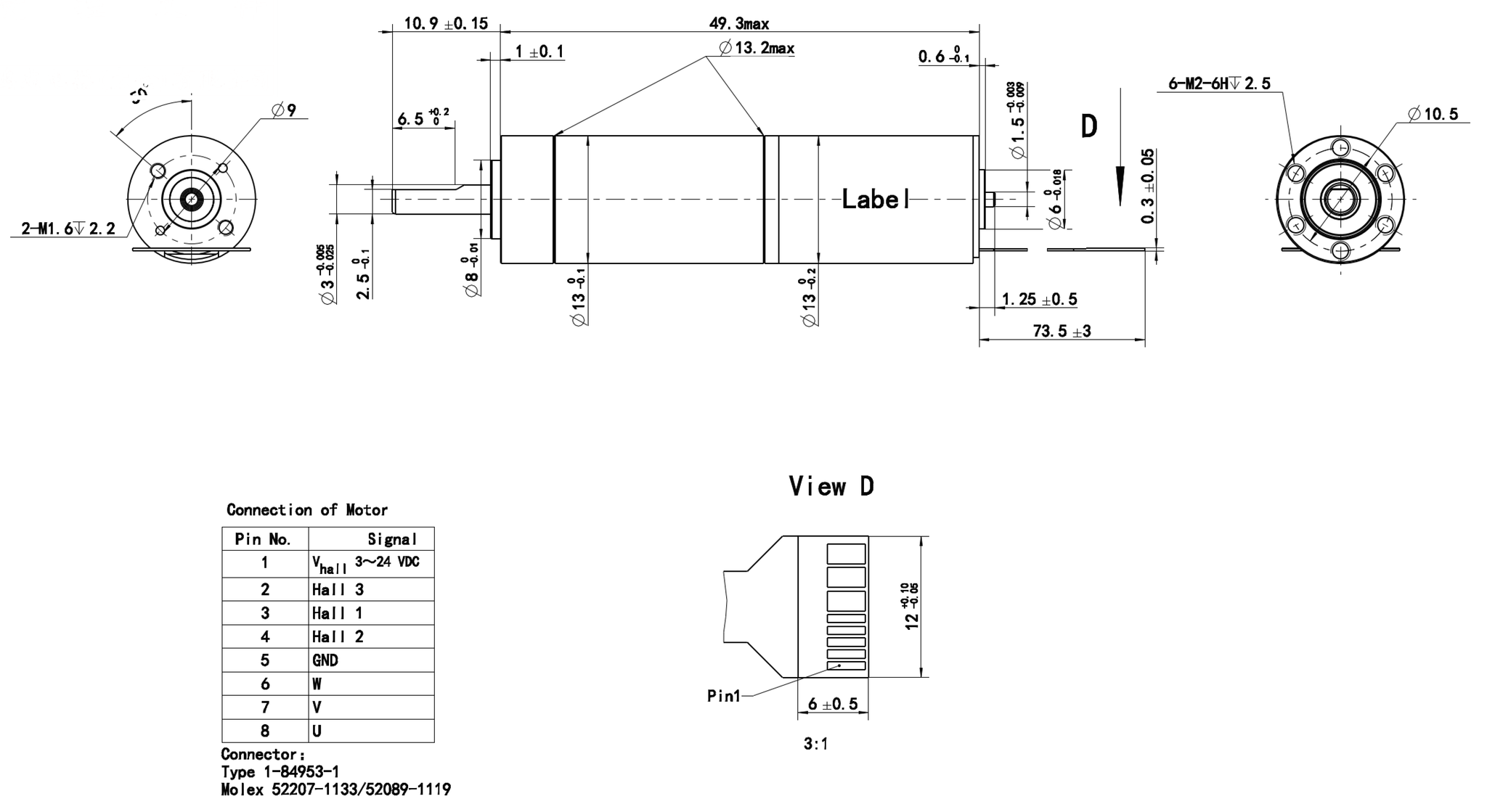

Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| SLU13CH026-12-G276 | 1.940 in |
Performance Curve
SLU13CH026-12-G276
@9 VDC, 276:1 reduction
- Speed
- Current
- Power
- Efficiency
- Operating Area
- Maximum Continuous Torque
Generate new cureve based on different VDC
SLU13CH026 Series
Downloads
SLU13CH026-12-G276 Configured Datasheet (PDF)
SLU13CH026-12-G276 (3D model) (STP)
