SLH10CH025 Series
SLH10CH025-12-G4-MS10-1024
Slotless BLDC Motor

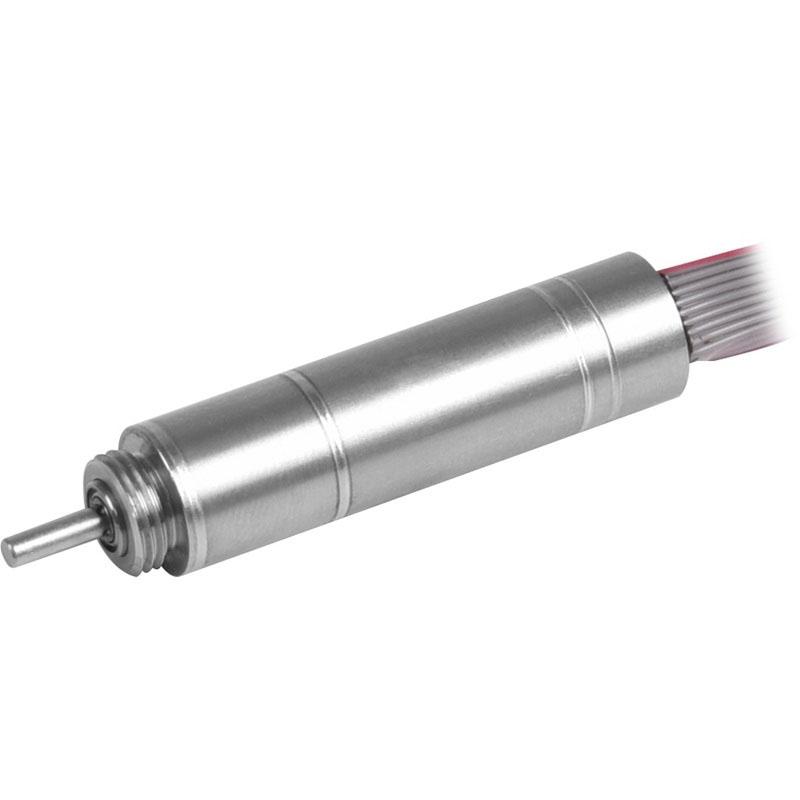

Featured product media

Quick Facts

SLH10CH025-12-G4-MS10-1024 Slotless BLDC Motors

Specifications:
  • 0.390 in Frame Size
  • 0.24 A Rated Current
  • Rated Torque
  • 12 VDC Nominal Voltage
  • 1.300 in Length

Specifications

Motor Specifications

Frame Size0.390 in
Motor TypeMotor + Encoder + Gearhead
Weight0.042 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 8416 RPM
No Load Current50 mA
Nominal Speed4828 RPM
Rated Speed4828 RPM
Rated Current0.24 A
Stall Torque1.7347 oz-in
Stall Current1 A
Max. Efficiency57%

Motor Characteristics

Terminal Resistance11.4 ohm
Terminal Inductance0.15 mH
Speed/Torque Gradient 1196.0544 RPM/oz-in
Speed Constant2660 RPM/V
Mechanical Time Constant5.59 ms
Rotor Inertia0 oz-in²

Motor Mechanical Data

Max. Radial Load1.124 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor327 s
Thermal time constant winding0.56 s

Gearhead Specifications

Gearhead Reduction Ratio4
Nominal Reduction Ratio4

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

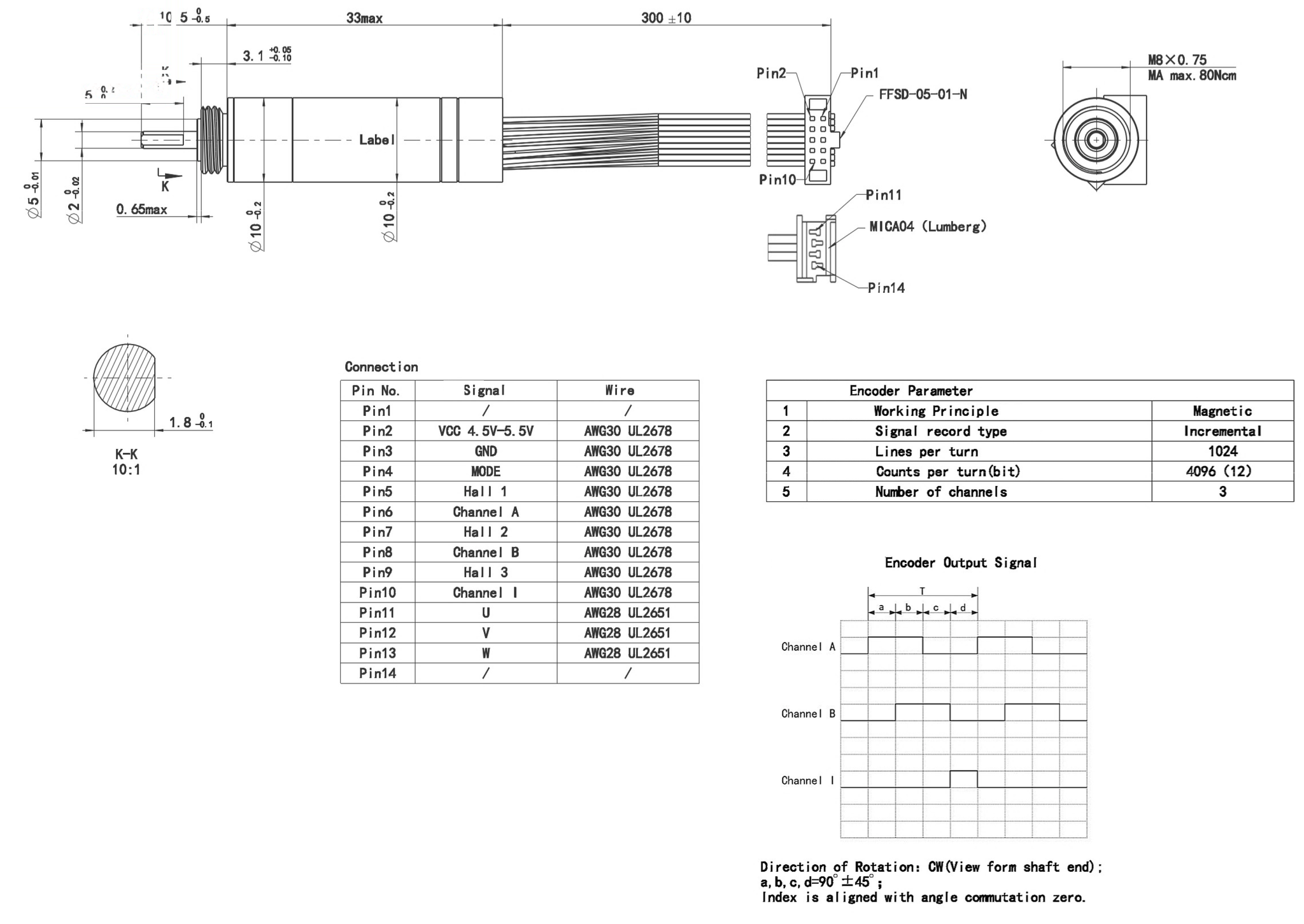

Dimensions

ModelDIM. A (length) in MAX
SLH10CH025-12-G4-MS10-10241.300 in

Performance Curve

SLH10CH025-12-G4-MS10-1024
@12 VDC, 4:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLH10CH025 Series

Downloads

SLH10CH025-12-G4-MS10-1024 Configured Datasheet (PDF)
