SLH10CH025 Series
SLH10CH025-12-G1024
Slotless BLDC Motor

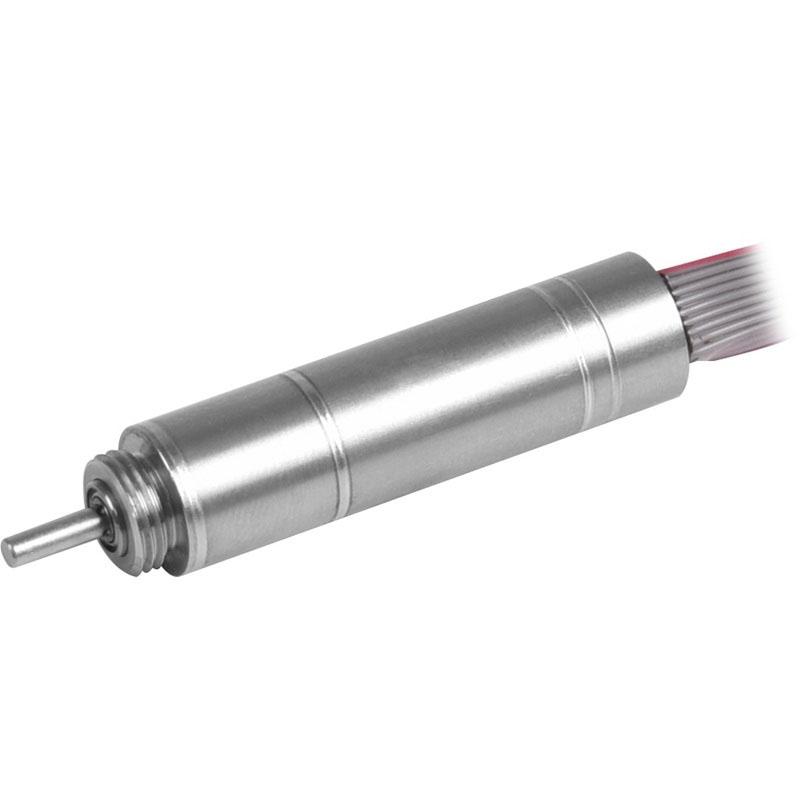

Featured product media

Quick Facts

SLH10CH025-12-G1024 Slotless BLDC Motors

Specifications:
  • 0.390 in Frame Size
  • 0.12 A Rated Current
  • Rated Torque
  • 12 VDC Nominal Voltage
  • 1.890 in Length

Specifications

Motor Specifications

Frame Size0.390 in
Motor TypeMotor + Gearhead
Weight0.066 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 31.2 RPM
No Load Current60 mA
Nominal Speed28 RPM
Rated Speed27.5 RPM
Rated Current0.12 A
Stall Torque0.1841 oz-in
Stall Current1 A
Max. Efficiency40%

Motor Characteristics

Terminal Resistance11.4 ohm
Terminal Inductance0.15 mH
Speed/Torque Gradient 1258.9301 RPM/oz-in
Speed Constant2660 RPM/V
Mechanical Time Constant5.59 ms
Rotor Inertia0 oz-in²

Motor Mechanical Data

Max. Radial Load2.248 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor327 s
Thermal time constant winding0.56 s

Gearhead Specifications

Gearhead Reduction Ratio1024
Nominal Reduction Ratio1024

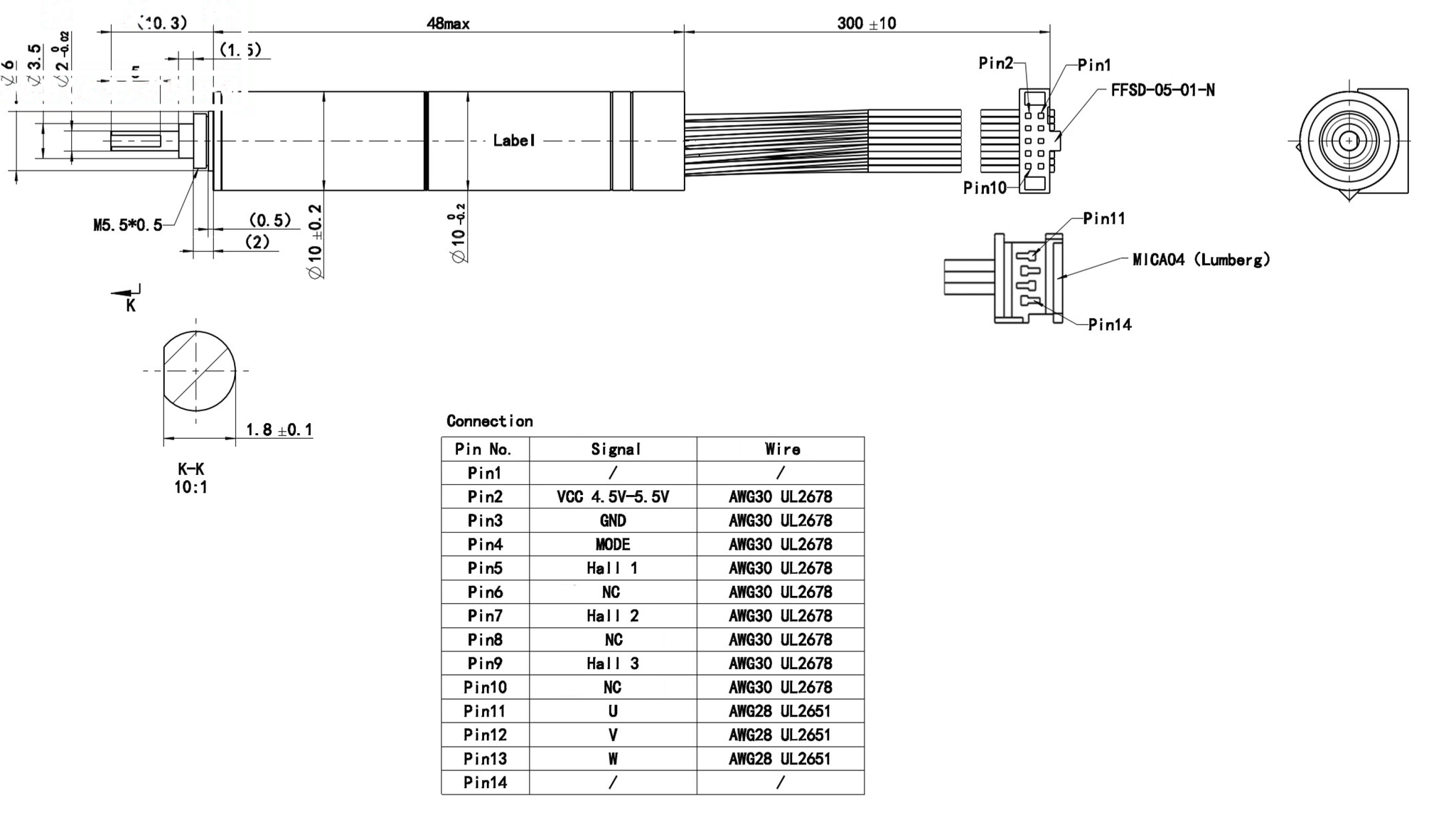

Dimensions

ModelDIM. A (length) in MAX
SLH10CH025-12-G10241.890 in

Performance Curve

SLH10CH025-12-G1024
@12 VDC, 1024:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLH10CH025 Series

Downloads

SLH10CH025-12-G1024 Configured Datasheet (PDF)
