SLH10CH025 Series
SLH10CH025-12
Slotless BLDC Motor

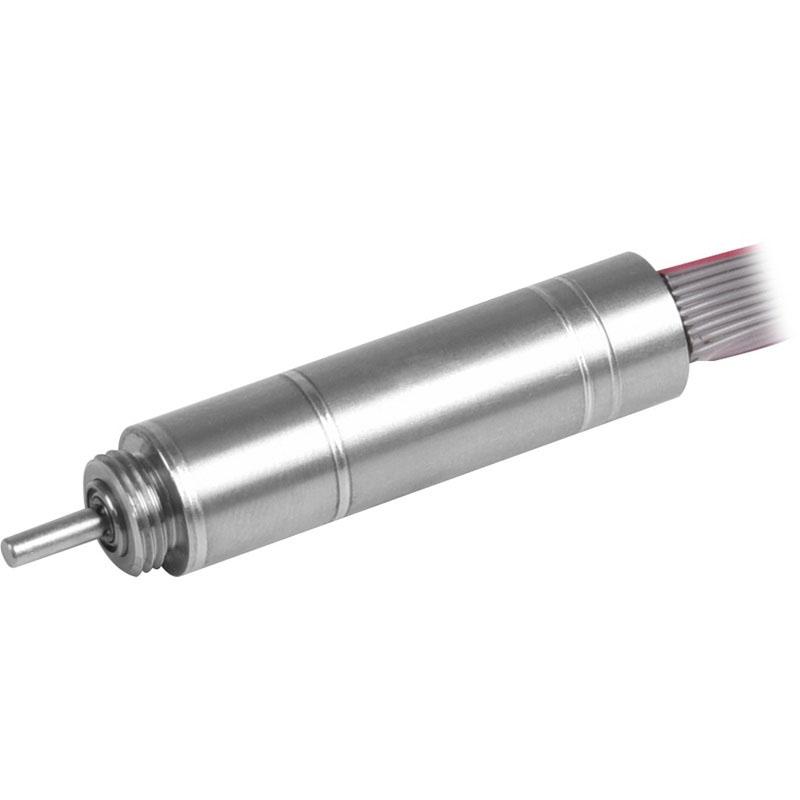

Featured product media

Quick Facts

SLH10CH025-12 Slotless BLDC Motors

Specifications:
  • 0.390 in Frame Size
  • 0.24 A Rated Current
  • Rated Torque
  • 12 VDC Nominal Voltage
  • 0.980 in Length

Specifications

Motor Specifications

Frame Size0.390 in
Motor TypeMotor Only
Weight0.032 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 31900 RPM
No Load Current50 mA
Nominal Speed18300 RPM
Rated Speed18300 RPM
Rated Current0.24 A
Stall Torque0.5084 oz-in
Stall Current1 A
Max. Efficiency62%

Motor Characteristics

Terminal Resistance11.4 ohm
Terminal Inductance0.15 mH
Speed/Torque Gradient 1196.0544 RPM/oz-in
Speed Constant2660 RPM/V
Mechanical Time Constant5.59 ms
Rotor Inertia0 oz-in²

Motor Mechanical Data

Max. Radial Load0.45 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor327 s
Thermal time constant winding0.56 s

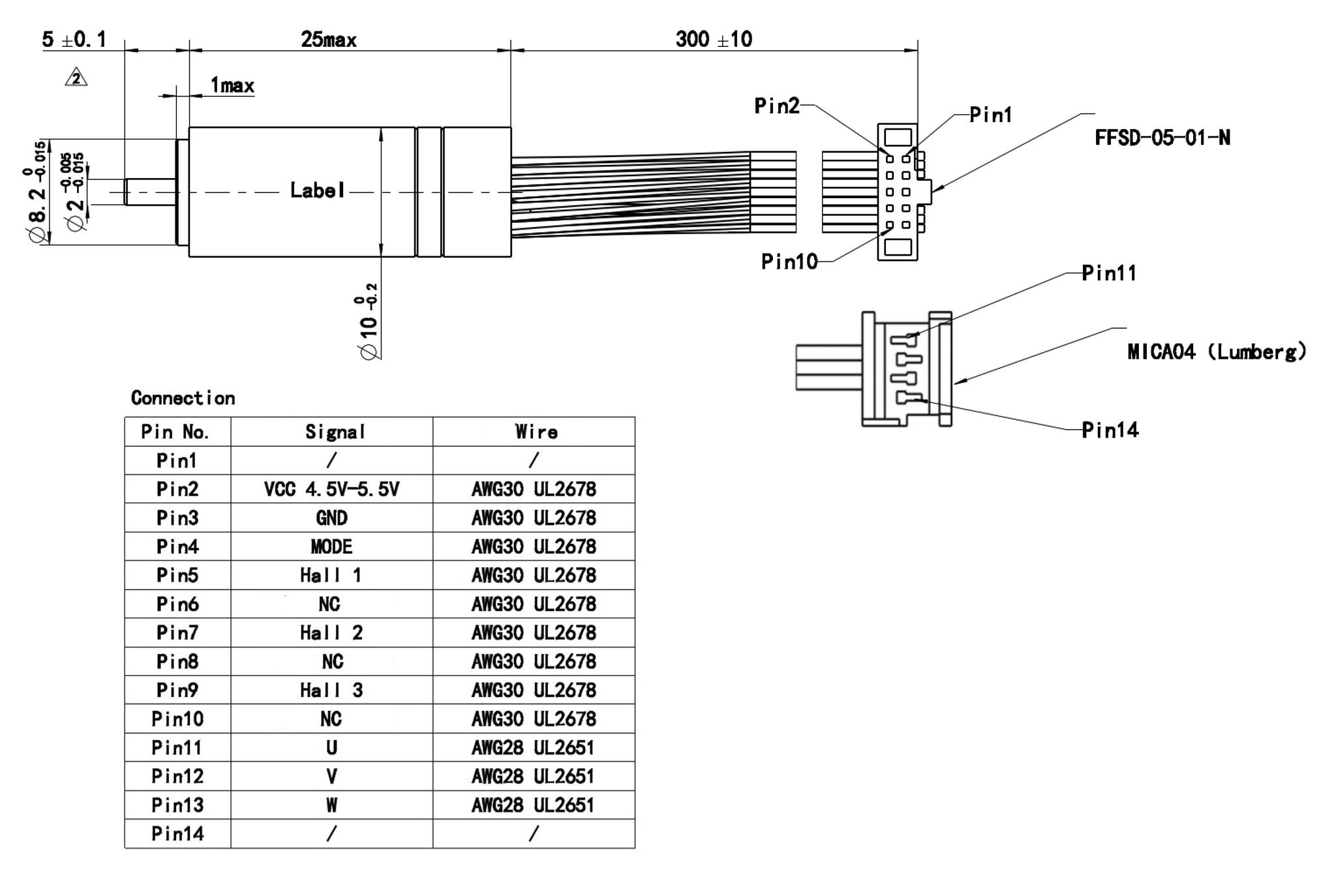

Dimensions

ModelDIM. A (length) in MAX
SLH10CH025-120.980 in

Performance Curve

SLH10CH025-12
@12 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLH10CH025 Series

Downloads

SLH10CH025-12 Configured Datasheet (PDF)
