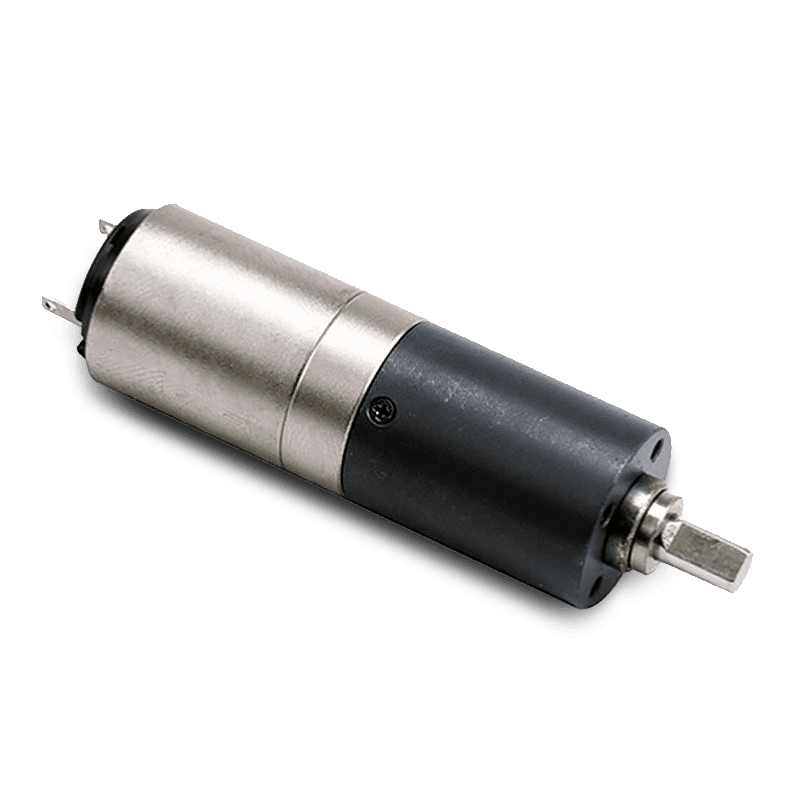

CL016CN025 SeriesCoreless Brushed DC motor
Features and Benefits:
- Ironless Design Eliminates Cogging
- Increased Efficiency and Torque
- Low Inertia Rotor for Fast Response Time
- Cost Effective Motor and Implementation
Specifications:
- 0.630 in Frame Size
- 0.207 to 0.364 A Rated Current
- 1.1329 to 70.806 oz-in Rated Torque
- 12 VDC Nominal Voltage
- 1.7 to 1.98 in Length
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CL016CN025-12-19G | 0.630 in | 1.700 in | 12 VDC | 4.2484 oz-in | 552 RPM | NA | 0.096 lbs | 0.207 A | quote | ||
| CL016CN025-12-G19 | 0.630 in | 1.700 in | 12 VDC | 296 RPM | 4.5316 oz-in | 552 RPM | 39.8 mA | 19:1 | 0.095 lbs | 0.207 A | quote |
| CL016CN025-12-G369 | 0.630 in | 1.980 in | 12 VDC | 15 RPM | 62.5925 oz-in | 29 RPM | 54 mA | 369:1 | 0.111 lbs | 0.207 A | quote |
| CL016CN025-12-G4 | 0.630 in | 1.700 in | 12 VDC | 1422 RPM | 1.1329 oz-in | 2652 RPM | 32.7 mA | 4:1 | 0.088 lbs | 0.207 A | quote |
| CL016CN025-12-G84 | 0.630 in | 1.840 in | 12 VDC | 67 RPM | 16.1438 oz-in | 126 RPM | 46.9 mA | 84:1 | 0.103 lbs | 0.207 A | quote |
| CL017CN025-12-G19 | 0.670 in | 1.700 in | 12 VDC | 390 RPM | 8.1568 oz-in | 540 RPM | 26.4 mA | 19:1 | 0.108 lbs | 0.364 A | quote |
| CL017CN025-12-G369 | 0.670 in | 1.980 in | 12 VDC | 23 RPM | 70.806 oz-in | 28 RPM | 35.5 mA | 369:1 | 0.123 lbs | 0.222 A | quote |
| CL017CN025-12-G4 | 0.670 in | 1.700 in | 12 VDC | 1704 RPM | 2.11 oz-in | 2358 RPM | 21.9 mA | 4:1 | 0.1 lbs | 0.364 A | quote |
| CL017CN025-12-G84 | 0.670 in | 1.840 in | 12 VDC | 89 RPM | 31.806 oz-in | 123 RPM | 31 mA | 84:1 | 0.116 lbs | 0.364 A | quote |
Dimensions
| Model | DIM. A (length) in |
|---|---|
| CL016CN025-12-19G | 1.700 in |
| CL016CN025-12-G19 | 1.700 in |
| CL016CN025-12-G369 | 1.980 in |
| CL016CN025-12-G4 | 1.700 in |
| CL016CN025-12-G84 | 1.840 in |
| CL017CN025-12-G19 | 1.700 in |
| CL017CN025-12-G369 | 1.980 in |
| CL017CN025-12-G4 | 1.700 in |
| CL017CN025-12-G84 | 1.840 in |
