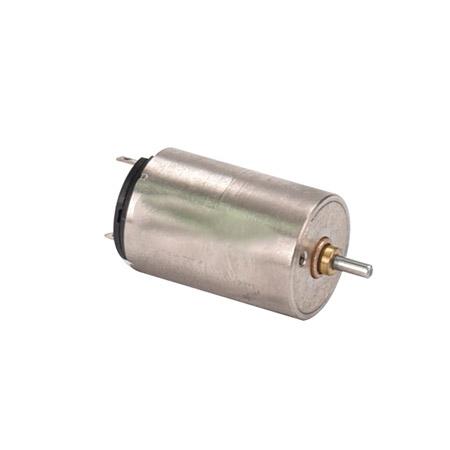

CL013CN020 SeriesCoreless Brushed DC motor
Features and Benefits:
- Ironless Design Eliminates Cogging
- Increased Efficiency and Torque
- Low Inertia Rotor for Fast Response Time
- Cost Effective Motor and Implementation
Specifications:
- 0.510 in Frame Size
- 0.14 to 0.59 A Rated Current
- 0.1558 to 42.4836 oz-in Rated Torque
- 6 to 15 VDC Nominal Voltage
- 0.78 to 1.87 in Length
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CL013CN020-06 | 0.510 in | 0.780 in | 6 VDC | 8100 RPM | 0.2464 oz-in | 12100 RPM | 34.5 mA | NA | 0.031 lbs | 0.409 A | quote |
| CL013CN020-12 | 0.510 in | 0.780 in | 12 VDC | 10250 RPM | 0.1558 oz-in | 12900 RPM | 12 mA | NA | 0.031 lbs | 0.14 A | quote |
| CL013CN020-12-G16 | 0.510 in | 1.540 in | 12 VDC | 527 RPM | 3.1721 oz-in | 784 RPM | 37.7 mA | 16:1 | 0.06 lbs | 0.217 A | quote |
| CL013CN020-12-G271 | 0.510 in | 1.830 in | 12 VDC | 32 RPM | 40.0762 oz-in | 48 RPM | 55 mA | 271:1 | 0.072 lbs | 0.217 A | quote |
| CL013CN020-12-G315 | 0.510 in | 1.830 in | 12 VDC | 29 RPM | 42.4836 oz-in | 41 RPM | 55 mA | 315:1 | 0.073 lbs | 0.201 A | quote |
| CL013CN020-12-G4 | 0.510 in | 1.540 in | 12 VDC | 2139 RPM | 0.8922 oz-in | 3182 RPM | 29.1 mA | 4:1 | 0.041 lbs | 0.217 A | quote |
| CL013CN020-12-G425 | 0.510 in | 1.830 in | 12 VDC | 23 RPM | 42.4836 oz-in | 30 RPM | 55 mA | 425:1 | 0.073 lbs | 0.159 A | quote |
| CL013CN020-12-G66 | 0.510 in | 1.690 in | 12 VDC | 130 RPM | 11.329 oz-in | 193 RPM | 46.2 mA | 66:1 | 0.066 lbs | 0.217 A | quote |
| CL013CN020-12-G90 | 0.510 in | 1.690 in | 12 VDC | 96 RPM | 15.1525 oz-in | 143 RPM | 46.3 mA | 90:1 | 0.066 lbs | 0.217 A | quote |
| CL013CN020-15-16G | 0.510 in | 1.540 in | 15 VDC | 3.1155 oz-in | 753 RPM | NA | 0.06 lbs | 0.166 A | quote | ||
| CL013CN020-15-G16 | 0.510 in | 1.540 in | 15 VDC | 3.1155 oz-in | 753 RPM | NA | 0.06 lbs | 0.166 A | quote | ||
| CL013CN028-06-16G | 0.510 in | 1.870 in | 6 VDC | 6.0893 oz-in | 605 RPM | NA | 0.075 lbs | 0.59 A | quote |
Dimensions
| Model | DIM. A (length) in |
|---|---|
| CL013CN020-06 | 0.780 in |
| CL013CN020-12 | 0.780 in |
| CL013CN020-12-G16 | 1.540 in |
| CL013CN020-12-G271 | 1.830 in |
| CL013CN020-12-G315 | 1.830 in |
| CL013CN020-12-G4 | 1.540 in |
| CL013CN020-12-G425 | 1.830 in |
| CL013CN020-12-G66 | 1.690 in |
| CL013CN020-12-G90 | 1.690 in |
| CL013CN020-15-16G | 1.540 in |
| CL013CN020-15-G16 | 1.540 in |
| CL013CN028-06-16G | 1.870 in |
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
