CL013CN020 Series

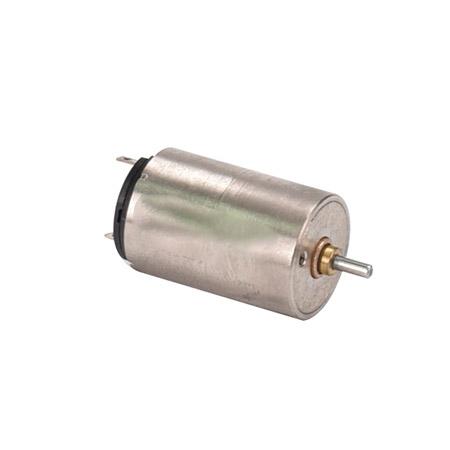

CL013CN020-06
Coreless Brushed DC motor

Featured product media

Quick Facts

CL013CN020-06 Coreless DC Motors

Specifications:
  • 0.510 in Frame Size
  • 0.409 A Rated Current
  • 0.2464 oz-in Rated Torque
  • 6 VDC Nominal Voltage
  • 0.780 in Length

Specifications

Motor Specifications

Frame Size0.510 in
Motor TypeMotor Only (No Gearbox)
Weight0.031 lbs
Number of pole
Number of Phases
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage6 VDC
No Load Speed 12100 RPM
No Load Current34.5 mA
Nominal Speed8100 RPM
Nominal Torque (Max Cont. Torque)0.2464 oz-in
Nominal Current (Max Cont. Current)0.409 A
Rated Speed8100 RPM
Rated Torque0.2464 oz-in
Rated Current0.409 A
Stall Torque
Stall Current1.13 A
Max. Efficiency73%

Motor Characteristics

Terminal Resistance5.4 ohm
Terminal Inductance0.099 mH
Speed/Torque Gradient 349.9231 RPM/oz-in
Torque Constant
Speed Constant2110 RPM/V
Mechanical Time Constant9.19 ms
Rotor Inertia0.002 oz-in²

Motor Mechanical Data

Bearings
Axial play0.012 in
Radial play
Max. Axial Load
Max. Radial Load
Distance From Flange For Radial Load
Max Force For Press Fit
Max Speed (Mechanical)13000 RPM

Motor Thermal Data

Ambient Temperature-4 °F to 149.00 °F
Insulation Class
Max winding temperature212.00 °F
Thermal resistance (Housing-Ambient)123.08 °F/W
Thermal resistance (Winding-Housing)62.24 °F/W
Thermal time constant motor76 s
Thermal time constant winding4.14 s

Gearhead Specifications

Type Of Gearhead
Gearhead Reduction Ratio
Nominal Reduction Ratio
Absolute Reduction Ratio
Number Of Stages

Encoder Specifications

Encoder Type
Steps Per Turn
Counts Per Turn
Number Of Channels
Clock Rate
Time Out
Signal Protocol

Dimensions

ModelDIM. A (length) in MAX
CL013CN020-060.780 in

Performance Curve

CL013CN020-06
@6 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

CL013CN020 Series

Downloads

CL013CN020-06 Configured Datasheet (PDF)
