X5718 Series
X5718-077-20

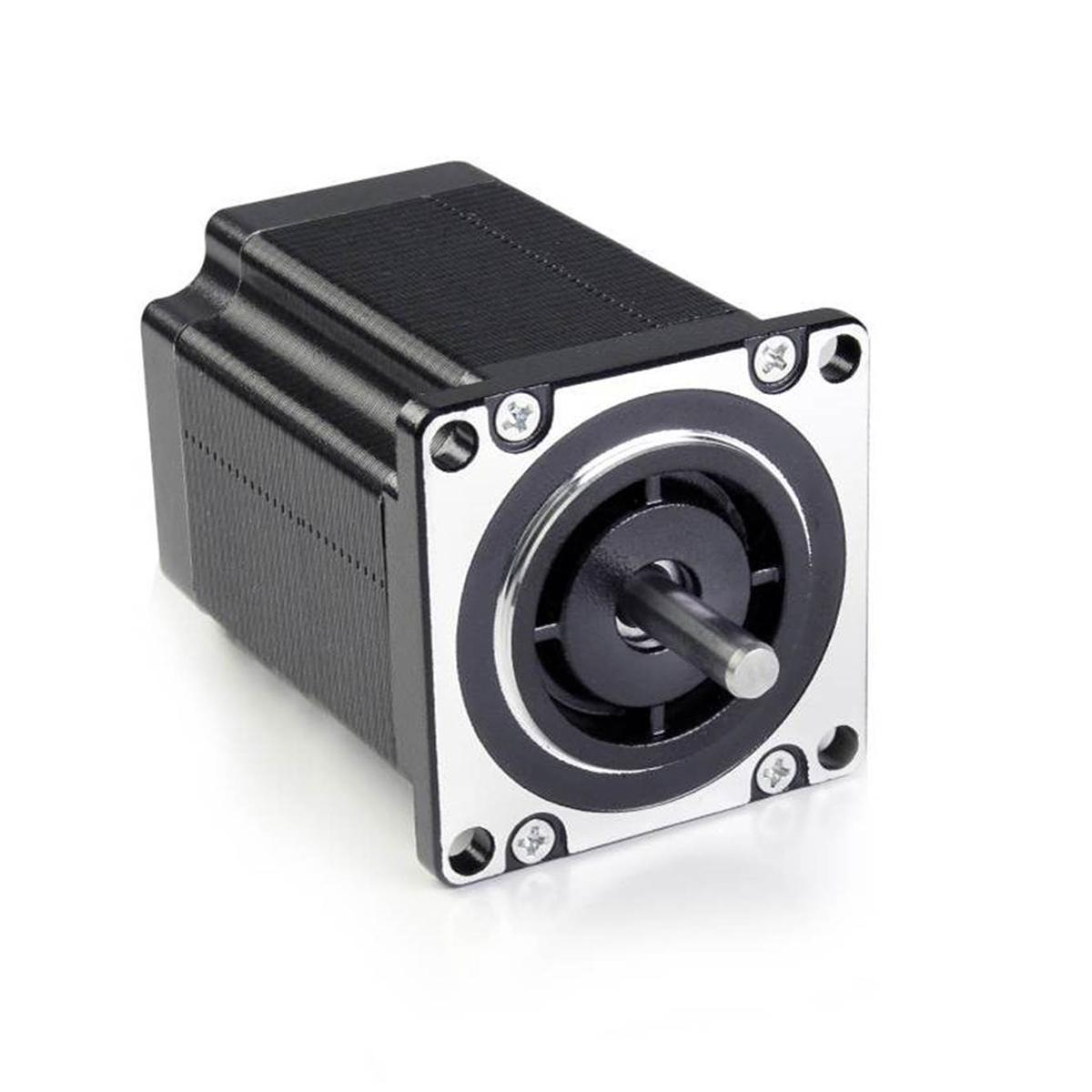

Extreme Torque Hybrid Stepper Motor

Specifications:
  • NEMA 23 (2.220 in) Frame Size
  • 1.8° Step Angle
  • 3.030 in Length
  • 467.32 oz-in Holding Torque

Unit Price:

$143.26

Inventory:

10 Available in 4 Business Days

Ships:

4 Business Days

Part Number:

X5718-077-20

Looking For Higher Volume?

Rapid Prototyping Motors

Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.

Configure
Card image

Configure your motor using the online configuration tool.

Test
Card image

Start testing within your application with minimum downtime.

Iterate
Card image

We’ll work with you to nail down the final design.

Dimensions

ModelDIM. A (length) in
X5718-077-203.030 in

Torque Curves

Speed

Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)

Motor Specifications

Base Motor Part NumberX5718-077-20
Step Angle1.8°
Frame Size2.220 in
NEMA SizeNEMA 23
Body Length 3.030 in
Current (AMP)2 AMP
Holding Torque 467.32 oz-in
Resistance2.3 ohm
Rotor Inertia2 oz-in²
Number of leads4
ConnectionBipolar
Weight1.852 lbs

Operating Specifications

Radial Play0.001 in @ 1 lbs
End Play0.003 in @ 3 lbs
Shaft Run Out0.002 TIR
Concentricity of Mounting Pilot to Shaft0.003 TIR
Perpendicularity of Mounting Pilot to Face0.003 TIR
Max Radial Load at Dimension "K" from mounting face15 lbs
Dimension "K"0.550 in
Max Axial Load9 lbs
Maximum Case Temperature176.00 °F maximum
Ambient Temperature-4 °F to 122.00 °F
Storage Temperature-4 °F to 212.00 °F
Humidity Range (%) 85% or less, non-condensing
Magnet Wire InsulationClass B 130 deg C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength500 VDC for 1 min

Gearbox Options

StageDimension A
1106mm (4.17in)
2127.5mm (5.02in)
Content image
Stage12
Ratio5102050
Nominal Output TorqueNm60405060
Emergency Stop TorqueNm3 times nominal output torque
Nominal Input SpeedRPM5000
Max Input SpeedRPM10000
Max Radial LoadN1377
Max Axial LoadN765
Efficiency η%9085
Backlasharcmin<5<7
Protection Class IP65
Service Lifehr20000
Weightkg1.41.6
Operating Temperature°C-20 to 90
Lubrication synthetic lubrication oils
Noise (n = 3000 rpm)dB(A)56545855
Mass Moment of Inertiakg-cm²0.130.130.030.03
Content image

Features And Benefits

The X5718 Series Motors are High Power Density motors ideal for applications that require higher speed and torque or increased efficiency.

Higher Dynamic Torque



Content image



Higher power density means that X-Series can deliver more torque at your targeted speed than competitor’s motor of the same size. This is thanks to our unique motor design which provides exceptional torque to size ratio.  X-Series are ideal for applications requiring higher dynamic torque.

Higher Speed



Content image



High power density means that X-Series can deliver higher speed at your target torque than a competitor’s motor. Our unique motor design allows for greater efficiency, which extends the speed range of the motor at specified torque points while maintaining the same voltage as the competing motors.  X-Series are ideal for applications that require moving load at higher speeds.

Smaller Size and Weight

Content image

Higher power density means that you can get more performance out of a smaller and lighter package. X-Series offer similar performance to larger frame size, or longer stack length motors. This makes them ideal for space or weight constrained applications.

Higher Efficiency Per Watt

Content image

Higher power density means that X-Series can operate more efficiently at your specified speed and torque requirements. This is especially important for applications that are sensitive to power draw, such as battery-operated devices, where every watt matters. The result is that X-Series can deliver the same performance as competing integrated motors while drawing less power.

Reduced Heat Generation

Content image

The high efficiency and low power draw of X-Series results in the motor generating less heat. Furthermore, the motor’s winding can be customized to operate at its highest efficiency for the application. This reduces heat generation even further. X-Series are ideal for applications where heat generation needs to be minimized.

Efficient at Lower Voltage

Content image

Higher power density means that torque at speed can be achieved at a lower voltage than competing motors.  X-Series are ideal for applications that are voltage constrained.

X-Series can be customized further to operate at their highest efficiency during a specified workload. This results in faster acceleration and more torque during the application’s workload

Customizations & Optimizations

Lin Engineering can ensure that your hybrid stepper motor is optimized to deliver the required performance for your specific application, whether it’s increasing torque at a specific speed range, reducing noise or vibration, or optimizing for minimal power consumption, or making specific modification  to ensure proper and native fit within your assembly.

Content image

Customization Services Include:

  • Optimized Winding
  • Multiple Shaft Options
  • Customized Leads & Connectors
  • Customized Housings & Mountings
  • Bearings & Lubricants
  • Mechatronic Solutions
  • Environmental Protection
  • Drivers & Controllers, Encoders, Gearboxes & Accessories



Learn More About Motor Customizations & Optimizations

The result is that you’ll get a motor that is fully optimized for your specific applications and configured to seamlessly fit with your assembly. This reduces your product's complexity, and increases the speed and ease of the assembly of your final product.



Speak with one of our sales representatives about your specific application needs by filling out a request for a quote.
