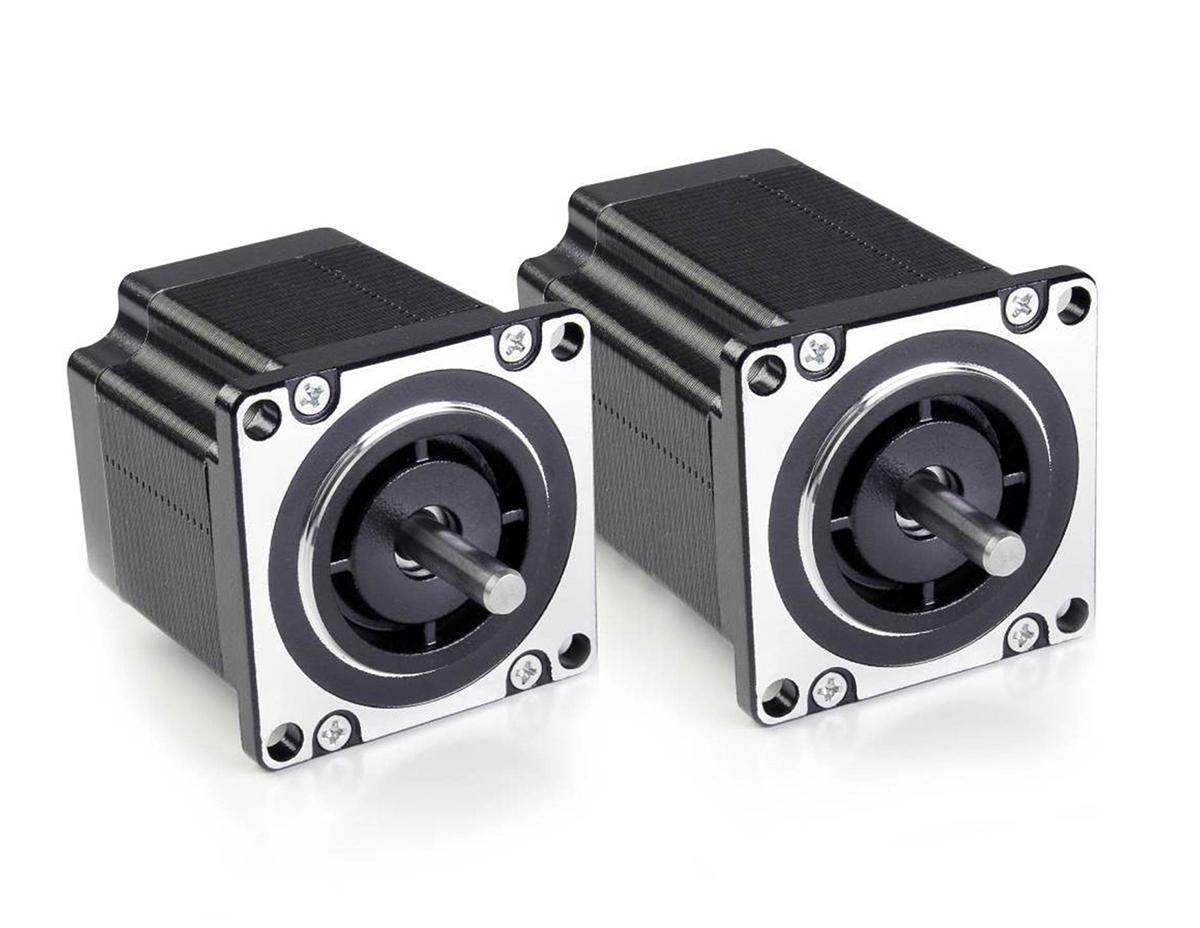

X5718 Series
Extreme Torque Hybrid Stepper Motor

Features and Benefits:
  • Higher Dynamic Torque
  • Higher Speed
  • Smaller Size And Weight
  • Higher Efficiency Per Watt
  • Reduced Heat Generation
Specifications:
  • NEMA 23 (2.220 in) Frame Size
  • 1.8° Step Angle
  • 2.17 to 3.03 in Length
  • 311.55 to 467.32 oz-in Holding Torque

Models

Model #NEMA sizeFrame sizeStep AngleConnection TypeLength, inCurrent AMPHolding Torque, oz-inResistanceInertia, oz-in²Weight, lbs# of LeadsAvailability
X5718-055-10NEMA 232.220 in1.8°Bipolar2.170 in1 AMP325.71 oz-in7.61.18 oz-in²1.323 lbs4Online
X5718-055-22NEMA 232.220 in1.8°Bipolar2.170 in2.2 AMP325.71 oz-in1.61.18 oz-in²1.323 lbs4Online
X5718-055-55NEMA 232.220 in1.8°Bipolar2.170 in5.5 AMP311.55 oz-in0.281.18 oz-in²1.323 lbs4Online
X5718-077-10NEMA 232.220 in1.8°Bipolar3.030 in1 AMP467.32 oz-in92 oz-in²1.852 lbs4Online
X5718-077-20NEMA 232.220 in1.8°Bipolar3.030 in2 AMP467.32 oz-in2.32 oz-in²1.852 lbs4Online
X5718-077-50NEMA 232.220 in1.8°Bipolar3.030 in5 AMP467.32 oz-in0.392 oz-in²1.852 lbs4Online

Torque Curves

Speed

  • X5718-055-10
  • X5718-055-22
  • X5718-055-55
  • X5718-077-10
  • X5718-077-20
  • X5718-077-50

Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)

Dimensions

ModelDIM. A (length) in
X5718-055-102.170 in
X5718-055-222.170 in
X5718-055-552.170 in
X5718-077-103.030 in
X5718-077-203.030 in
X5718-077-503.030 in

Operating Specifications

Radial Play0.001 in @ 1 lbs
End Play0.003 in @ 3 lbs
Shaft Run Out0.002 TIR
Concentricity of Mounting Pilot to Shaft0.003 TIR
Perpendicularity of Mounting Pilot to Face0.003 TIR
Max Radial Load at Dimension "K" from mounting face15 lbs
Dimension "K"0.550 in
Max Axial Load9 lbs
Maximum Case Temperature176.00 °F maximum
Ambient Temperature-4 °F to 122.00 °F
Storage Temperature-4 °F to 212.00 °F
Humidity Range (%) 85% or less, non-condensing
Magnet Wire InsulationClass B 130 deg C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength500 VDC for 1 min

Gearbox Options

StageDimension A
1106mm (4.17in)
2127.5mm (5.02in)
Content image
Stage12
Ratio5102050
Nominal Output TorqueNm60405060
Emergency Stop TorqueNm3 times nominal output torque
Nominal Input SpeedRPM5000
Max Input SpeedRPM10000
Max Radial LoadN1377
Max Axial LoadN765
Efficiency η%9085
Backlasharcmin<5<7
Protection Class IP65
Service Lifehr20000
Weightkg1.41.6
Operating Temperature°C-20 to 90
Lubrication synthetic lubrication oils
Noise (n = 3000 rpm)dB(A)56545855
Mass Moment of Inertiakg-cm²0.130.130.030.03
Content image

Features And Benefits

The X5718 Series Motors are High Power Density motors ideal for applications that require higher speed and torque or increased efficiency.

Higher Dynamic Torque



Content image



Higher power density means that X-Series can deliver more torque at your targeted speed than competitor’s motor of the same size. This is thanks to our unique motor design which provides exceptional torque to size ratio.  X-Series are ideal for applications requiring higher dynamic torque.

Higher Speed



Content image



High power density means that X-Series can deliver higher speed at your target torque than a competitor’s motor. Our unique motor design allows for greater efficiency, which extends the speed range of the motor at specified torque points while maintaining the same voltage as the competing motors.  X-Series are ideal for applications that require moving load at higher speeds.

Smaller Size and Weight

Content image

Higher power density means that you can get more performance out of a smaller and lighter package. X-Series offer similar performance to larger frame size, or longer stack length motors. This makes them ideal for space or weight constrained applications.

Higher Efficiency Per Watt

Content image

Higher power density means that X-Series can operate more efficiently at your specified speed and torque requirements. This is especially important for applications that are sensitive to power draw, such as battery-operated devices, where every watt matters. The result is that X-Series can deliver the same performance as competing integrated motors while drawing less power.

Reduced Heat Generation

Content image

The high efficiency and low power draw of X-Series results in the motor generating less heat. Furthermore, the motor’s winding can be customized to operate at its highest efficiency for the application. This reduces heat generation even further. X-Series are ideal for applications where heat generation needs to be minimized.

Efficient at Lower Voltage

Content image

Higher power density means that torque at speed can be achieved at a lower voltage than competing motors.  X-Series are ideal for applications that are voltage constrained.

X-Series can be customized further to operate at their highest efficiency during a specified workload. This results in faster acceleration and more torque during the application’s workload

Customizations & Optimizations

Lin Engineering can ensure that your hybrid stepper motor is optimized to deliver the required performance for your specific application, whether it’s increasing torque at a specific speed range, reducing noise or vibration, or optimizing for minimal power consumption, or making specific modification  to ensure proper and native fit within your assembly.

Content image

Customization Services Include:

  • Optimized Winding
  • Multiple Shaft Options
  • Customized Leads & Connectors
  • Customized Housings & Mountings
  • Bearings & Lubricants
  • Mechatronic Solutions
  • Environmental Protection
  • Drivers & Controllers, Encoders, Gearboxes & Accessories



Learn More About Motor Customizations & Optimizations

The result is that you’ll get a motor that is fully optimized for your specific applications and configured to seamlessly fit with your assembly. This reduces your product's complexity, and increases the speed and ease of the assembly of your final product.



Speak with one of our sales representatives about your specific application needs by filling out a request for a quote.

Downloads

Motor Numbering System (PDF)
