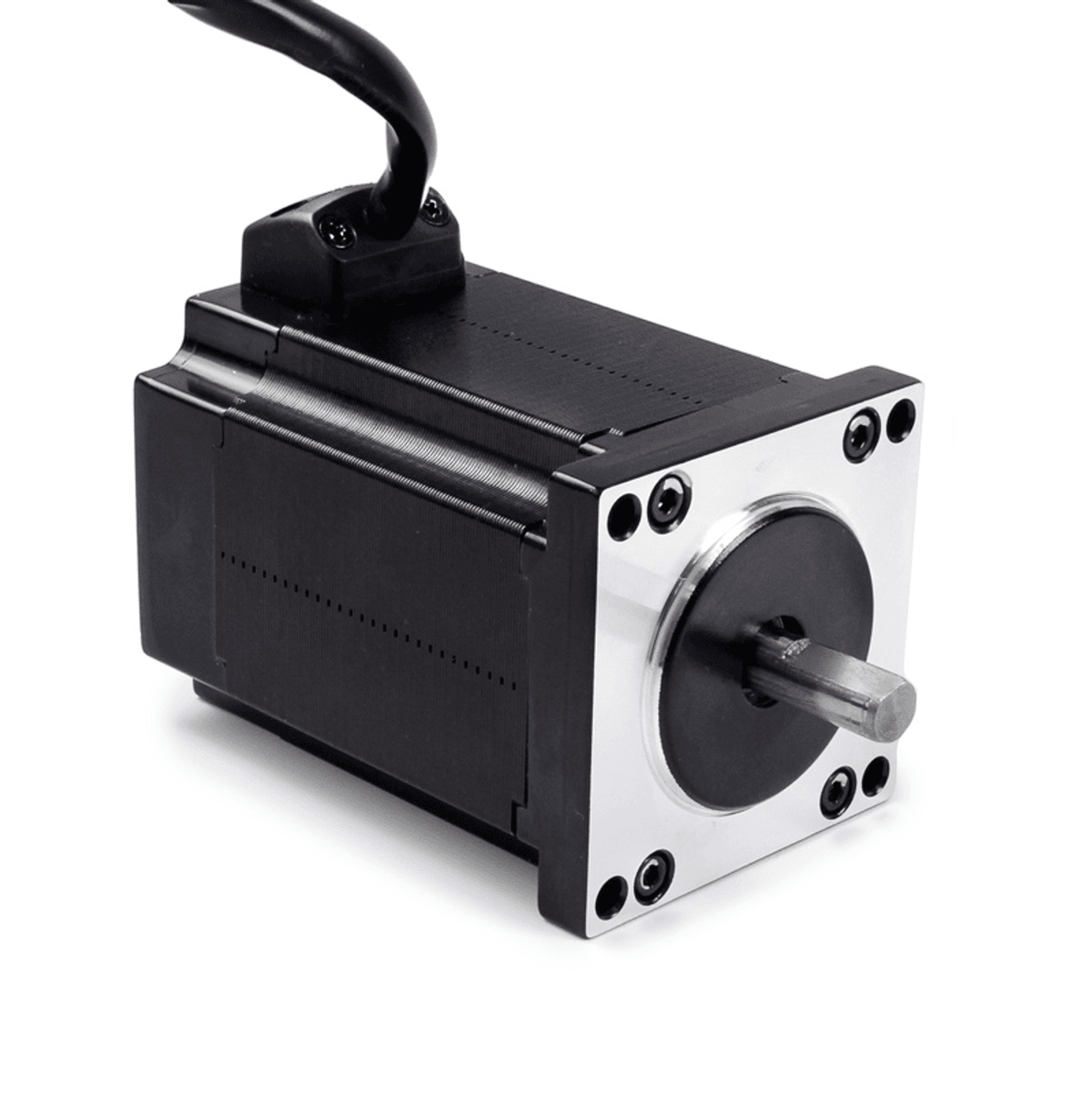

BL23 Series - Rapid Prototyping Motors

BL23E22-01

BLDC Motor

Unit Price:

$99.58

Inventory:

10 Available in 2 Business Days

Ships:

2 Business Days

Part Number:

BL23E22-01

No Gearbox
Single Shaft
Flat Shaft
No Encoder
- empty -
- empty -
Molex Connector
12 inch (30.50 cm)
Looking For Higher Volume?

Motor Specifications

Phase3
Frame Size2.200 in
Body Length (Dimension A)2.190 in
Rated Voltage24 VDC
Rated Output Power 60 W
Rated Speed4000 RPM
Max Speed5000 RPM
Rated Torque21.24 oz-in
Rated Current3.2 A
Max Torque41.07 oz-in
Resistance0.48 ohm
Terminal Inductance 0.45 mH
Torque Constant6.373 oz-in/A
Rotor Inertia0.809 oz-in²
Weight1.41 lbs
Electrical Time Constant0.9 ms
Mechanical Time Constant3.8 ms

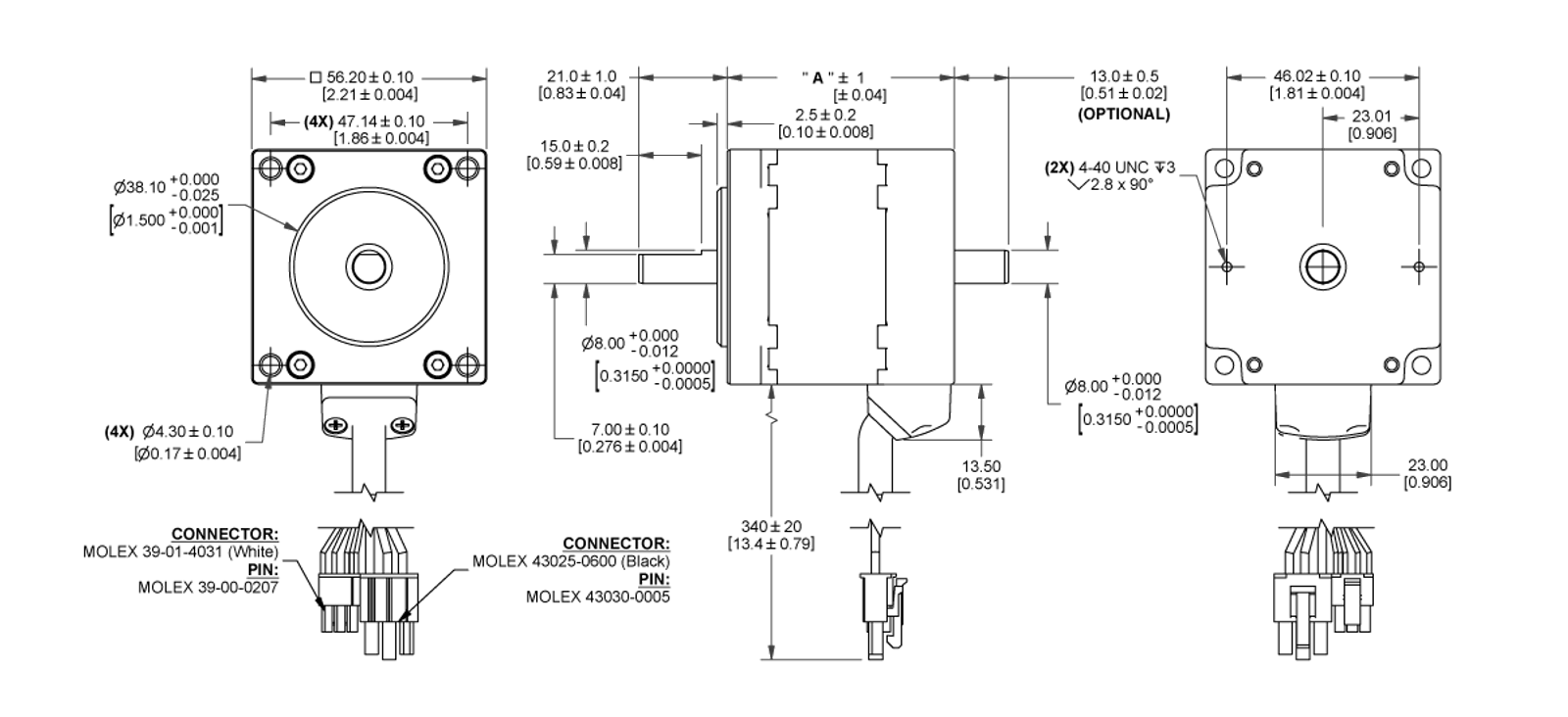

Dimensions

ModelDIM. A (length) in
BL23E22-012.190 in
Dimensions

Torque Curves

  • Peak Range
  • Continuous Range

Speed

RPM

Motor Operating Specifications

Hall Effect Angle120° electrical Angle
Radial Play0.002 in @ 0.99 lbs
End Play0.003 in @ 99.21 lbs
Max. Radial Force0.787 in @ 16.80 lbs
Max. Axial Force3.37 lbs
Insulation ClassClass B
Dielectric Strength500 VDC for 1 minute
Insulation Resistance100 Ω Min. 500 VDC
Ambient Operating Temperature-4 ° to 122 °F
Storage Temperature-4 ° to 212 °F
Humidity Range (%) 85% (RH) non-condensing
Direction Of RotationCCW

Pin Outs

Content image

Encoder Options

E5S - Single-Ended Optical Encoder

Content image

View E5S Specifications



E5D - Differential Optical Encoder

Content image

View E5D Specifications

Gearbox Options

StageDimension A
1106mm (4.17in)
2127.5mm (5.02in)
Content image
Stage12
Ratio5102050
Nominal Output TorqueNm60405060
Emergency Stop TorqueNm3 times nominal output torque
Nominal Input SpeedRPM5000
Max Input SpeedRPM10000
Max Radial LoadN1377
Max Axial LoadN765
Efficiency η%9085
Backlasharcmin<5<7
Protection Class IP65
Service Lifehr20000
Weightkg1.41.6
Operating Temperature°C-20 to 90
Lubrication synthetic lubrication oils
Noise (n = 3000 rpm)dB(A)56545855
Mass Moment of Inertiakg-cm²0.130.130.030.03
Content image

BL23 Series
