SLU16CD024 Series
SLU16CD024-12
Slotless BLDC Motor

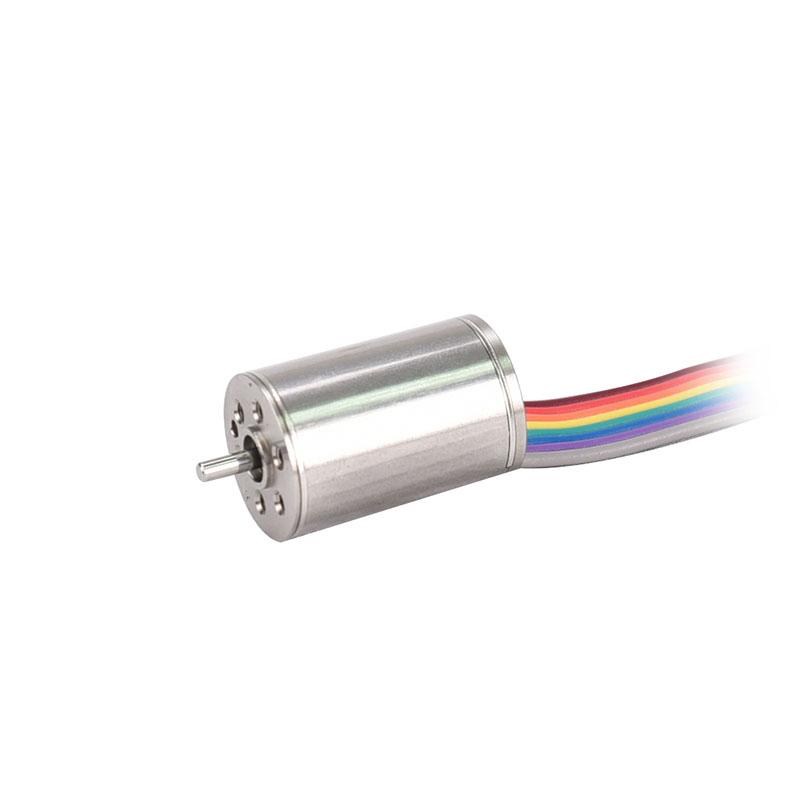

Featured product media

Quick Facts

SLU16CD024-12 Slotless BLDC Motors

Specifications:
  • 0.630 in Frame Size
  • 0.383 A Rated Current
  • 0.354 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 1.320 in Length

Specifications

Motor Specifications

Frame Size0.630 in
Motor TypeMotor Only
Weight0.077 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 15250 RPM
No Load Current45 mA
Nominal Speed9320 RPM
Rated Speed9965 RPM
Rated Torque0.354 oz-in
Rated Current0.383 A
Stall Torque1.2603 oz-in
Stall Current1.16 A
Max. Efficiency66%

Motor Characteristics

Speed/Torque Gradient 239.8906 RPM/oz-in
Speed Constant1250 RPM/V
Mechanical Time Constant5.32 ms
Rotor Inertia0.002 oz-in²

Motor Mechanical Data

Max. Radial Load1.349 lbf

Motor Thermal Data

Ambient Temperature-40 °F to 212.00 °F
Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor390 s
Thermal time constant winding0.75 s

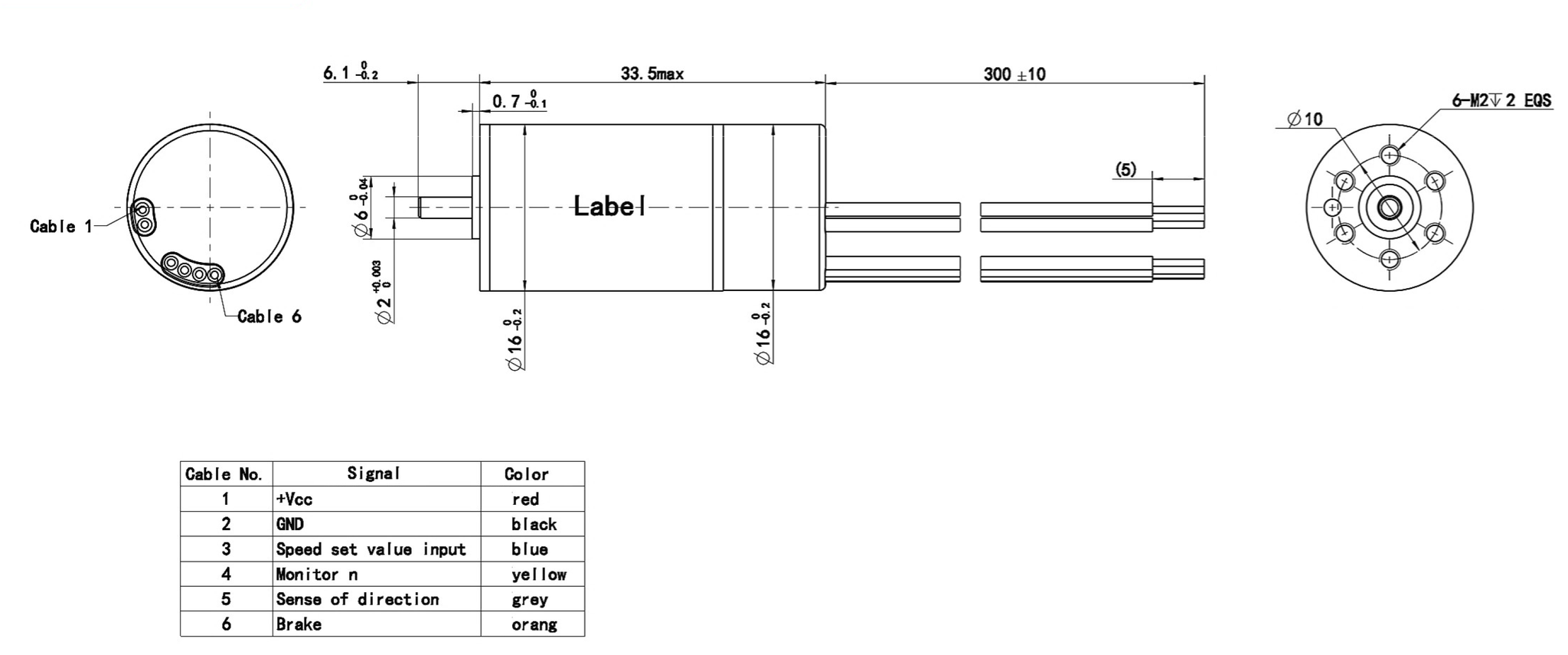

Dimensions

ModelDIM. A (length) in MAX
SLU16CD024-121.320 in

Performance Curve

SLU16CD024-12
@12 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

Downloads

SLU16CD024-12 Configured Datasheet (PDF)
