SLU08CH023 Series
SLU08CH023-12-G72-MS08-1024
Slotless BLDC Motor

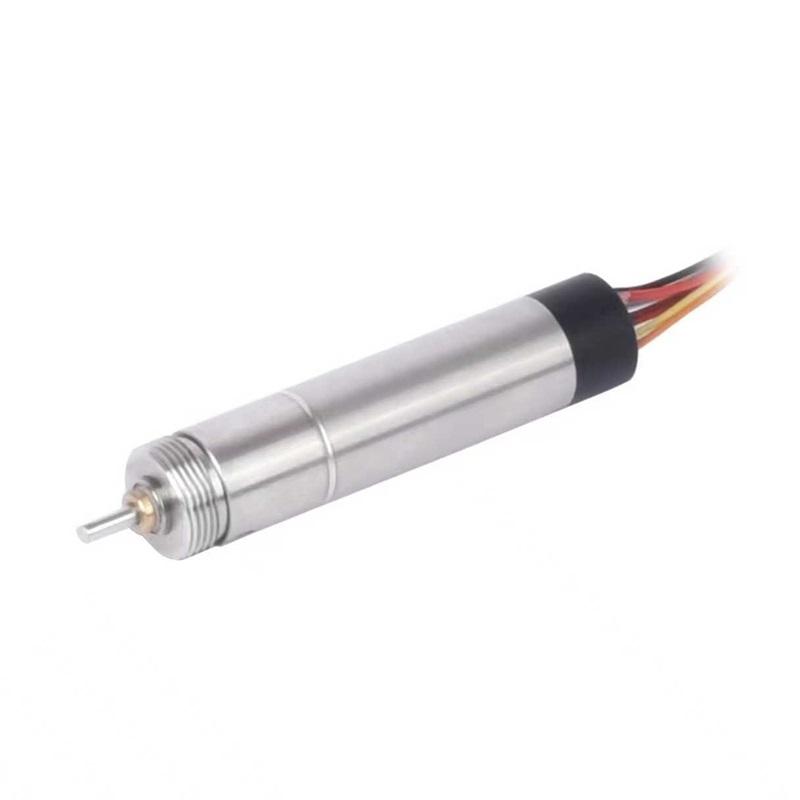

Featured product media

Quick Facts

SLU08CH023-12-G72-MS08-1024 Slotless BLDC Motors

Specifications:
  • 0.310 in Frame Size
  • 0.406 A Rated Current
  • 9.8038 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 1.530 in Length

Specifications

Motor Specifications

Frame Size0.310 in
Motor TypeMotor + Encoder + Gearhead
Weight0.035 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 507 RPM
No Load Current55 mA
Nominal Speed181 RPM
Rated Speed181 RPM
Rated Torque9.8038 oz-in
Rated Current0.406 A
Stall Torque46.4515 oz-in
Stall Current2.22 A
Max. Efficiency49%

Motor Characteristics

Terminal Resistance5.41 ohm
Speed/Torque Gradient 736.5236 RPM/oz-in
Speed Constant3030 RPM/V

Motor Mechanical Data

Max. Radial Load1.124 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F

Gearhead Specifications

Gearhead Reduction Ratio72
Nominal Reduction Ratio72

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

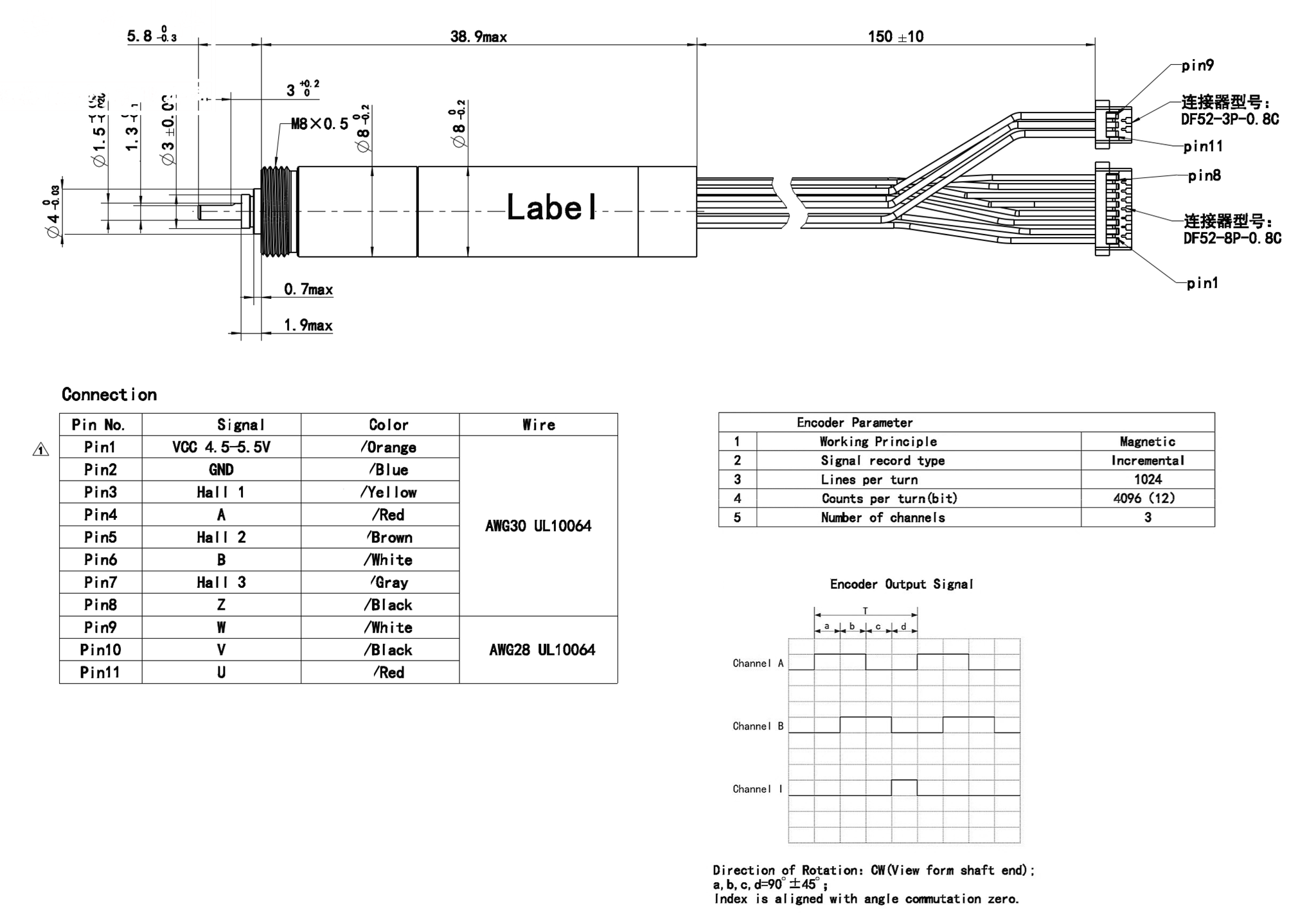

Dimensions

ModelDIM. A (length) in MAX
SLU08CH023-12-G72-MS08-10241.530 in

Performance Curve

SLU08CH023-12-G72-MS08-1024
@12 VDC, 72:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU08CH023 Series

Downloads

SLU08CH023-12-G72-MS08-1024 Configured Datasheet (PDF)
