SLU08CH023 Series
SLU08CH023-12-G17-MS08-1024
Slotless BLDC Motor

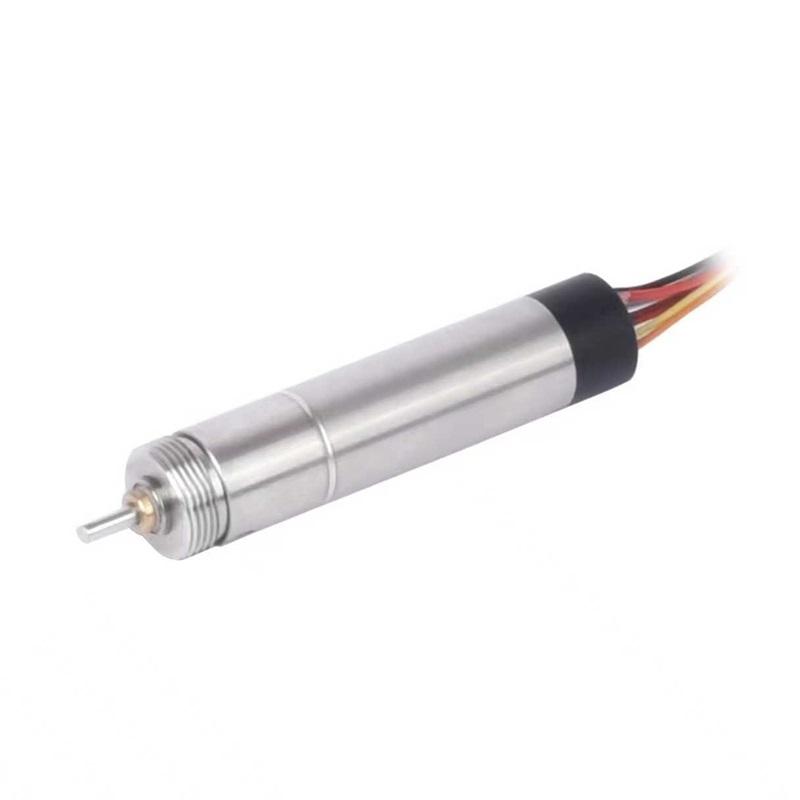

Featured product media

Quick Facts

SLU08CH023-12-G17-MS08-1024 Slotless BLDC Motors

Specifications:
  • 0.310 in Frame Size
  • 0.487 A Rated Current
  • 2.3366 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 1.420 in Length

Specifications

Motor Specifications

Frame Size0.310 in
Motor TypeMotor + Encoder + Gearhead
Weight0.025 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 2014 RPM
No Load Current61.24 mA
Nominal Speed1618 RPM
Rated Speed1618 RPM
Rated Torque2.3366 oz-in
Rated Current0.487 A
Stall Torque14.535 oz-in
Stall Current2.2 A
Max. Efficiency60%

Motor Characteristics

Terminal Resistance5.46 ohm
Terminal Inductance0.10064 mH
Speed/Torque Gradient 741.4801 RPM/oz-in
Speed Constant3026 RPM/V

Motor Mechanical Data

Max. Radial Load1.124 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F

Gearhead Specifications

Gearhead Reduction Ratio17
Nominal Reduction Ratio17

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

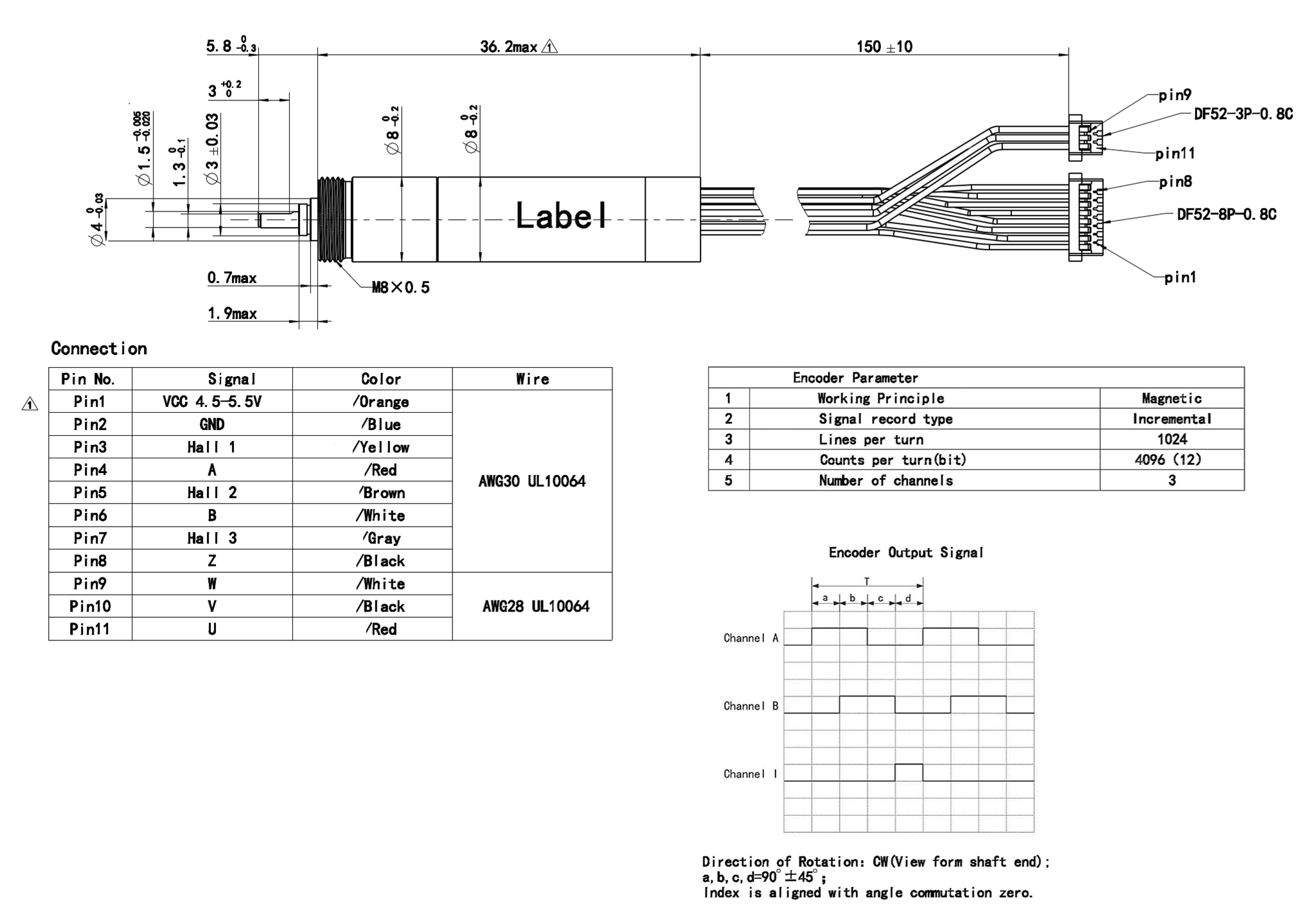

Dimensions

ModelDIM. A (length) in MAX
SLU08CH023-12-G17-MS08-10241.420 in

Performance Curve

SLU08CH023-12-G17-MS08-1024
@12 VDC, 17:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU08CH023 Series

Downloads

SLU08CH023-12-G17-MS08-1024 Configured Datasheet (PDF)
