SLH22CH045 Series
SLH22CH045-36
Slotless BLDC Motor

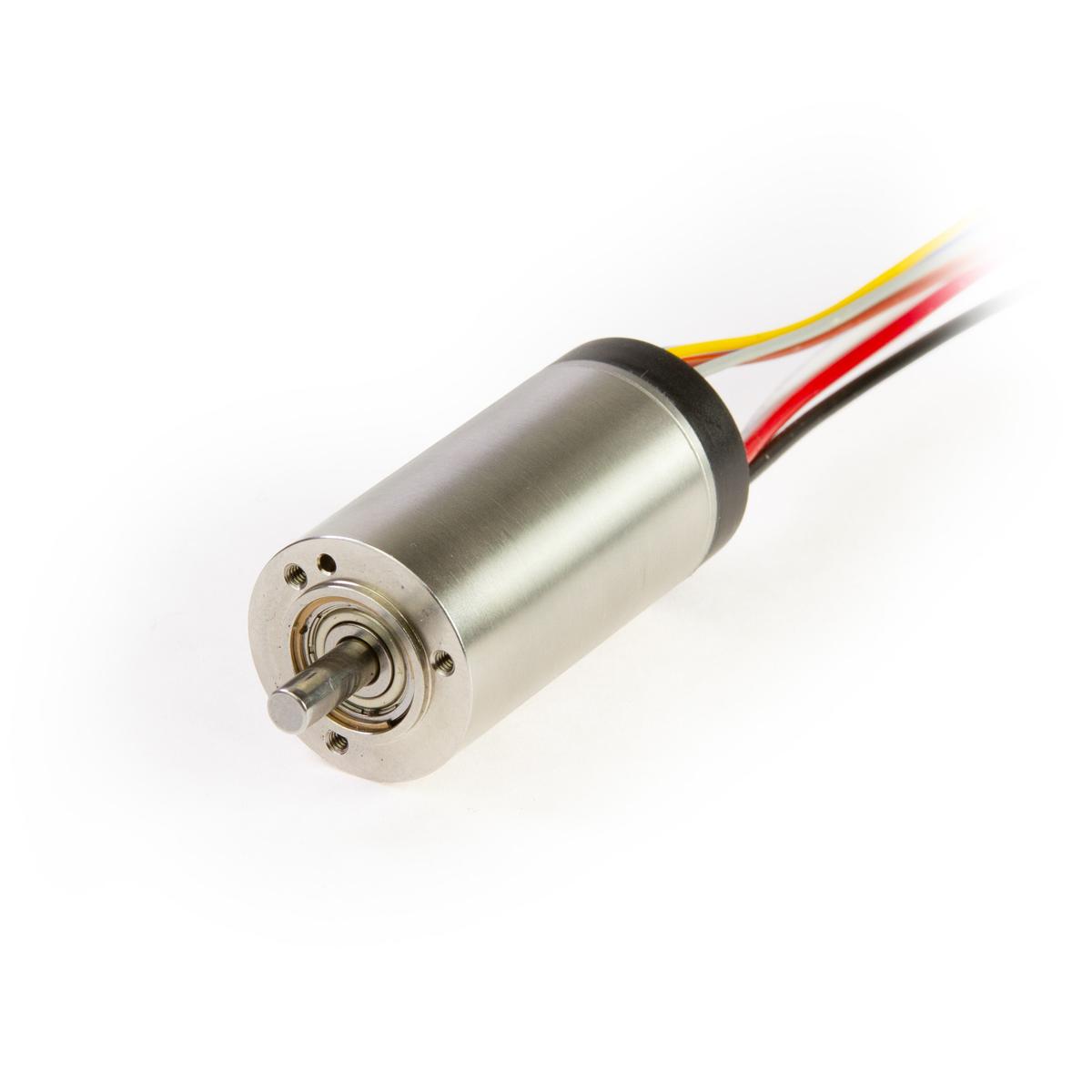

Featured product media

Quick Facts

SLH22CH045-36 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 1.23 A Rated Current
  • 1.4161 oz-in Rated Torque
  • 36 VDC Nominal Voltage
  • 1.750 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor Only
Weight0.216 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage36 VDC
No Load Speed 38200 RPM
No Load Current625 mA
Nominal Speed36460 RPM
Nominal Torque (Max Cont. Torque)1.4161 oz-in
Rated Speed35800 RPM
Rated Torque1.4161 oz-in
Rated Current1.23 A
Stall Torque54.5489 oz-in
Stall Current42.35 A
Max. Efficiency90%

Motor Characteristics

Terminal Resistance0.85 ohm
Terminal Inductance0.097 mH
Speed/Torque Gradient 14.0196 RPM/oz-in
Speed Constant1050 RPM/V
Mechanical Time Constant1.94 ms
Rotor Inertia0.01 oz-in²

Motor Mechanical Data

Max. Radial Load3.597 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Thermal time constant motor450 s
Thermal time constant winding1.83 s

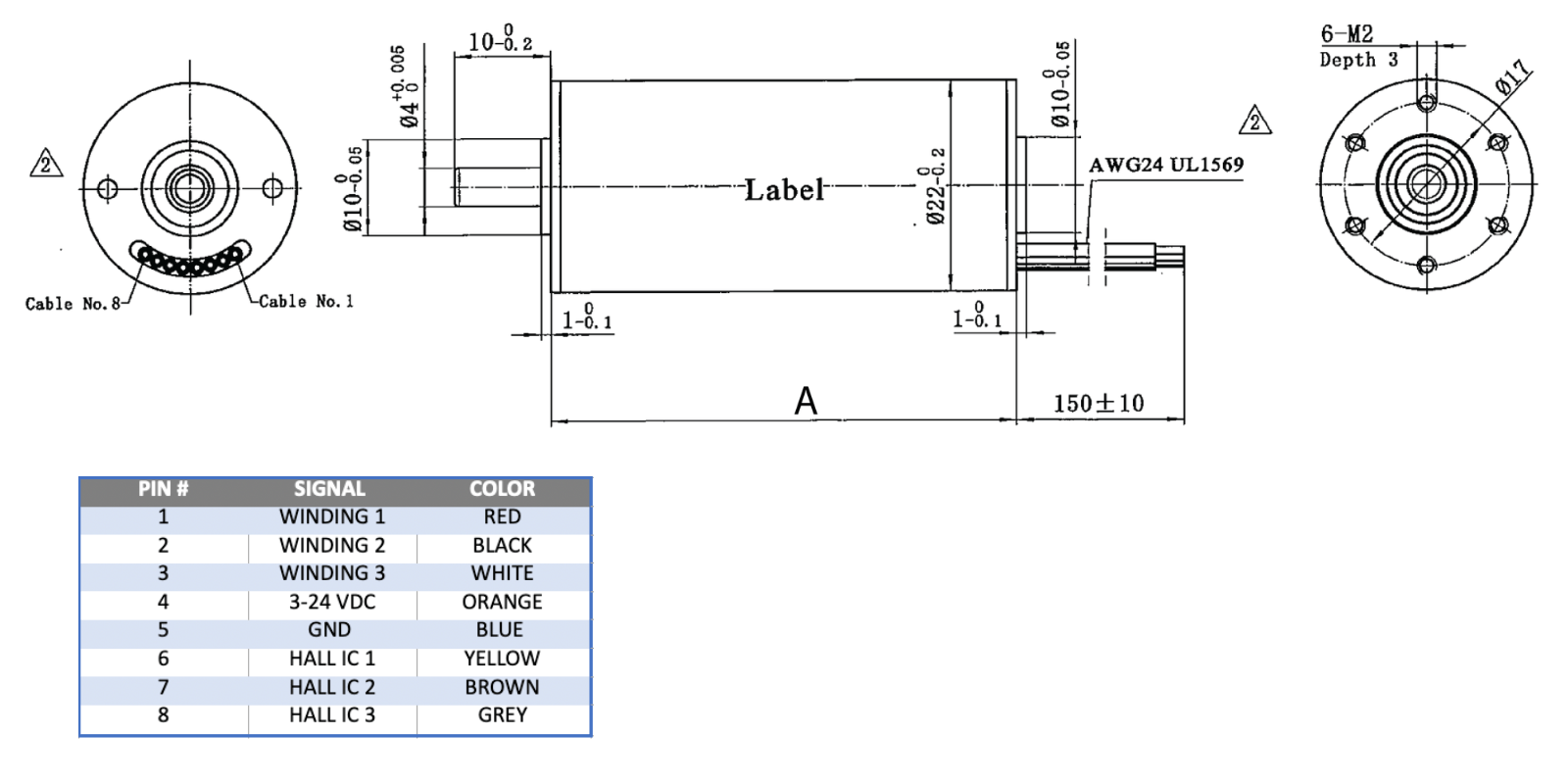

Dimensions

ModelDIM. A (length) in MAX
SLH22CH045-361.750 in

Performance Curve

SLH22CH045-36
@36 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLH22CH045 Series

Downloads

SLH22CH045-36 Configured Datasheet (PDF)
SLH22CH045-36 (3D model) (STEP)
