SLH22CH045 Series

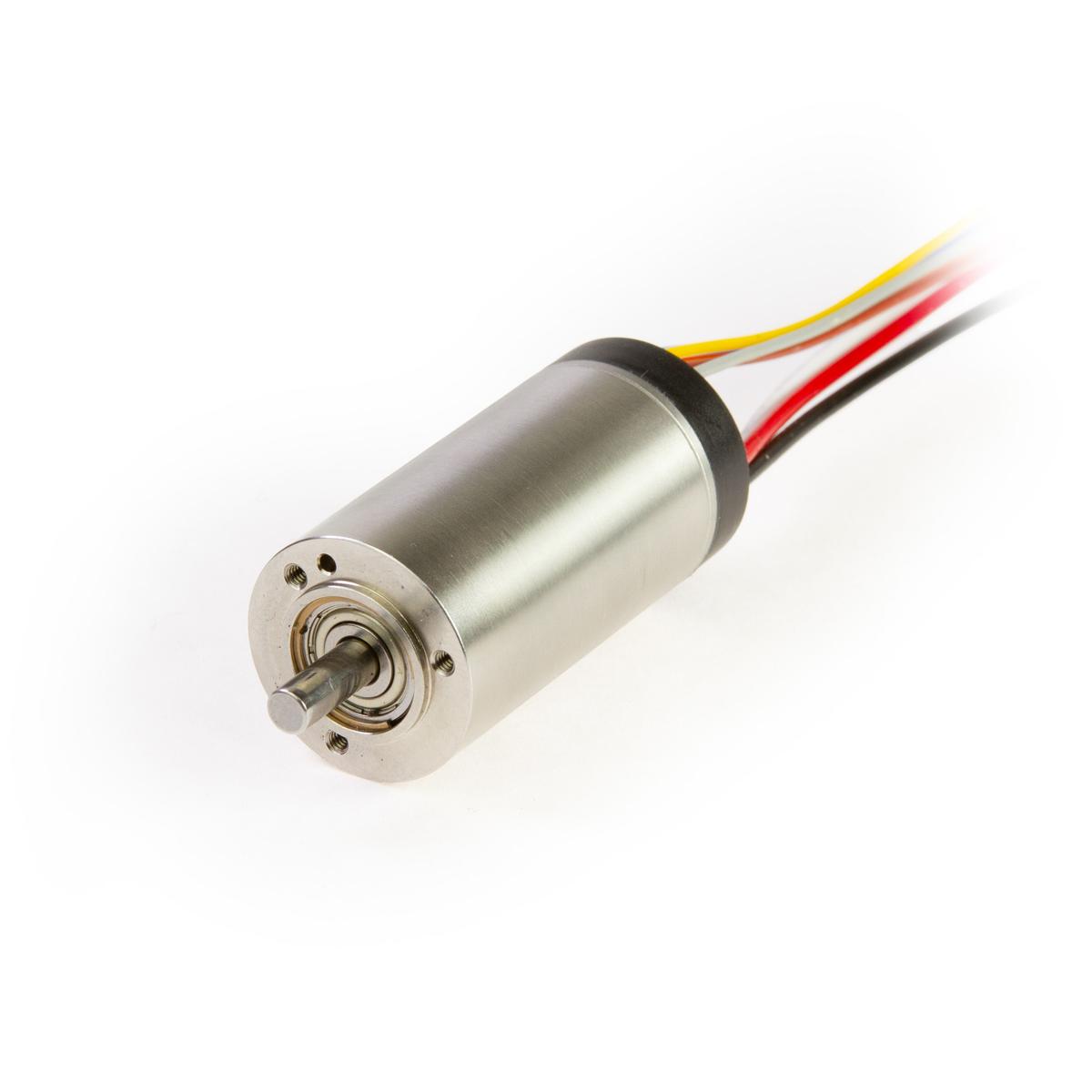

SLH22CH045-24
Slotless BLDC Motor

Name: SLH22CH045-24
Brand: Lin Engineering
SKU: SLH22CH045-24
Price: 200 USD
Availability: PreOrder

Quick Facts

SLH22CH045-24 Slotless BLDC Motors

Specifications:

0.870 in Frame Size
4.19 A Rated Current
3.0022 oz-in Rated Torque
24 VDC Nominal Voltage
1.770 in Length

Features and Benefits:

Extremely quick response and high acceleration
Quiet Operation
High power density

Specifications

Motor Specifications

Frame Size	0.870 in
Motor Type	Motor Only
Weight	0.216 lbs
Number of pole	2
Number of Phases	3
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	24 VDC
No Load Speed	42300 RPM
No Load Current	827 mA
Nominal Speed	40430 RPM
Nominal Torque (Max Cont. Torque)	2.6057 oz-in
Nominal Current (Max Cont. Current)	4.19 A
Rated Speed	35400 RPM
Rated Torque	3.0022 oz-in
Rated Current	4.19 A
Stall Torque	58.2875 oz-in
Stall Current	75 A
Max. Efficiency	91%

Motor Characteristics

Terminal Resistance	0.32 ohm
Terminal Inductance	0.035 mH
Speed/Torque Gradient	12.7451 RPM/oz-in
Speed Constant	1740 RPM/V
Mechanical Time Constant	2.34 ms
Rotor Inertia	0.012 oz-in²

Motor Mechanical Data

Axial play	0.009 in
Radial play	Preloaded
Max. Radial Load	3.597 lbf
Max Force For Press Fit	24.728 lbf
Max Speed (Mechanical)	50000 RPM

Motor Thermal Data

Ambient Temperature	-40 °F to 212.00 °F
Insulation Class	F
Max winding temperature	311.00 °F
Max winding temperature	311.00 °F
Thermal resistance (Housing-Ambient)	59.00 °F/W
Thermal resistance (Winding-Housing)	33.08 °F/W
Thermal time constant motor	450 s
Thermal time constant winding	1.83 s

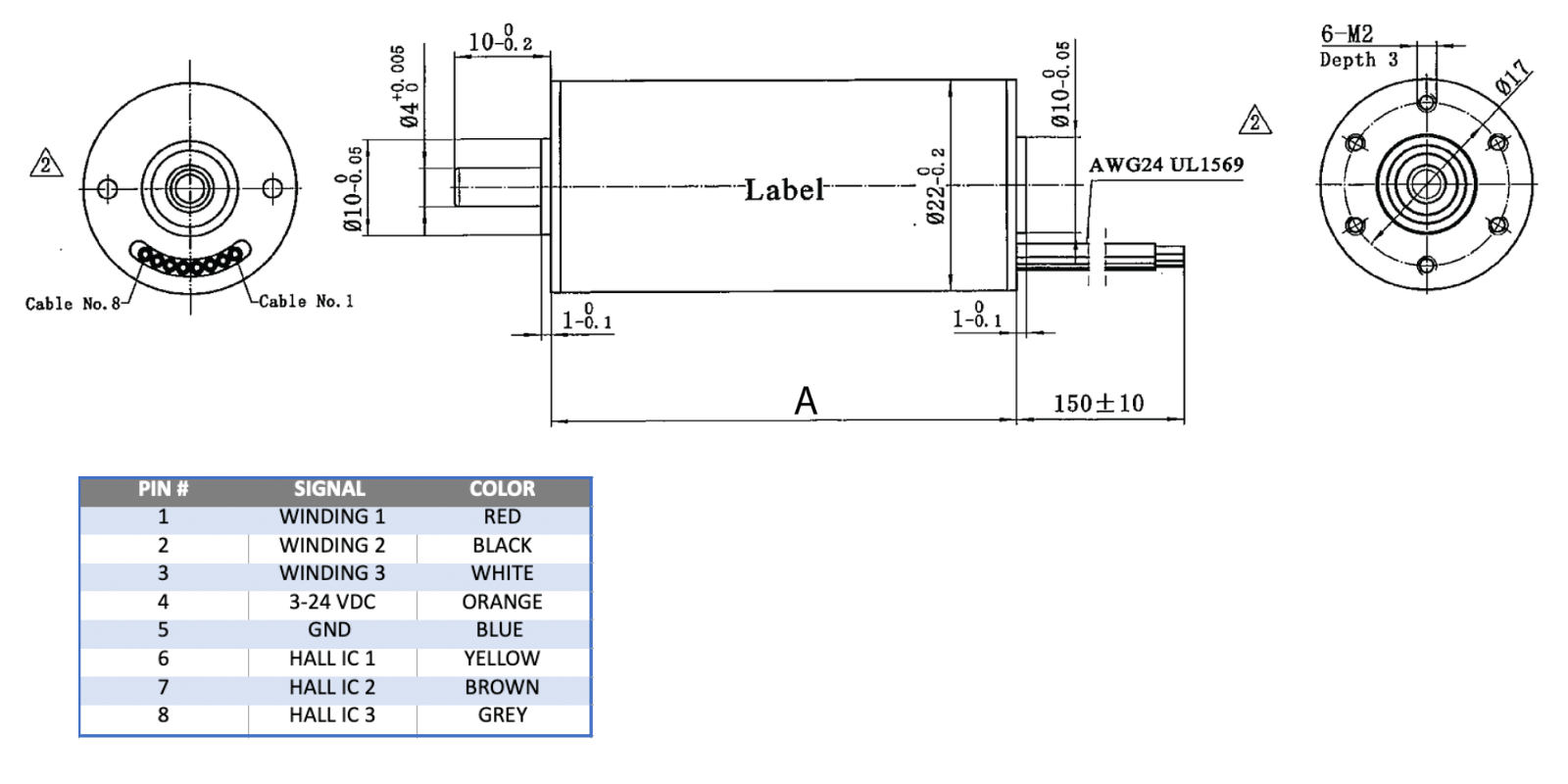

Dimensions

Model	DIM. A (length) in MAX
SLH22CH045-24	1.770 in

Performance Curve

SLH22CH045 Series

Downloads

SLH22CH045-24 Configured Datasheet (PDF)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
