SLH22CH045 Series

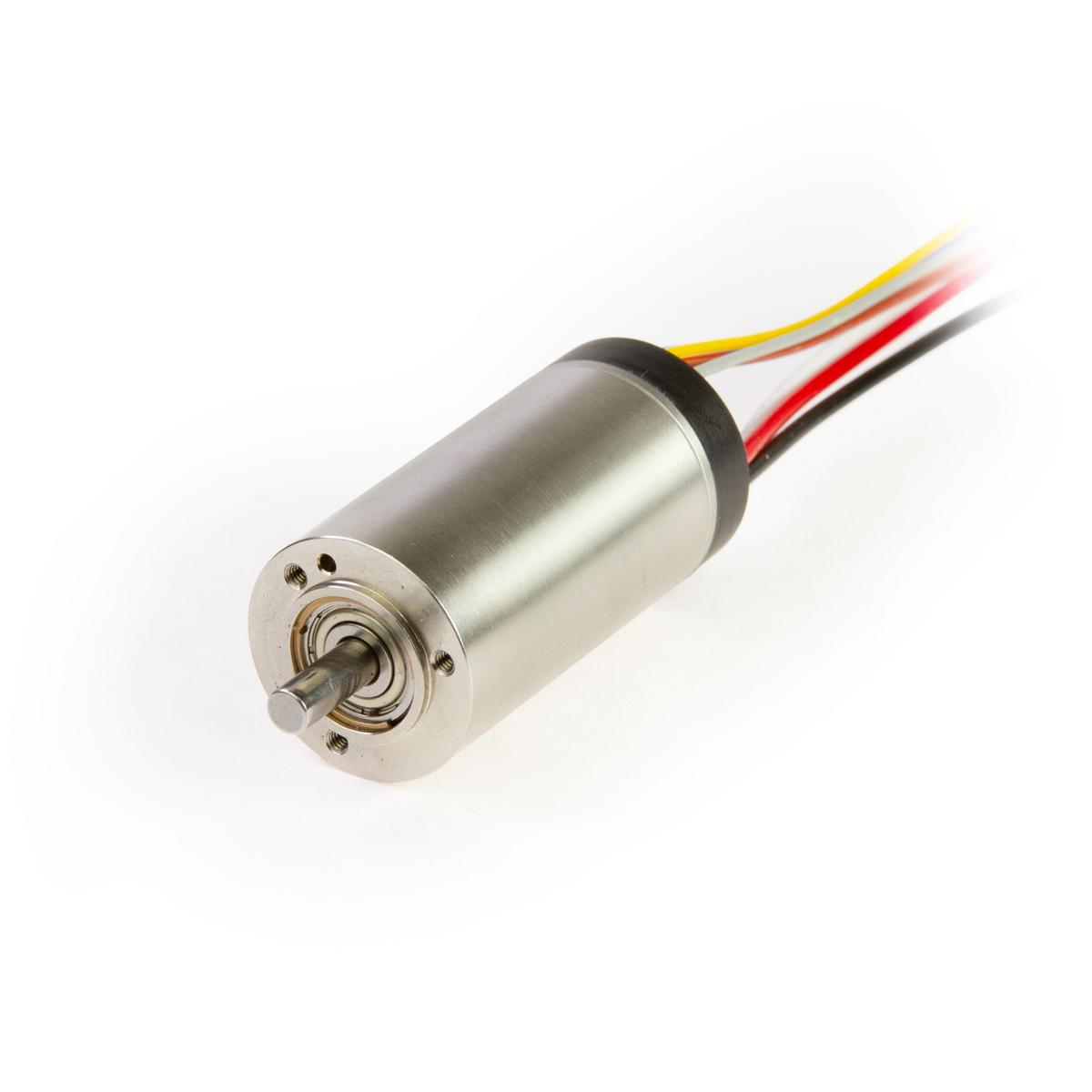

SLH22CH045-18
Slotless BLDC Motor

Featured product media

Quick Facts

SLH22CH045-18 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 2.9 A Rated Current
  • 1.9118 oz-in Rated Torque
  • 18 VDC Nominal Voltage
  • 1.750 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor Only
Weight0.216 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage18 VDC
No Load Speed 38100 RPM
No Load Current740 mA
Nominal Speed35960 RPM
Rated Speed27200 RPM
Rated Torque1.9118 oz-in
Rated Current2.9 A
Stall Torque44.4661 oz-in
Stall Current69.23 A
Max. Efficiency89%

Motor Characteristics

Terminal Resistance0.26 ohm
Terminal Inductance0.024 mH
Speed/Torque Gradient 17.135 RPM/oz-in
Speed Constant2105 RPM/V
Mechanical Time Constant2.38 ms
Rotor Inertia0.01 oz-in²

Motor Mechanical Data

Max. Radial Load3.597 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor450 s
Thermal time constant winding1.83 s

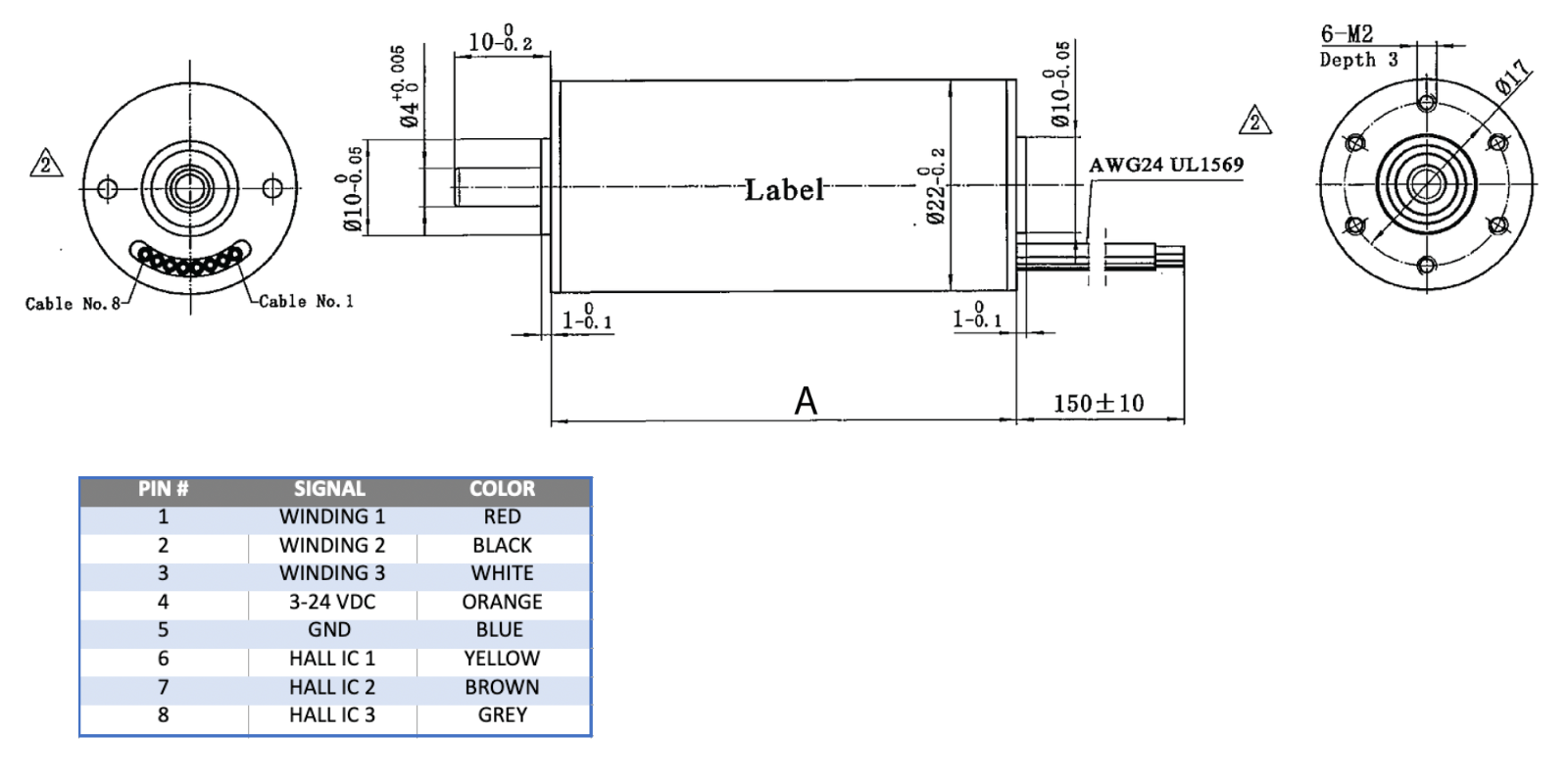

Dimensions

ModelDIM. A (length) in MAX
SLH22CH045-181.750 in

Performance Curve

SLH22CH045-18
@18 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLH22CH045 Series

Downloads

SLH22CH045-18 Configured Datasheet (PDF)
