SLH16CH056 Series
SLH16CH056-36
Slotless BLDC Motor

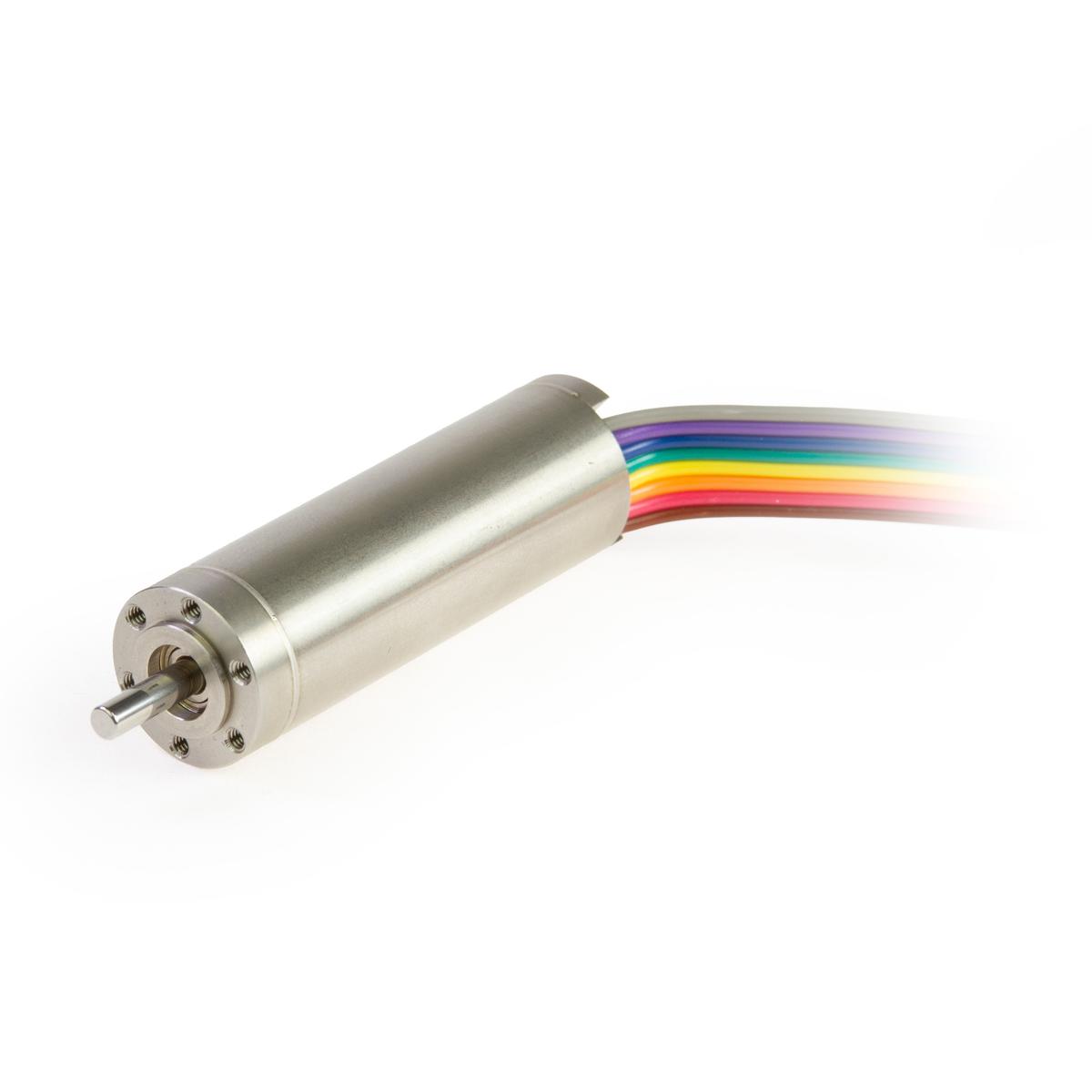

Featured product media

Quick Facts

SLH16CH056-36 Slotless BLDC Motors

Specifications:
  • 0.630 in Frame Size
  • 1.53 A Rated Current
  • 1.4869 oz-in Rated Torque
  • 36 VDC Nominal Voltage
  • 2.200 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.630 in
Motor TypeMotor Only
Weight0.161 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage36 VDC
No Load Speed 45900 RPM
No Load Current600 mA
Nominal Speed45732 RPM
Nominal Torque (Max Cont. Torque)1.4869 oz-in
Rated Speed44000 RPM
Rated Torque1.4869 oz-in
Rated Current1.53 A
Stall Torque49.6491 oz-in
Stall Current47.37 A
Max. Efficiency88.9%

Motor Characteristics

Terminal Resistance0.76 ohm
Terminal Inductance0.0785 mH
Speed/Torque Gradient 19.1176 RPM/oz-in
Speed Constant1290 RPM/V
Mechanical Time Constant1 ms
Rotor Inertia0.004 oz-in²

Motor Mechanical Data

Max. Radial Load2.248 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Thermal time constant motor588 s
Thermal time constant winding1.1 s

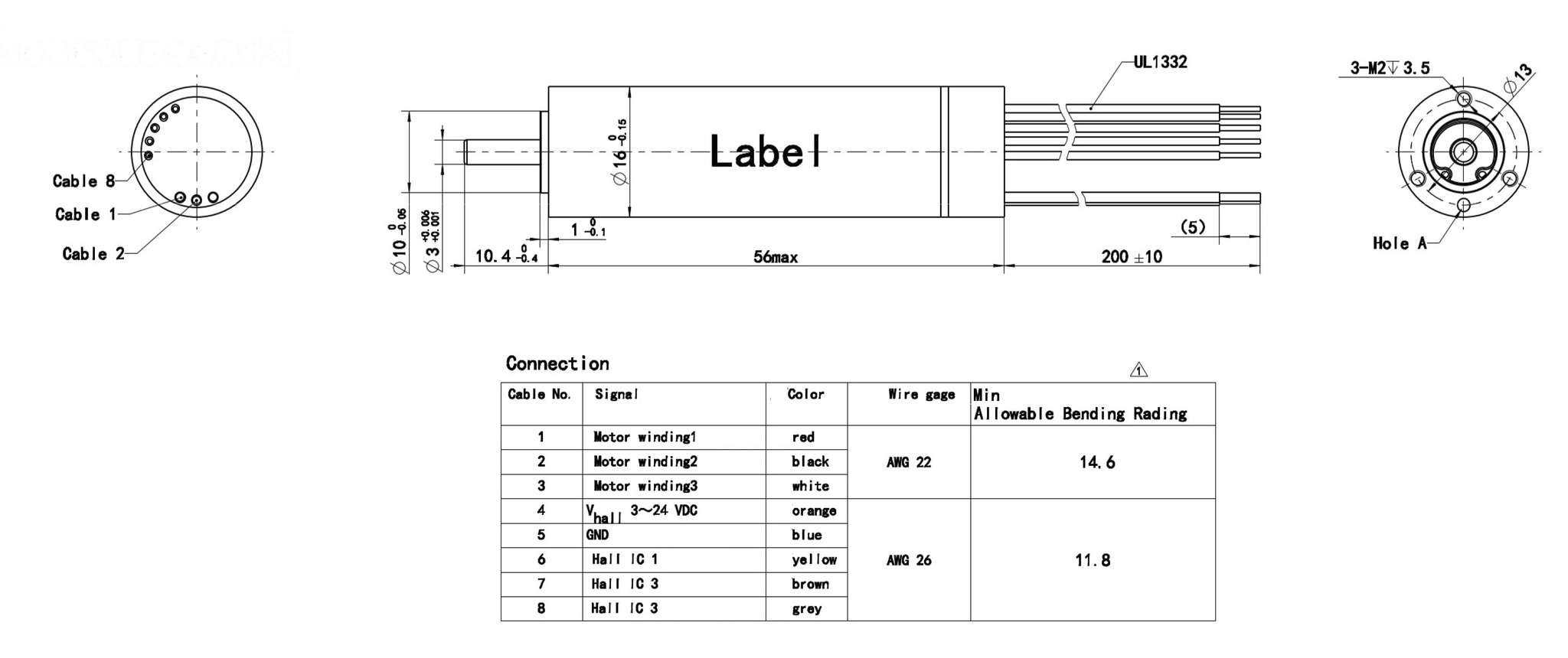

Dimensions

ModelDIM. A (length) in MAX
SLH16CH056-362.200 in

Performance Curve

SLH16CH056-36
@36 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLH16CH056 Series

Downloads

SLH16CH056-36 Configured Datasheet (PDF)
SLH16CH056-36 (3D model) (STEP)
