SLH11CH017 Series

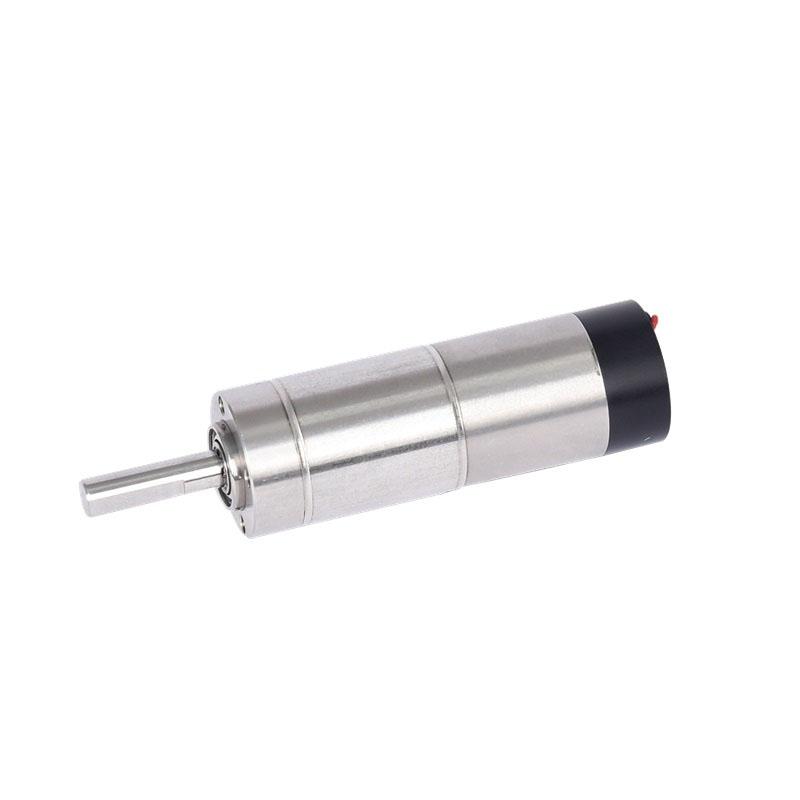

SLH11CH017-24-MS11-1024
Slotless BLDC Motor

Featured product media

Quick Facts

SLH11CH017-24-MS11-1024 Slotless BLDC Motors

Specifications:
  • 0.450 in Frame Size
  • 1 A Rated Current
  • 0.0241 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 0.670 in Length

Specifications

Motor Specifications

Frame Size0.450 in
Motor TypeMotor + Encoder
Weight0.021 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 31920 RPM
No Load Current25 mA
Nominal Speed19300 RPM
Rated Speed19300 RPM
Rated Torque0.0241 oz-in
Rated Current1 A
Stall Torque0.4248 oz-in
Stall Current0.42 A
Max. Efficiency55%

Motor Characteristics

Terminal Resistance57 ohm
Terminal Inductance0.53 mH
Speed/Torque Gradient 1495.2804 RPM/oz-in
Speed Constant1330 RPM/V
Mechanical Time Constant6.63 ms
Rotor Inertia0 oz-in²

Motor Mechanical Data

Max. Radial Load0.45 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor280 s
Thermal time constant winding2.1 s

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

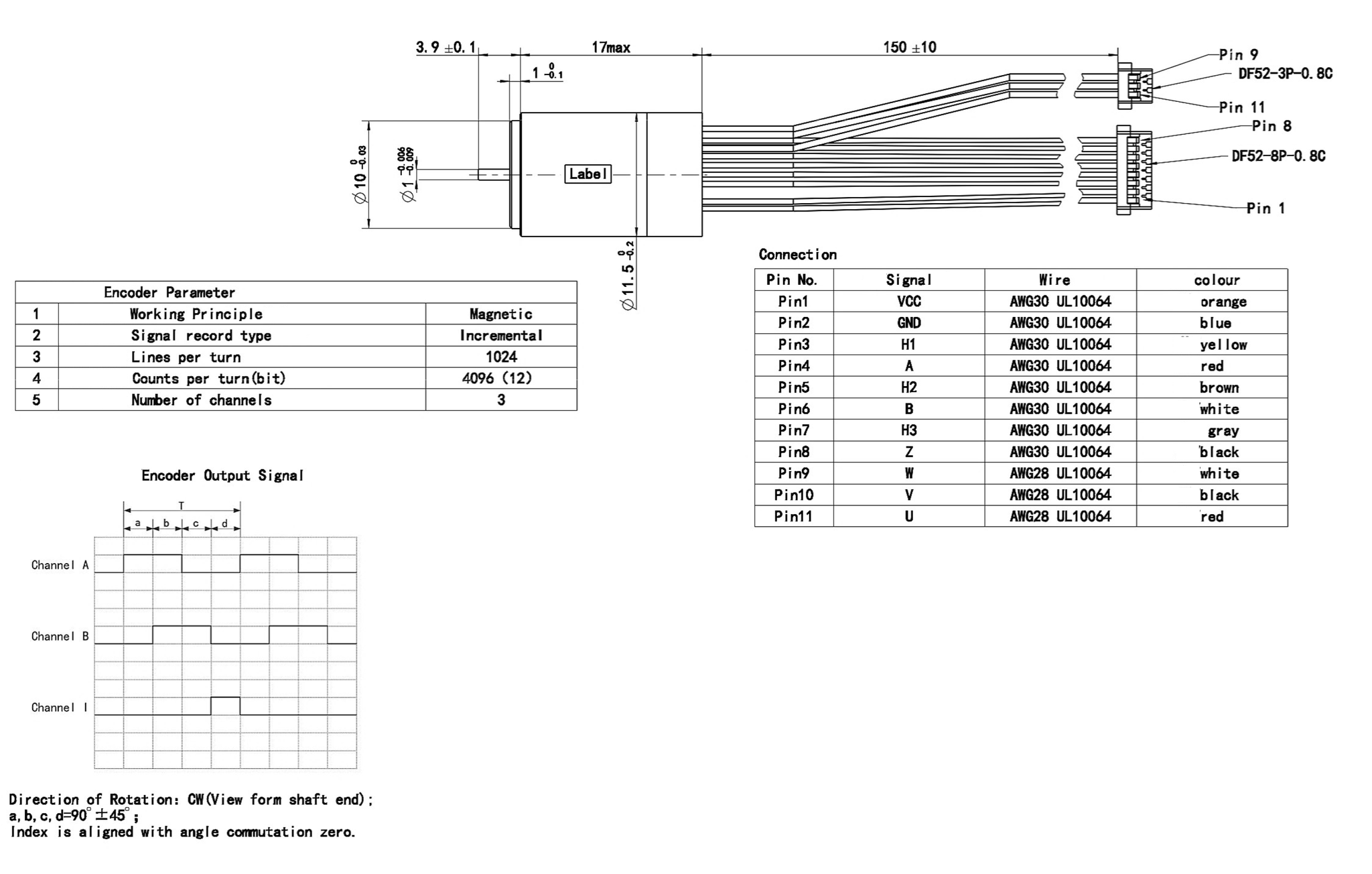

Dimensions

ModelDIM. A (length) in MAX
SLH11CH017-24-MS11-10240.670 in

Performance Curve

SLH11CH017-24-MS11-1024
@24 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC
