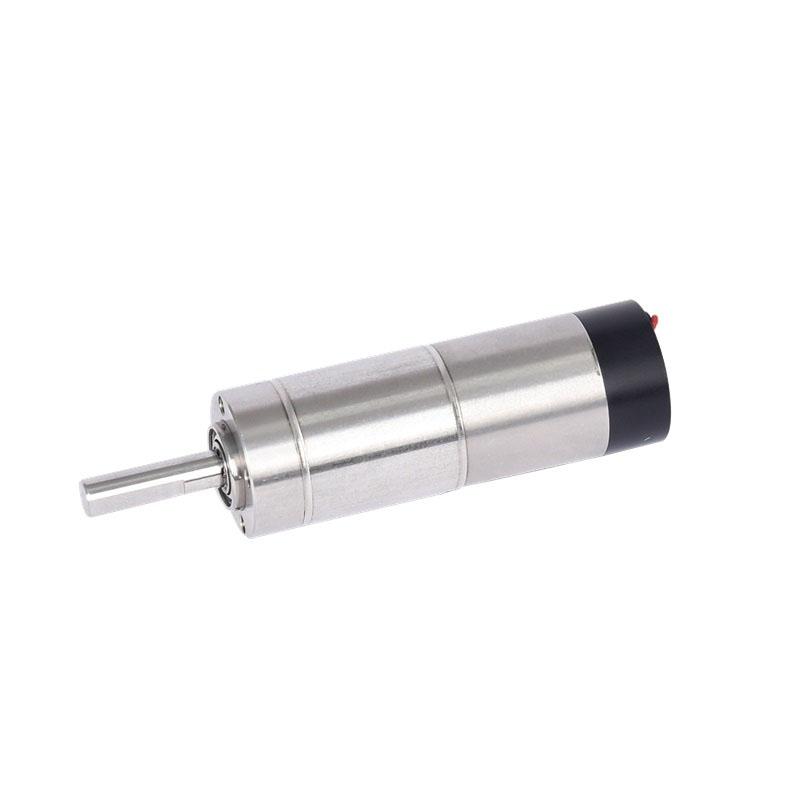

SLH11CH017 Series
SLH11CH017-24-G27-MS11-1024
Slotless BLDC Motor

Name: SLH11CH017-24-G27-MS11-1024
Brand: Lin Engineering
SKU: SLH11CH017-24-G27-MS11-1024
Price: 340 USD
Availability: PreOrder

Quick Facts

SLH11CH017-24-G27-MS11-1024 Slotless BLDC Motors

Specifications:

0.450 in Frame Size
0.13 A Rated Current
Rated Torque
24 VDC Nominal Voltage
1.110 in Length

Specifications

Motor Specifications

Frame Size	0.450 in
Motor Type	Motor + Encoder + Gearhead
Weight	0.045 lbs
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	24 VDC
No Load Speed	1180 RPM
No Load Current	50 mA
Nominal Speed	718 RPM
Rated Speed	718 RPM
Rated Current	0.13 A
Stall Torque	9.488 oz-in
Stall Current	0.42 A
Max. Efficiency	45%

Motor Characteristics

Terminal Resistance	57 ohm
Terminal Inductance	0.53 mH
Speed/Torque Gradient	1495.2804 RPM/oz-in
Speed Constant	1330 RPM/V

Motor Mechanical Data

Max. Radial Load

4.496 lbf

Motor Thermal Data

Max winding temperature	311.00 °F
Max winding temperature	311.00 °F

Gearhead Specifications

Gearhead Reduction Ratio	27
Nominal Reduction Ratio	27

Encoder Specifications

Encoder Type

1024-line incremental magnetic encoder

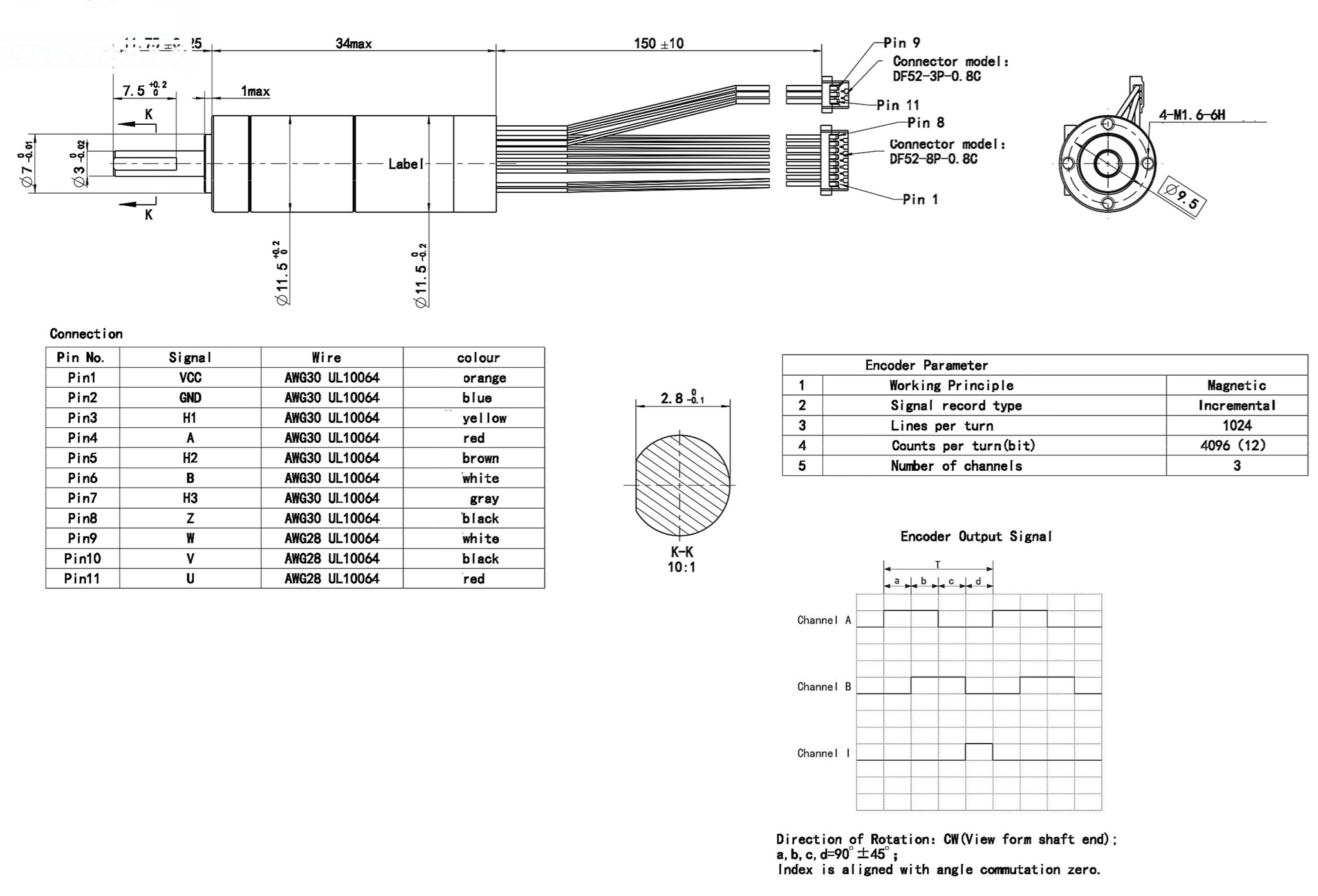

Dimensions

Model	DIM. A (length) in MAX
SLH11CH017-24-G27-MS11-1024	1.110 in

Performance Curve

SLH11CH017-24-G27-MS11-1024
^{@24 VDC, 27:1 reduction}

Speed
Current
Power
Efficiency
Operating Area
Maximum Continuous Torque

Generate new cureve based on different VDC

SLH11CH017 Series

Downloads

SLH11CH017-24-G27-MS11-1024 Configured Datasheet (PDF)
