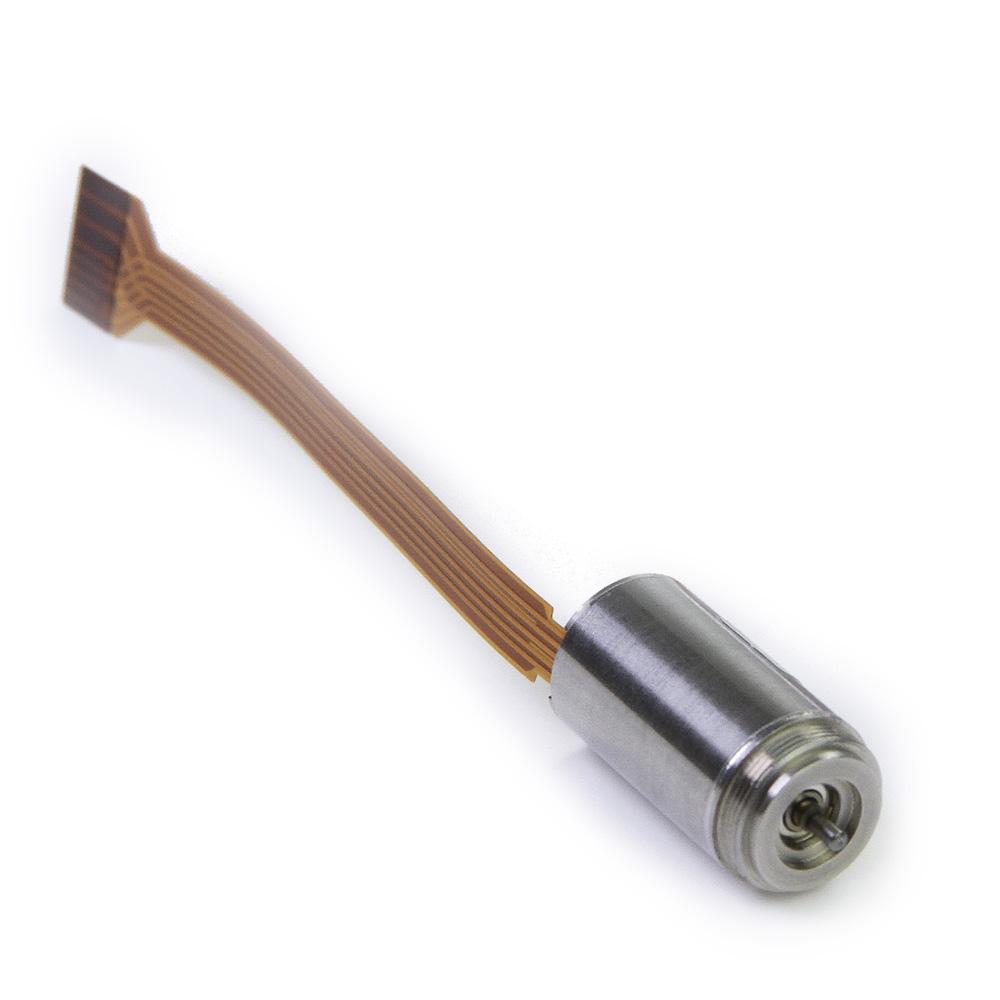

SL013CH026 SeriesSlotless BLDC Motor
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
- Wide speed range (up to 40,000 rpm)
- 0.510 in Frame Size
- 0.34 to 1.27 A Rated Current
- 0.3583 to 0.3979 oz-in Rated Torque
- 6 to 24 VDC Nominal Voltage
- 0.99 in Length
Models
| Model # | Frame size | Nominal Voltage | No Load Speed | No Load Current | Max speed | Rated Current | Speed Torque Gradient | Rated Torque | Weight, lbs | Availability |
|---|---|---|---|---|---|---|---|---|---|---|
| SL013CH026-01 | 0.510 in | 6 VDC | 24900 RPM | 130 mA | 40000 RPM | 1.27 A | 400.1953 RPM/oz-in | 0.3654 oz-in | 0.042 lbs | online |
| SL013CH026-02 | 0.510 in | 9 VDC | 27600 RPM | 115 mA | 40000 RPM | 1.02 A | 329.3893 RPM/oz-in | 0.3979 oz-in | 0.042 lbs | online |
| SL013CH026-03 | 0.510 in | 12 VDC | 24600 RPM | 76 mA | 40000 RPM | 0.65 A | 357.7117 RPM/oz-in | 0.3809 oz-in | 0.042 lbs | online |
| SL013CH026-04 | 0.510 in | 18 VDC | 25100 RPM | 54 mA | 40000 RPM | 0.44 A | 369.3239 RPM/oz-in | 0.371 oz-in | 0.042 lbs | online |
| SL013CH026-05 | 0.510 in | 24 VDC | 26100 RPM | 49 mA | 40000 RPM | 0.34 A | 380.228 RPM/oz-in | 0.3583 oz-in | 0.042 lbs | online |
Motor Operating Specifications
| Axial play | 0.002 in |
| Radial play | Preloaded |
| Max. force for press fits (static) | 2.248 lbf |
| Ambient Temperature | -40 ° to 212.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal resistance (Housing-Ambient) | 89.60 °F/W |
| Thermal resistance (Winding-Housing) | 38.64 °F/W |
| Thermal time constant motor | 250 s |
| Thermal time constant winding | 0.58 s |
| Number of pole pairs | 1 |
Dimensions
| Model | DIM. A (length) in |
|---|---|
| SL013CH026-01 | 0.990 in |
| SL013CH026-02 | 0.990 in |
| SL013CH026-03 | 0.990 in |
| SL013CH026-04 | 0.990 in |
| SL013CH026-05 | 0.990 in |
Torque Curves
Features And Benefits
A typical brushless BLDC motor is constructed using a stator with “slots”; a copper wire is then wound around these slots. Although this technology works well, it has an inherent problem with cogging (or drag torque), which presents a challenge in applications needing fast response, fast acceleration and smooth operation.
To combat these issues, we’ve removed the slots from the motor. Instead of slots, we’re using a unique process of winding the copper wire without the need of them. This drastically reduces cogging and improves the motor’s ability to respond, accelerate quickly, and operate smoothly. Slotless BLDC motors are also quieter and provide more power with a smaller frame size than their slotted counterparts.
Reliable long life expectancy
Our motors are built to withstand at least 20,000 hours of continuous (24/7) operation. This means that you can feel confident that even your most sensitive application will operate reliably for a very long time.
Nearly silent operation
Detent torque is the biggest culprit of generated noise. Removing the slots and thus eliminating the detent torque drastically reduces the noise output of the motor.
Modular design for better customization
The modular design lets us combine the motor with a gearhead to match your specific speed and torque requirements. Also, our slotless BLDC motors are available in many windings so we can satisfy your requirements precisely. You can also customize the motor with sensors such as an optical encoder or hall sensor to provide accurate positioning control, velocity, and direction feedback.
Cost effective
Our unique manufacturing process lets us create motors that are built to your exact specifications, while remaining highly cost effective. Get exactly what you need without breaking your budget.
Slotless BLDC Motor Applications
- Robotic grippers and claws
- Medical and surgical tools
- Miniature pumps and ventilators
- Testing and measuring equipment
- Semiconductor handling equipment
- Robotics
Slotless BLDC Motor Construction
Downloads
SL013CH026-3D-Model (STEP)
DownloadGet the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
