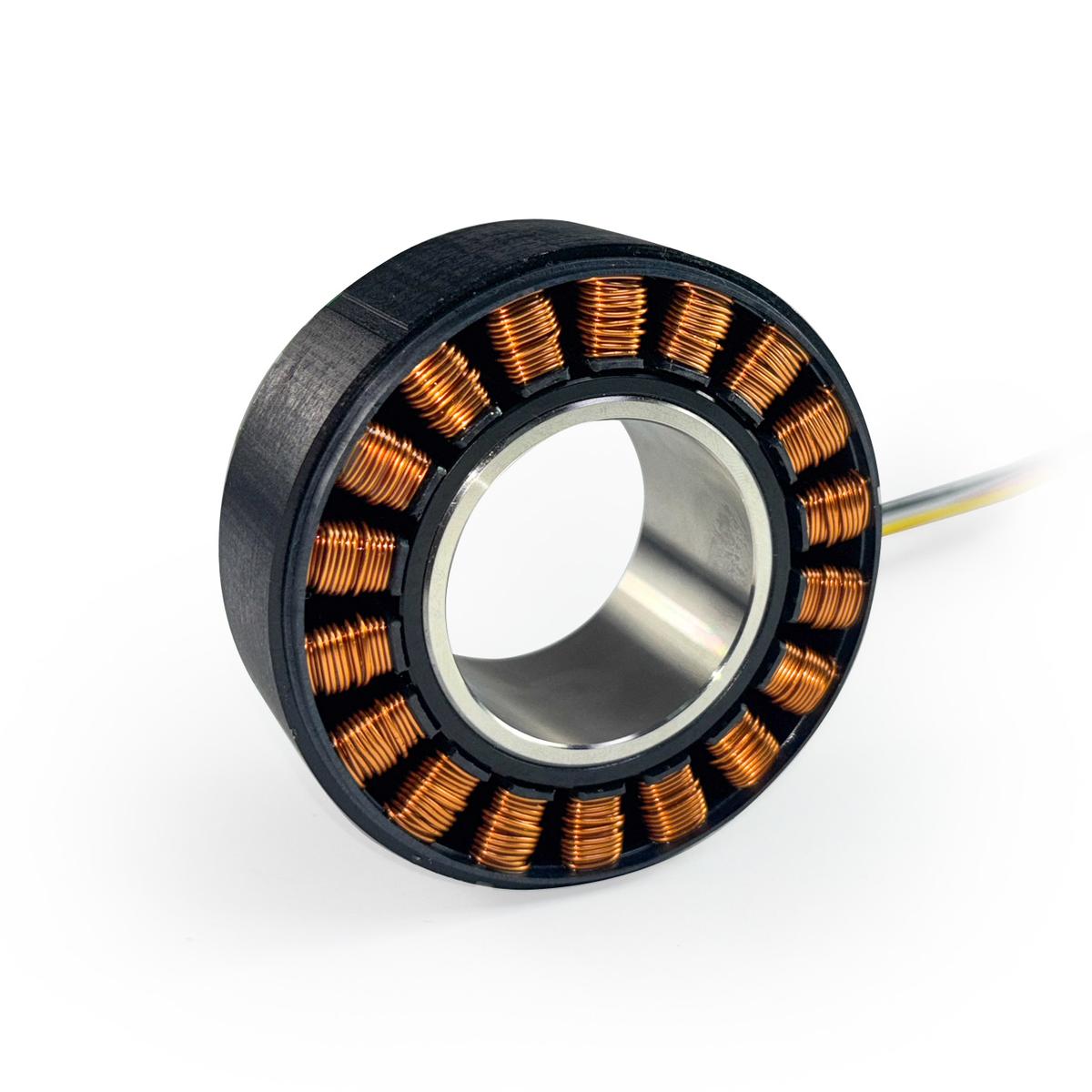

PCT115 Series
115mm Frameless BLDC Motor

Features and Benefits:

High torque to weight ratio
Compact & lightweight
Hall sensor and thermistor available

Specifications:

4.530 in Frame Size
5.06 to 5.24 A Rated Current
169.93 to 974.29 oz-in Rated Torque
48 VDC Rated Voltage
0.32 to 1.04 in Length

Models

Model #	Frame size	Input Voltage	Rated Power	Rated Speed	Rated Torque	Rated Current	Weight, lbs	Availability
PC-T115CH008-48A	4.530 in	48 VDC	177 W	911 RPM	263.4 oz-in	5.24 A	1.305 lbs	Quote
PC-T115CH008-48B	4.530 in	48 VDC	723 W	5377.8 RPM	181.26 oz-in	5.24 A	1.305 lbs	Quote
PC-T115CH008-48C	4.530 in	48 VDC	713 W	5673.6 RPM	169.93 oz-in	5.24 A	1.305 lbs	Quote
PC-T115CH013-48A	4.530 in	48 VDC	195 W	587.2 RPM	448.91 oz-in	5.23 A	1.746 lbs	Quote
PC-T115CH013-48B	4.530 in	48 VDC	992 W	3391.2 RPM	395.1 oz-in	5.23 A	1.746 lbs	Quote
PC-T115CH013-48C	4.530 in	48 VDC	1239 W	5682.7 RPM	294.55 oz-in	5.23 A	1.746 lbs	Quote
PC-T115CH026-48A	4.530 in	48 VDC	176 W	243.8 RPM	974.29 oz-in	5.06 A	0.306 lbs	Quote
PC-T115CH026-48B	4.530 in	48 VDC	1109 W	1637.4 RPM	916.23 oz-in	5.06 A	0.306 lbs	Quote
PC-T115CH026-48C	4.530 in	48 VDC	1769 W	2941.2 RPM	812.85 oz-in	5.06 A	0.306 lbs	Quote

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
