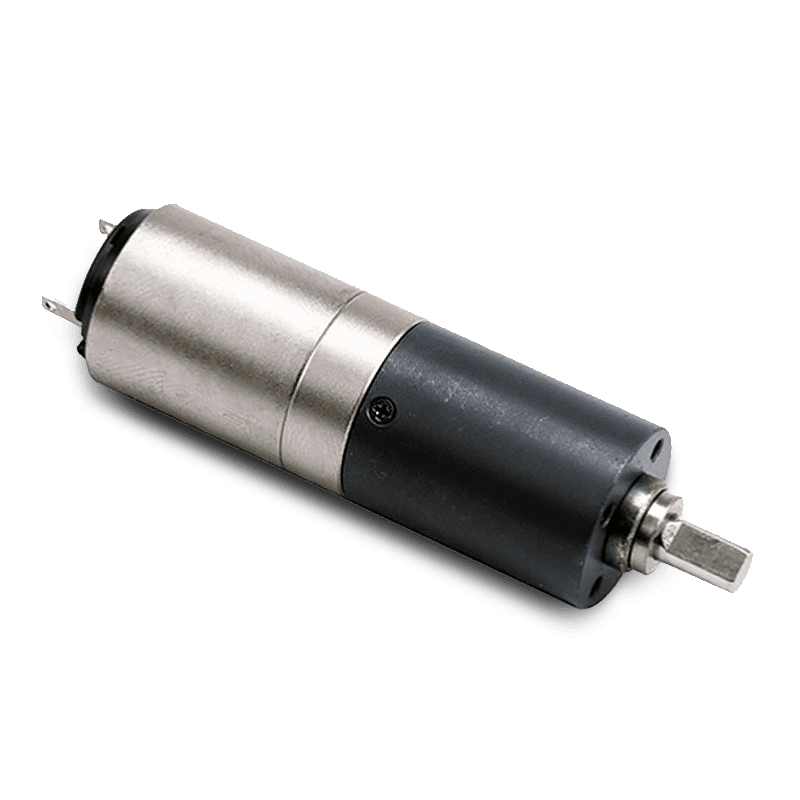

CL017CN025 SeriesCoreless Brushed DC motor
Features and Benefits:
- Ironless Design Eliminates Cogging
- Increased Efficiency and Torque
- Low Inertia Rotor for Fast Response Time
- Cost Effective Motor and Implementation
Specifications:
- 0.670 in Frame Size
- 0.222 to 0.364 A Rated Current
- 2.11 to 70.806 oz-in Rated Torque
- 12 VDC Nominal Voltage
- 1.7 to 1.98 in Length
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CL017CN025-12-G19 | 0.670 in | 1.700 in | 12 VDC | 390 RPM | 8.1568 oz-in | 540 RPM | 26.4 mA | 19:1 | 0.108 lbs | 0.364 A | quote |
| CL017CN025-12-G369 | 0.670 in | 1.980 in | 12 VDC | 23 RPM | 70.806 oz-in | 28 RPM | 35.5 mA | 369:1 | 0.123 lbs | 0.222 A | quote |
| CL017CN025-12-G4 | 0.670 in | 1.700 in | 12 VDC | 1704 RPM | 2.11 oz-in | 2358 RPM | 21.9 mA | 4:1 | 0.1 lbs | 0.364 A | quote |
| CL017CN025-12-G84 | 0.670 in | 1.840 in | 12 VDC | 89 RPM | 31.806 oz-in | 123 RPM | 31 mA | 84:1 | 0.116 lbs | 0.364 A | quote |
Dimensions
| Model | DIM. A (length) in |
|---|---|
| CL017CN025-12-G19 | 1.700 in |
| CL017CN025-12-G369 | 1.980 in |
| CL017CN025-12-G4 | 1.700 in |
| CL017CN025-12-G84 | 1.840 in |
