CL013CN028 Series

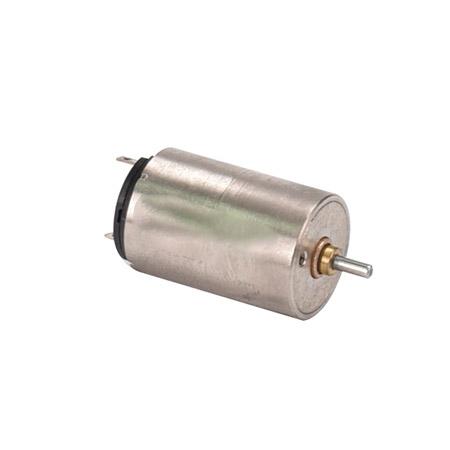

CL013CN028-12
Coreless Brushed DC motor

Featured product media

Quick Facts

CL013CN028-12 Coreless DC Motors

Specifications:
  • 0.510 in Frame Size
  • 0.29 A Rated Current
  • 0.3639 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 1.110 in Length

Specifications

Motor Specifications

Frame Size0.510 in
Motor TypeMotor Only (No Gearbox)
Weight0.046 lbs
Number of pole
Number of Phases
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 11800 RPM
No Load Current25.5 mA
Nominal Speed9000 RPM
Nominal Torque (Max Cont. Torque)0.3639 oz-in
Nominal Current (Max Cont. Current)0.29 A
Rated Speed9000 RPM
Rated Torque0.3639 oz-in
Rated Current0.29 A
Stall Torque
Stall Current1.17 A
Max. Efficiency78%

Motor Characteristics

Terminal Resistance10.3 ohm
Terminal Inductance0.253 mH
Speed/Torque Gradient 154.357 RPM/oz-in
Torque Constant
Speed Constant1000 RPM/V
Mechanical Time Constant4.77 ms
Rotor Inertia0.002 oz-in²

Motor Mechanical Data

Bearings
Axial play0.012 in
Radial play
Max. Axial Load
Max. Radial Load
Distance From Flange For Radial Load
Max Force For Press Fit
Max Speed (Mechanical)13000 RPM

Motor Thermal Data

Ambient Temperature-4 °F to 149.00 °F
Insulation Class
Max winding temperature212.00 °F
Thermal resistance (Housing-Ambient)97.34 °F/W
Thermal resistance (Winding-Housing)47.12 °F/W
Thermal time constant motor229 s
Thermal time constant winding3.9 s

Gearhead Specifications

Type Of Gearhead
Gearhead Reduction Ratio
Nominal Reduction Ratio
Absolute Reduction Ratio
Number Of Stages

Encoder Specifications

Encoder Type
Steps Per Turn
Counts Per Turn
Number Of Channels
Clock Rate
Time Out
Signal Protocol

Dimensions

ModelDIM. A (length) in MAX
CL013CN028-121.110 in

Performance Curve

CL013CN028-12
@12 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

CL013CN028 Series

Downloads

CL013CN028-12 Configured Datasheet (PDF)
