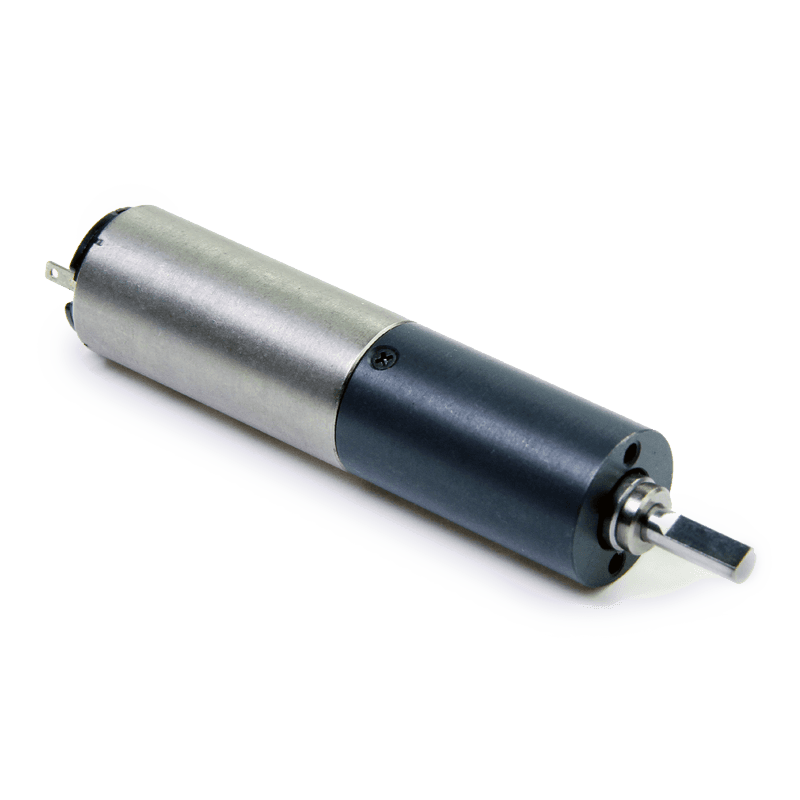

CL013CN028 SeriesCL013CN028-06-G4Coreless Brushed DC motor
Specifications:
- 0.510 in Frame Size
- 0.59 A Rated Current
- 1.6852 oz-in Rated Torque
- 6 VDC Nominal Voltage
- 1.870 in Length
Unit Price:
$153.00
Inventory:
5 Available in 10 Business Days
Ships:
10 Business Days
Part Number:
CL013CN028-06-G4
Looking For Higher Volume?
Specifications
Motor Specifications
| Frame Size | 0.510 in |
| Motor Type | Motor + Gearhead |
| Weight | 0.075 lbs |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 6 VDC |
| No Load Speed | 2383 RPM |
| No Load Current | 50.6 mA |
| Nominal Speed | 1508 RPM |
| Nominal Torque (Max Cont. Torque) | 1.6852 oz-in |
| Nominal Current (Max Cont. Current) | 0.59 A |
| Rated Speed | 1508 RPM |
| Rated Torque | 1.6852 oz-in |
| Rated Current | 0.59 A |
| Stall Current | 1.58 A |
| Max. Efficiency | 90% |
Motor Characteristics
| Terminal Resistance | 3.8 ohm |
| Terminal Inductance | 0.09 mH |
| Speed/Torque Gradient | 150.9583 RPM/oz-in |
| Speed Constant | 1630 RPM/V |
| Mechanical Time Constant | 4.72 ms |
| Rotor Inertia | 0.002 oz-in² |
Motor Mechanical Data
| Axial play | 0.010 in |
| Radial play | 0.004 |
| Max Speed (Mechanical) | 13000 RPM |
Motor Thermal Data
| Ambient Temperature | -4 °F to 149.00 °F |
| Max winding temperature | 212.00 °F |
| Max winding temperature | 212.00 °F |
| Thermal resistance (Housing-Ambient) | 97.34 °F/W |
| Thermal resistance (Winding-Housing) | 47.12 °F/W |
| Thermal time constant motor | 229 s |
| Thermal time constant winding | 3.9 s |
Gearhead Specifications
| Number Of Stages | 1 |
Dimensions
| Model | DIM. A (length) in |
|---|---|
| CL013CN028-06-G4 | 1.870 in |
Performance Curve
CL013CN028 Series
Downloads
CL013CN028-06-G4 Configured Datasheet (PDF)
