CL013CN028 Series
CL013CN028-06

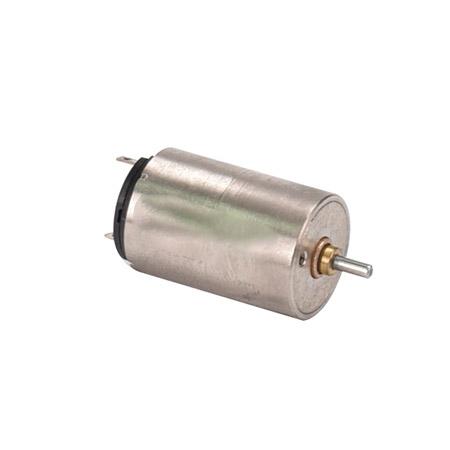

Coreless Brushed DC motor

Name: CL013CN028-06
Brand: Lin Engineering
SKU: CL013CN028-06
Price: 100 USD
Availability: PreOrder

Quick Facts

CL013CN028-06 Coreless DC Motors

Specifications:

0.510 in Frame Size
0.591 A Rated Current
0.4758 oz-in Rated Torque
6 VDC Nominal Voltage
1.110 in Length

Specifications

Motor Specifications

Frame Size	0.510 in
Motor Type	Motor Only (No Gearbox)
Weight	0.046 lbs
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	6 VDC
No Load Speed	9700 RPM
No Load Current	25.1 mA
Nominal Speed	6110 RPM
Nominal Torque (Max Cont. Torque)	0.4758 oz-in
Nominal Current (Max Cont. Current)	0.591 A
Rated Speed	6110 RPM
Rated Torque	0.4758 oz-in
Rated Current	0.591 A
Stall Current	1.57 A
Max. Efficiency	80%

Motor Characteristics

Terminal Resistance	3.8 ohm
Terminal Inductance	0.09 mH
Speed/Torque Gradient	150.9583 RPM/oz-in
Speed Constant	1630 RPM/V
Mechanical Time Constant	4.72 ms
Rotor Inertia	0.002 oz-in²

Motor Mechanical Data

Axial play	0.012 in
Max Speed (Mechanical)	13000 RPM

Motor Thermal Data

Ambient Temperature	-4 °F to 149.00 °F
Max winding temperature	212.00 °F
Max winding temperature	212.00 °F
Thermal resistance (Housing-Ambient)	97.34 °F/W
Thermal resistance (Winding-Housing)	47.12 °F/W
Thermal time constant motor	229 s
Thermal time constant winding	3.9 s

Dimensions

Model	DIM. A (length) in MAX
CL013CN028-06	1.110 in

Performance Curve

CL013CN028 Series

Downloads

CL013CN028-06 Configured Datasheet (PDF)
