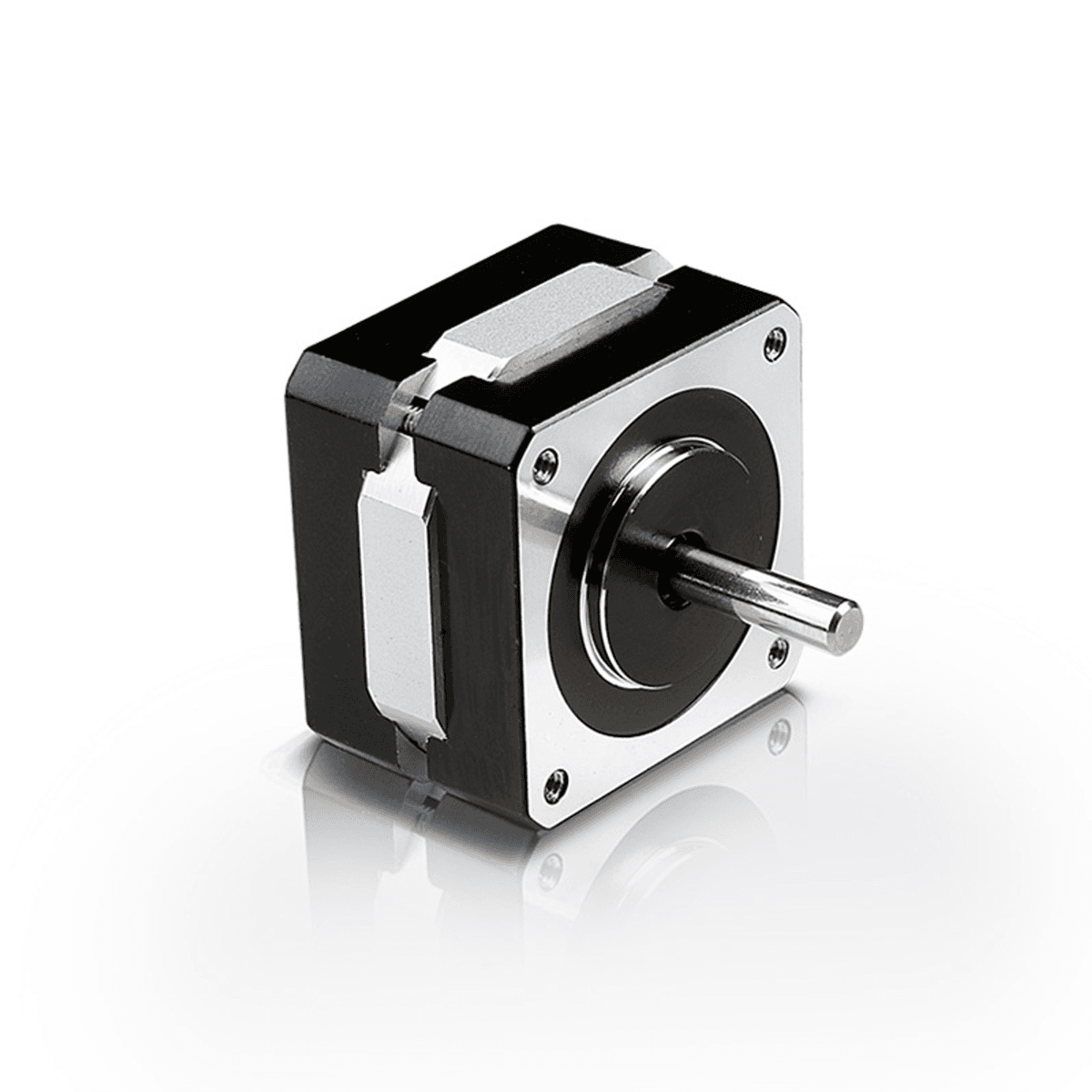

ZN417 Series
Hybrid Stepper Motor

  • NEMA 17 (1.650 in) Frame Size
  • 0.9° Step Angle
  • 1.100 in Length
  • 11.33 oz-in Holding Torque


ModelDIM. A (length) in
ZN417-11-181.100 in

Torque Curves


Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)

Motor Specifications

Base Motor Part NumberZN417-11-18
Step Angle0.9°
Frame Size1.650 in
Body Length 1.100 in
Current (AMP)0.8 AMP
Holding Torque 11.33 oz-in
Resistance10 ohm
Rotor Inertia0.07 oz-in²
Number of leads4
Weight0.311 lbs

Operating Specifications

Radial Play0.001 in @ 1 lbs
End Play0.003 in @ 3 lbs
Shaft Run Out0.002 TIR
Concentricity of Mounting Pilot to Shaft0.003 TIR
Perpendicularity of Mounting Pilot to Face0.003 TIR
Max Radial Load at Dimension "K" from mounting face6 lbs
Dimension "K"0.620 in
Max Axial Load6 lbs
Maximum Case Temperature176.00 °F maximum
Ambient Temperature-4 °F to 122.00 °F
Storage Temperature-4 °F to 212.00 °F
Humidity Range (%) 85% or less, non-condensing
Magnet Wire InsulationClass B 130 deg C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength500 VDC for 1 min

Features and Benefits

We’ve Reinvented the Step Motor

Conventional hybrid stepper motor utilizes a permanent magnet in the rotor. Our patented design uses a ring magnet in the stator instead. This drastically reduces the detent torque (unenergized drag torque) because the magnetic flux path is able to reach over the stator windings and go through only the outer edge of the rotor. Reducing detent torque improves accuracy, smooth operation and reduces noise. Best of all, modifying the magnet location does not change the dynamic torque.

Content image
Content image
Content image

Zen technology significantly reduces vibration without the use of external dampers: this results in extremely smooth and accurate motion.

Content image
Content image

Extreme accuracy

Z-Series motor maintains ±1.5 arc minutes error under 64x microstepping. Industry average can range from ±4.5 to ±18 arc minutes in 0.9° step motors.


Quiet Operation

By eliminating detent torque, the motor operates substantially quieter than regular hybrid stepper motor.


Vibration can cause serious problems when smooth and precise motion is critical. This is especially the case in the semiconductor industry where assemblies are getting exponentially smaller or medial applications where precision and accuracy could literally be a life or death matter.

Content image

Precision surgical

Content image


Video Overview


Lin Engineering can ensure that your hybrid stepper motor is optimized to deliver the required performance for your specific application, whether it’s increasing torque at a specific speed range, reducing noise or vibration, or optimizing for minimal power consumption, or making specific modification  to ensure proper and native fit within your assembly.

Content image

Customization Services Include:

  • Optimized Winding
  • Multiple Shaft Options
  • Customized Leads & Connectors
  • Customized Housings & Mountings
  • Bearings & Lubricants
  • Mechatronic Solutions
  • Environmental Protection
  • Drivers & Controllers, Encoders, Gearboxes & Accessories


Learn More About Motor Customizations & Optimizations

The result is that you’ll get a motor that is fully optimized for your specific applications and configured to seamlessly fit with your assembly. This reduces your product's complexity, and increases the speed and ease of the assembly of your final product.


Speak with one of our sales representatives about your specific application needs by filling out a request for a quote.
