X208 Series
X208-047-01
Hybrid Stepper Motor

Featured product media

Quick Facts

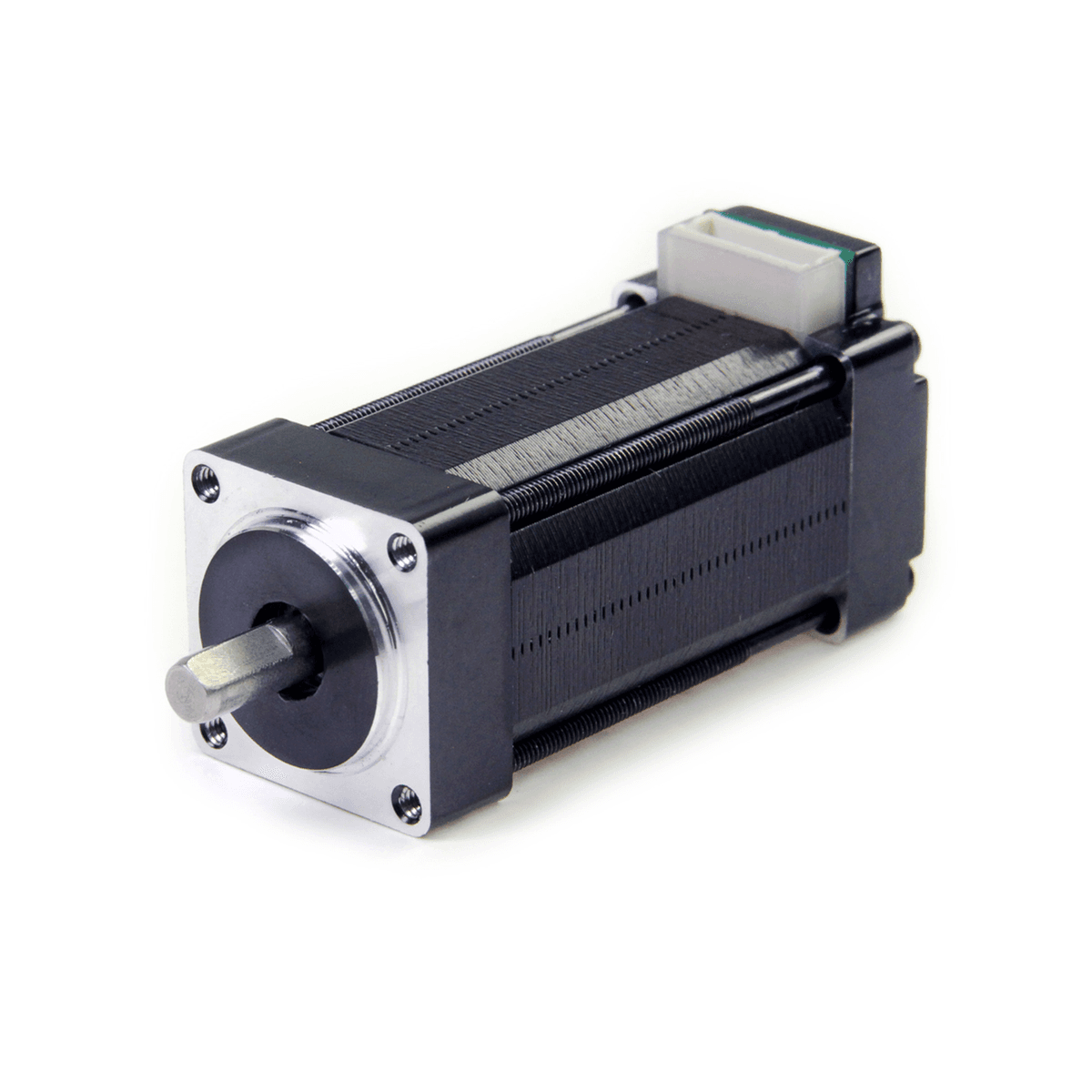

X208-047-01 Hybrid Stepper Motors

Specifications:
  • NEMA 08 (0.800 in) Frame Size
  • 1.8° Step Angle
  • 1.830 in Length
  • 8.21 oz-in Holding Torque
Features and Benefits:
  • High Torque Density
  • Small, Compact Size

Rapid Prototyping Motors

Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.

Configure
Card image

Configure your motor using the online configuration tool.

Test
Card image

Start testing within your application with minimum downtime.

Iterate
Card image

We’ll work with you to nail down the final design.

Dimensions

ModelDIM. A (length) in MAX
X208-047-011.830 in

Torque Curves

Speed

Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)

Motor Specifications

Base Motor Part NumberX208-047-01
Step Angle1.8°
Frame Size0.800 in
NEMA SizeNEMA 08
Body Length 1.830 in
Current (AMP)0.6 AMP
Holding Torque 8.21 oz-in
Resistance8 ohm
Rotor Inertia0.023 oz-in²
Number of leadsIC
ConnectionBipolar
Weight0.176 lbs

Operating Specifications

Radial Play0.001 in @ 1 lbs
End Play0.003 in @ 3 lbs
Shaft Run Out0.002 TIR
Concentricity of Mounting Pilot to Shaft0.003 TIR
Perpendicularity of Mounting Pilot to Face0.003 TIR
Max Radial Load at Dimension "K" from mounting face4.5 lbs
Dimension "K"0.500 in
Max Axial Load0.45 lbs
Maximum Case Temperature140.00 °F maximum
Ambient Temperature-4 °F to 122.00 °F
Storage Temperature-4 °F to 212.00 °F
Humidity Range (%) 85% or less, non-condensing
Magnet Wire InsulationClass B 130 deg C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength500 VDC for 1 min
