X208 Series - Rapid Prototyping MotorsX208-030-01Hybrid Stepper Motor
Quick Facts

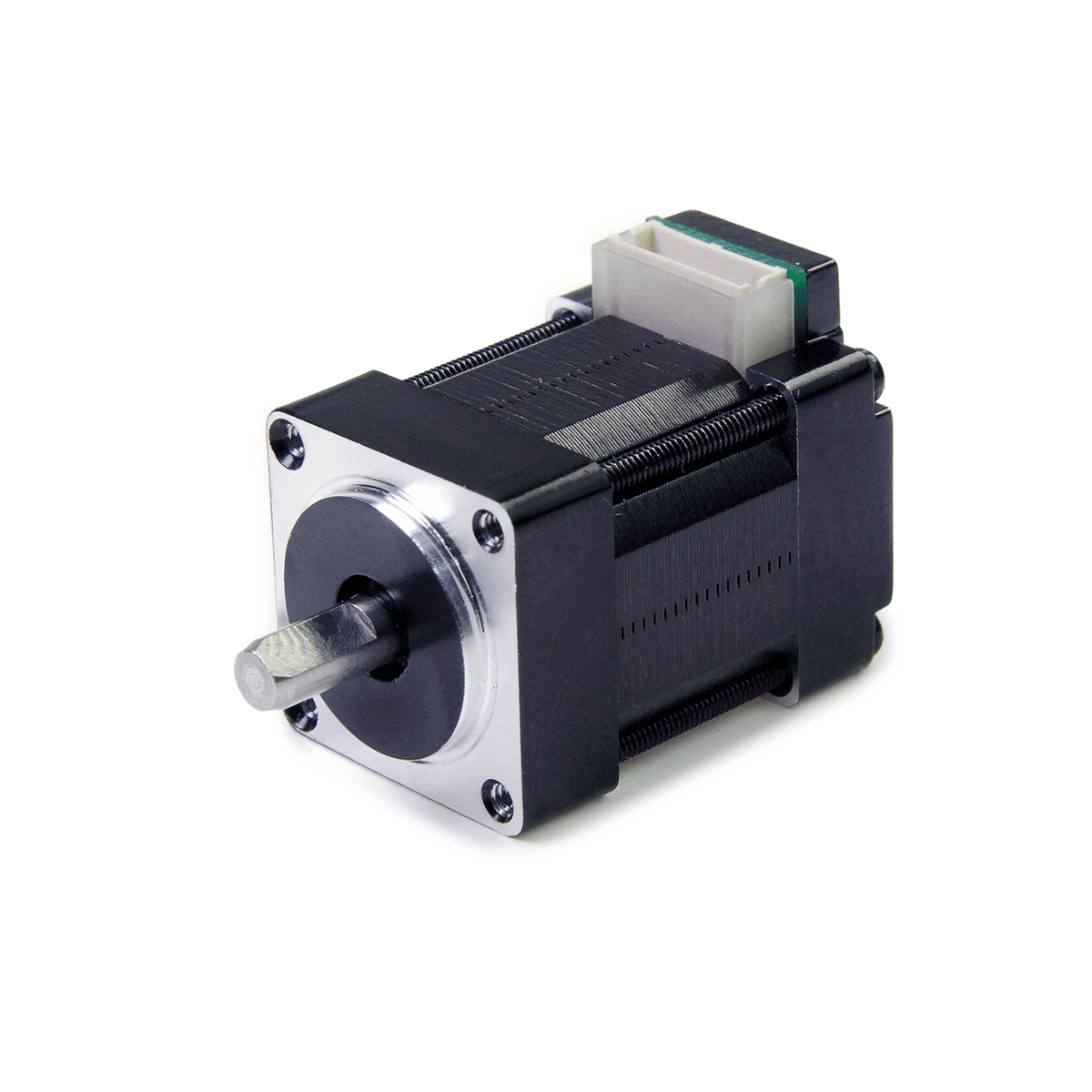

X208-030-01 Hybrid Stepper Motors
X208-030-01 Hybrid Stepper Motors
Features and Benefits:
- High Torque Density
- Small, Compact Size
Rapid Prototyping Motors
Start prototyping your next product fast. Our rapid prototyping motors provide a fast and convenient way for you to start prototyping your next product or design iteration with minimum downtime. Rapid prototyping motors are customizable and usually ship within 2-5 business days of ordering.
Dimensions
| Model | DIM. A (length) in |
|---|---|
| X208-030-01 | 1.160 in |
Torque Curves
Speed
RPM
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)
Motor Specifications
| Base Motor Part Number | X208-030-01 |
| Configured Motor Part Number | X208-030-01 |
| Step Angle | 1.8° |
| Frame Size | 0.800 in |
| NEMA Size | NEMA 08 |
| Body Length | 1.160 in |
| Current (AMP) | 0.7 AMP |
| Holding Torque | 4.25 oz-in |
| Resistance | 4.5 ohm |
| Rotor Inertia | 0.009 oz-in² |
| Number of leads | IC |
| Connection | Bipolar |
| Weight | 0.088 lbs |
Operating Specifications
| Radial Play | 0.001 in @ 1 lbs |
| End Play | 0.003 in @ 3 lbs |
| Shaft Run Out | 0.002 TIR |
| Concentricity of Mounting Pilot to Shaft | 0.003 TIR |
| Perpendicularity of Mounting Pilot to Face | 0.003 TIR |
| Max Radial Load at Dimension "K" from mounting face | 4.5 lbs |
| Dimension "K" | 0.500 in |
| Max Axial Load | 0.45 lbs |
| Maximum Case Temperature | 140.00 °F maximum |
| Ambient Temperature | -4 °F to 122.00 °F |
| Storage Temperature | -4 °F to 212.00 °F |
| Humidity Range (%) | 85% or less, non-condensing |
| Magnet Wire Insulation | Class B 130 deg C |
| Insulation Resistance | 100M Ohm at 500 VDC |
| Dielectric Strength | 500 VDC for 1 min |
