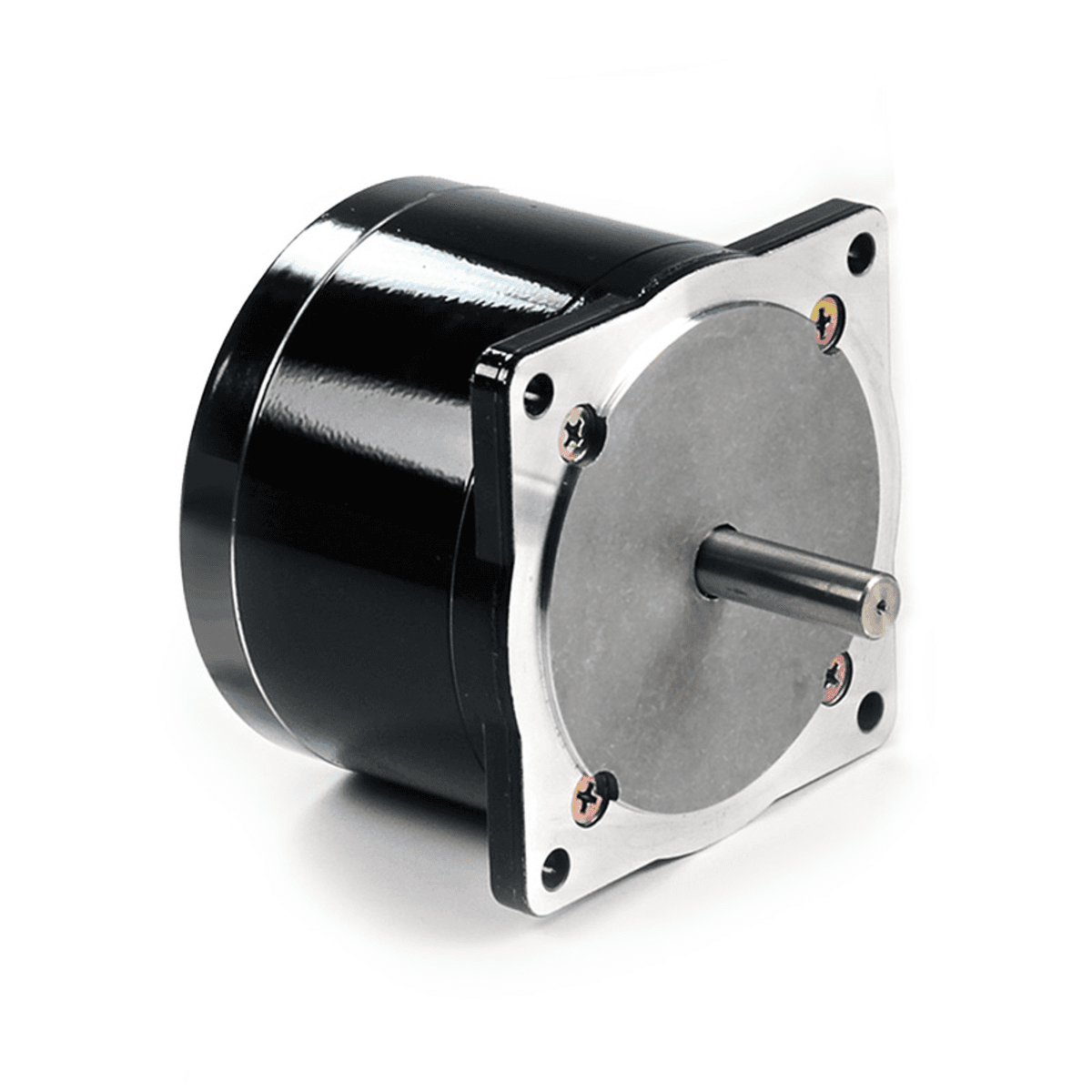

8618 Series8618S-01SHybrid Stepper Motor

  • NEMA 34 (3.390 in) Frame Size
  • false Step Angle
  • 2.500 in Length
  • 252.07 oz-in Holding Torque


ModelDIM. A (length) in
8618S-01S2.500 in

Torque Curves



Motor Specifications

Part Number8618S-01S
Frame Size3.390 in
Body Length 2.500 in
Current (AMP)4.27 AMP
Holding Torque 252.07 oz-in
Resistance0.4 ohm
Rotor Inertia3.1 oz-in²
Number of leads4
Weight3.20 lbs

Operating Specifications

Radial Play0.001 in @ 1.00 lbs
End Play0.003 in @ 3.00 lbs
Shaft Run Out0.002 TIR
Concentricity of Mounting Pilot to Shaft0.003 TIR
Perpendicularity of Mounting Pilot to Face0.003 TIR
Max Radial Load at Dimension "K" from mounting face24.00 lbs
Dimension "K"0.800 in
Max Axial Load22.00 lbs
Maximum Case Temperature176 °F maximum
Ambient Temperature-4 ° to 122 °F
Storage Temperature-4 ° to 212 °F
Humidity Range (%) 85% or less, non-condensing
Magnet Wire InsulationClass B 130 deg C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength900 VAC for 1 minute
