5709 SeriesHybrid Stepper Motor
- 0.9 Degree
- High Step Accuracy
- NEMA 23 (2.250 in) Frame Size
- 0.9° Step Angle
- 1.63 to 3.08 in Length
- 84.92 to 339.7 oz-in Holding Torque
Models
| Model # | NEMA size | Frame size | Step Angle | Connection Type | Length, in | Current AMP | Holding Torque, oz-in | Resistance | Inertia, oz-in² | Weight, lbs | # of Leads | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5709-042-16 | NEMA 23 | 2.250 in | 0.9° | Bipolar | 1.630 in | 1.6 AMP | 84.92 oz-in | 2.6 | 0.004 oz-in² | 0.066 lbs | 4 | Online |
| 5709-042-22 | NEMA 23 | 2.250 in | 0.9° | Bipolar | 1.630 in | 2.2 AMP | 84.92 oz-in | 1.39 | 0.004 oz-in² | 0.066 lbs | 4 | Online |
| 5709-057-15 | NEMA 23 | 2.250 in | 0.9° | Bipolar | 2.150 in | 1.5 AMP | 198.16 oz-in | 3.1 | 0.007 oz-in² | 0.095 lbs | 4 | Online |
| 5709-057-22 | NEMA 23 | 2.250 in | 0.9° | Bipolar | 2.150 in | 2.2 AMP | 212.31 oz-in | 1.6 | 0.007 oz-in² | 0.095 lbs | 4 | Online |
| 5709-079-15 | NEMA 23 | 2.250 in | 0.9° | Bipolar | 3.080 in | 1.5 AMP | 339.7 oz-in | 4.3 | 0.012 oz-in² | 0.095 lbs | 4 | Online |
| 5709-079-30 | NEMA 23 | 2.250 in | 0.9° | Bipolar | 3.080 in | 3 AMP | 339.7 oz-in | 1.1 | 0.012 oz-in² | 0.095 lbs | 4 | Online |
| 5709-079-50 | NEMA 23 | 2.250 in | 0.9° | Bipolar | 3.080 in | 5 AMP | 325.55 oz-in | 0.39 | 0.012 oz-in² | 0.095 lbs | 4 | Online |
Torque Curves
Speed
- 5709-042-16
- 5709-042-22
- 5709-057-15
- 5709-057-22
- 5709-079-15
- 5709-079-30
- 5709-079-50
Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)

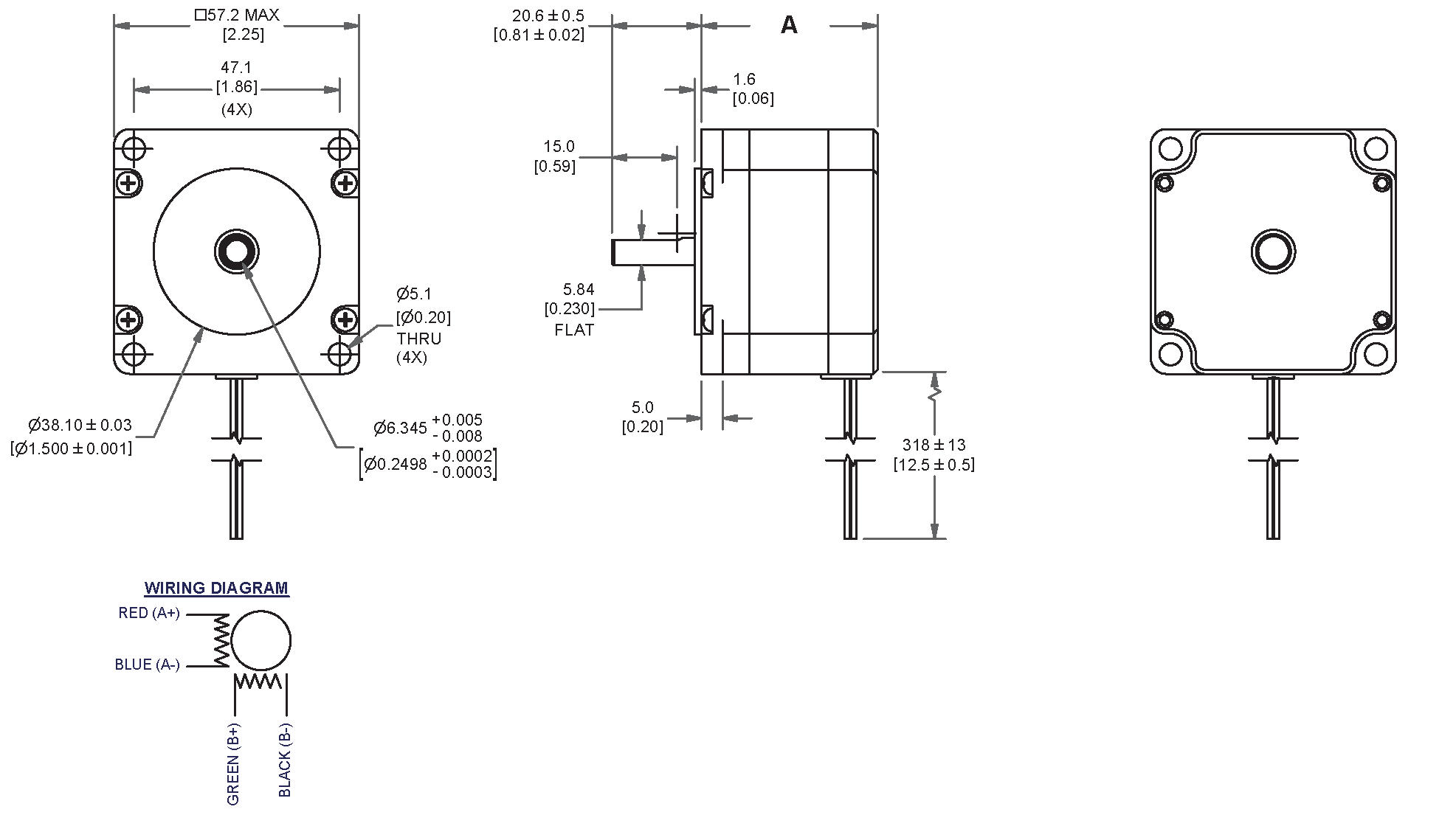

Dimensions
| Model | DIM. A (length) in |
|---|---|
| 5709-042-16 | 1.630 in |
| 5709-042-22 | 1.630 in |
| 5709-057-15 | 2.150 in |
| 5709-057-22 | 2.150 in |
| 5709-079-15 | 3.080 in |
| 5709-079-30 | 3.080 in |
| 5709-079-50 | 3.080 in |
Operating Specifications
| Radial Play | 0.001 in @ 1 lbs |
| End Play | 0.003 in @ 2 lbs |
| Shaft Run Out | 0.002 TIR |
| Concentricity of Mounting Pilot to Shaft | 0.003 TIR |
| Perpendicularity of Mounting Pilot to Face | 0.003 TIR |
| Max Radial Load at Dimension "K" from mounting face | 10.803 lbs |
| Dimension "K" | 0.550 in |
| Max Axial Load | 10.803 lbs |
| Maximum Case Temperature | 176.00 °F maximum |
| Ambient Temperature | -4 °F to 122.00 °F |
| Storage Temperature | -4 °F to 212.00 °F |
| Humidity Range (%) | 85% or less |
| Magnet Wire Insulation | Class B 130� |
| Insulation Resistance | 100M? at 500 VCD |
| Dielectric Strength | 500VAC for 1min |
Customizations & Optimizations
Lin Engineering can ensure that your hybrid stepper motor is optimized to deliver the required performance for your specific application, whether it’s increasing torque at a specific speed range, reducing noise or vibration, or optimizing for minimal power consumption, or making specific modification to ensure proper and native fit within your assembly.
Customization Services Include:
- Optimized Winding
- Multiple Shaft Options
- Customized Leads & Connectors
- Customized Housings & Mountings
- Bearings & Lubricants
- Mechatronic Solutions
- Environmental Protection
- Drivers & Controllers, Encoders, Gearboxes & Accessories
The result is that you’ll get a motor that is fully optimized for your specific applications and configured to seamlessly fit with your assembly. This reduces your product's complexity, and increases the speed and ease of the assembly of your final product.
